Setup and operation, A fast five-step process – Climax FF4000 FLANGE FACER User Manual
Page 4

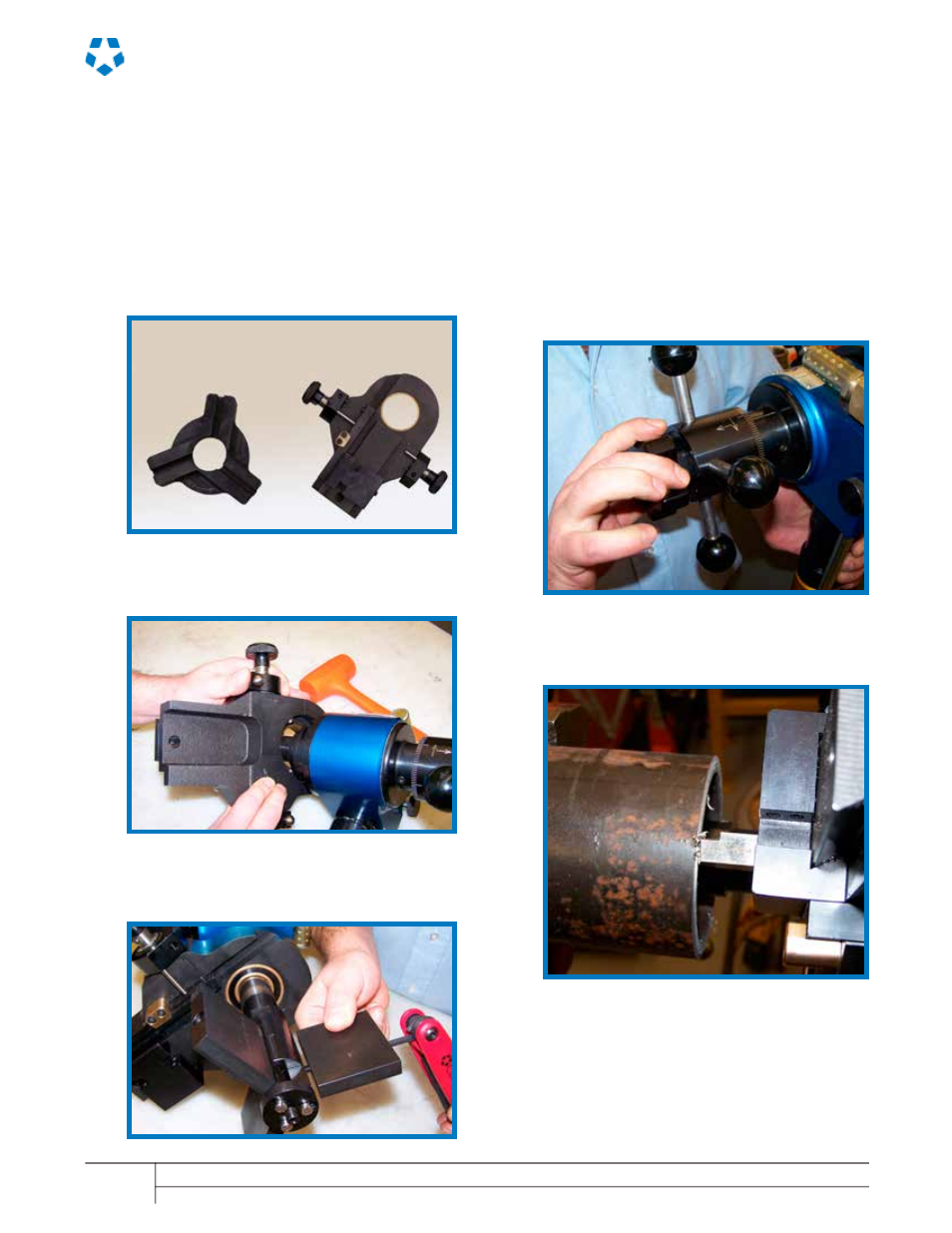

SETUP AND OPERATION
A Fast Five-Step Process
Setup of the FF4000 is quick and easy. The modular design and versatile setup options allows the chuck and main body to be set up separately.
An experienced operator can set up the machine in 10 minutes or less.
1
Choose from facing or beveling heads.
Place tool bit in tool slot and tighten set screw.
2
Align the 3 pin “Quick-Lock” system and tap with plastic
mallet to seat.
3
Select jaw set according to the ID diameter that
the machine will chuck into.
4
Place the machine in the bore. Hold to good start height,
and tighten hand nut to snug. Push down on hand nut.
While holding nut down, turn rod handle to tighten chuck.
5
Set tool to desired cutting depth, and begin machining.
Climax Portable Machining & Welding Systems Web site: climaxportable.com
Worldwide Phone:
1.503.538.2185 N. America Toll-Free: 1.800.333.8311 Fax: 1.503.538.7600 E-mail: [email protected]
