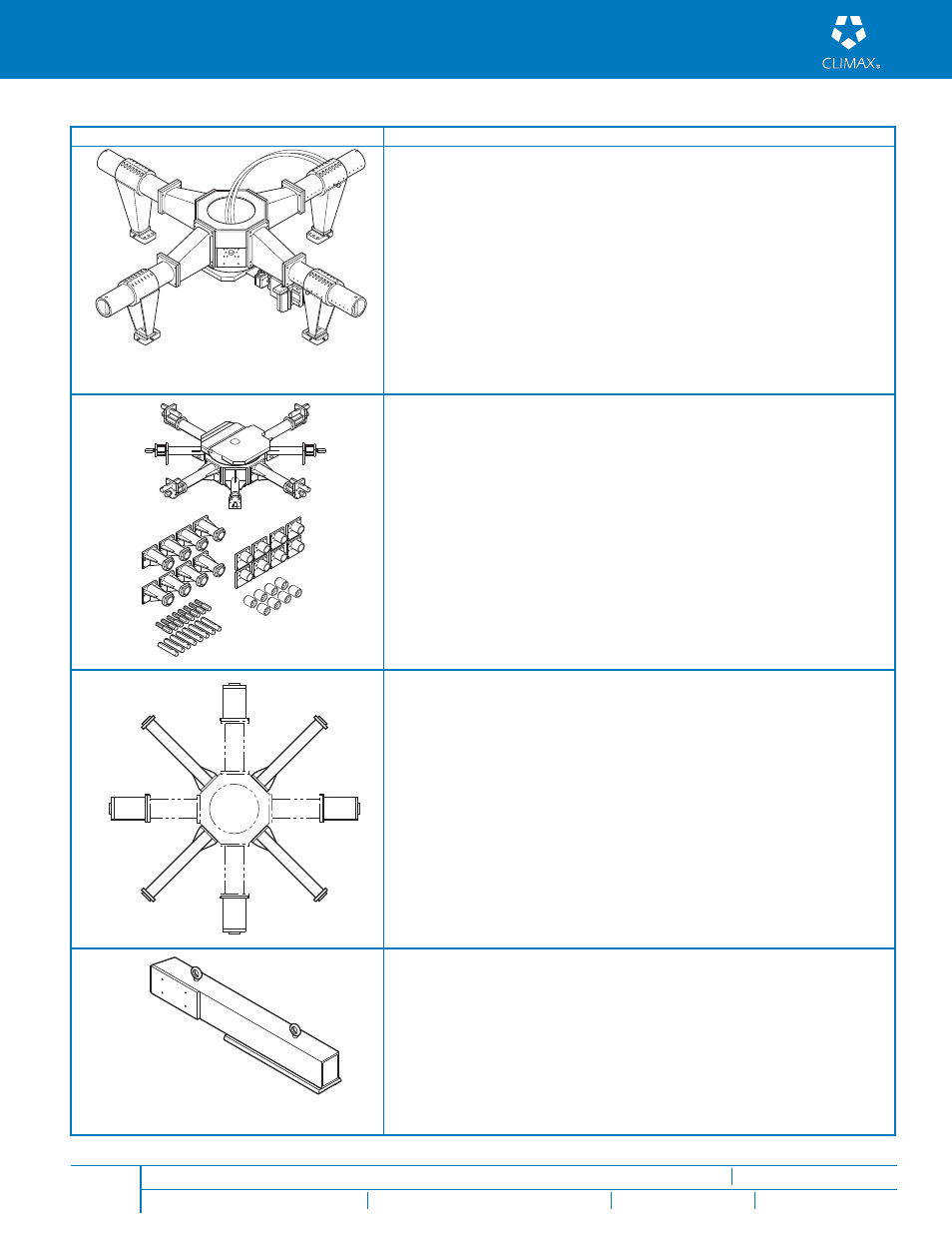

F F 8 0 0 0 C o m p o n e n t s a n d A c c e s s o r i e s
No. Description
19581 FF8000 pneumatic OD-mount flange facer
Complete flange facing machine. Mounts on work pieces with outside
diameters from 42.5 - 109.5 inches (1079.5 - 2781.3 mm). Faces 30 -
96 inch (762.0 to 2438.4 mm) diameter flanges. Machine comes
complete with main body, two air motors (2.9 hp/2.18 kW total),
pneumatic conditioning unit, chuck arms for 42.5 - 109.5 inches
(1079.5 to 2781.3 mm) ODs, short and long tool arm supports, swivel
tool holder, radial and vertical slide assemblies, short and long
counterweight arms with weights, tool kit, instruction manual, and
wooden storage crate.
41986 FF8000 hydraulic/pneumatic flange facer
As above with hydraulic drive/pneumatic feed.
17423 Chuck leg assembly (ID-mount conversion kit)
Includes short, medium, and long leg assemblies, leg end spacers,
short and long setup fingers, short and long jacking bolts, and
instructions.
Convert p/n 19581 & 41986 (FF8000 OD-mount flange facer
assembly) to an ID-mount machine for bore diameters from 30 - 96
inches (762.0 to 2438.4 mm).
This assembly is included with ID-mount machines (p/n 18447 or
41995).
39947 OD mount small diameter kit
Allows mounting down to 24.0 inch (609.6 mm) diameter.
OD mount only.
24421 ID chuck extension kit (ID-mount conversion extension kit) for
96 - 120 inch (2438.4 to 3048.0 mm) diameters (not shown)
Includes upper and lower leg assemblies only.
Use with part number 17423 (ID-mount conversion kit) to extend its
mounting range to 96 - 120 inches (2438.4 to 3048.0 mm).
Turning extension kit (p/n 33807) must be purchased separately to
face diameters up to 120 inches (3048.4 mm).
33807 Turning extension kit for 96 - 120 inches (2438.4 to 3048.0
mm) diameters.
Extension kit allows the flange facer to machine larger diameter.
Mounting chuck extension must be purchased separately to mount
inside 120 inch (3048.0 mm) diameter bores.
NOTE: Drawings are for reference only, are not
to scale, and may not represent actual product.
