Standard od-mount flange facer, Top view side view – Climax FF8000 PORTABLE FLANGE FACER User Manual
Page 5

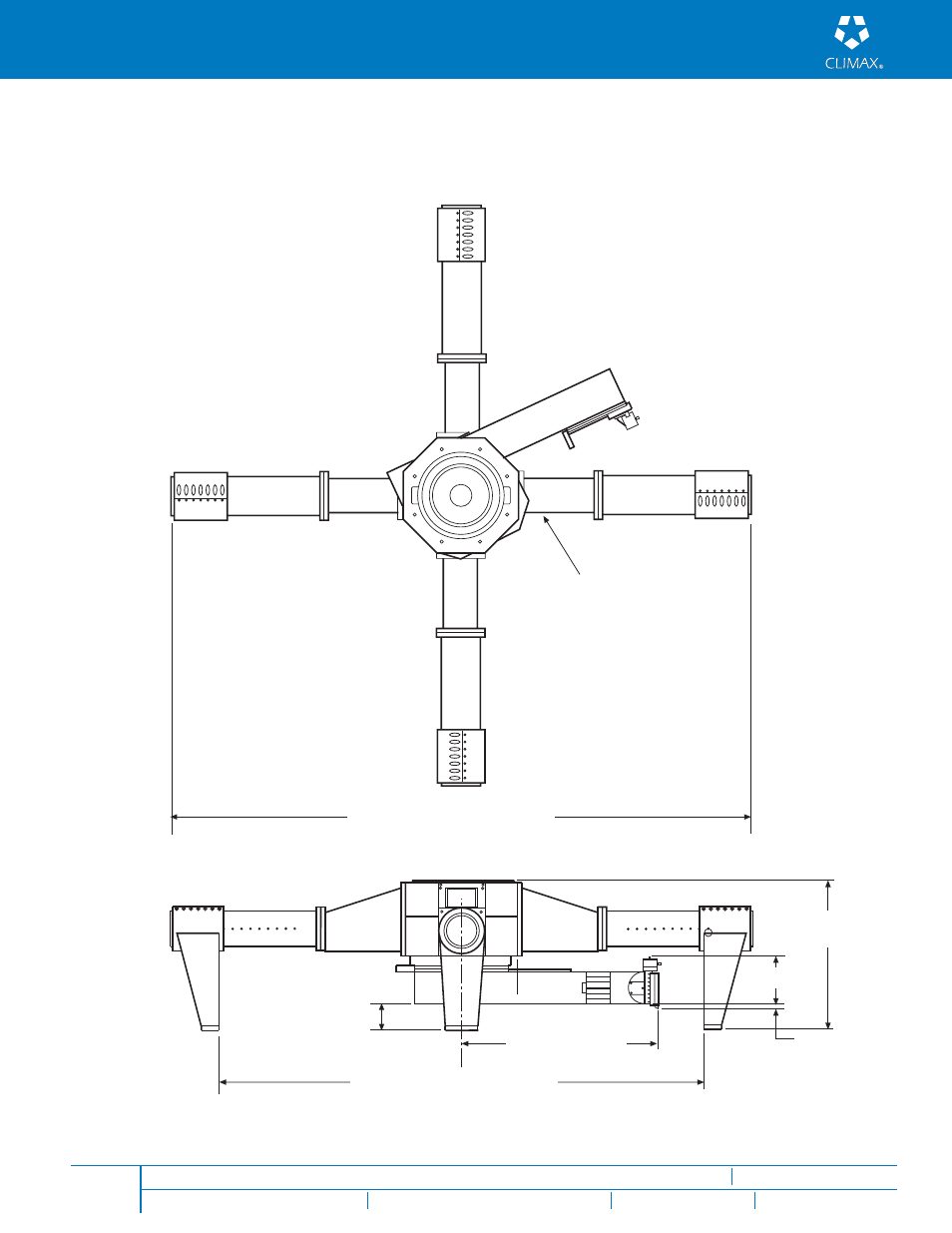

F F 8 0 0 0 O p e r a t i o n a l D i m e n s i o n s
92.5 (2349.5) without spacers
130.5 (3314.7) with spacers
Spacer
42.5 (1079.5) min. diameter
109.5 (2781.3) max. diameter
4.2 (106.7)
15 (381) min R
48 (1219) max R
13.2 (335.3)
33.25
(844.6)
4.0 (101.6)
max. travel
Standard OD-Mount
Flange Facer
Dimensions in Inch (mm)
Top View
Side View
92.5 (2349.5) without spacers
130.5 (3314.7) with spacers
Spacer
33.25
(844.6)
13.2 (335.3)
42.5 (1079.5) min diameter
109.5 (2781.3) max diameter
15 (381.0) min R
48 (1219.2) max R
4.2 (106.7)
4.0 (101.6)
max travel
For help contact: Climax Portable Machine Tools, Inc., 2712 E. 2nd St, Newberg, OR 97132 USA Web: www.cpmt.com
Worldwide Phone: 1.503.538.2185
USA/Canada Toll-Free: 1.800.333.8311
Fax: 1.503.538.7600
Email: [email protected]
