Climax VM1200 GATE VALVE GRINDING & LAPPING - Manual (Page 5)

Mrz-06 / VM1150-1200 Gate Valve Grinding & Lapping Machine Brochure.doc
Page 5 of 9
Model VM1200 (Range: 1.25”-8.0” (32 mm-200 mm) Diameter
P/N Description
Gate Valve Grinder VM1200S
Nominal working dia 1.25“ to 8“ (32 mm to 200 mm)
Submerging depth 16“(400 mm).
Included Components:
•
7 piece solid grinding disk set 2.0”(50 mm), 2.2”(55
mm), 2.4”(60 mm), 2.6”(65 mm), 2.9” (73 mm), 3.2”(80
mm) and 3.4”(85 mm) diameters.
•
Set of 2 planet arms 1.2”(30 mm) and 2.6”(65 mm) in
length.
•
Set of 2 planet wheels 3.9”(100 mm), 5.3” (135 mm)
diameters.
•
1 set of grinding discs 2.0”(50 mm) diameter
•
1 set of clamping equipment for mounting the machine
on valves with and without top flange.
•
Start up set of abrasives grain 100 and 500.
•
1 set of tooling.
•
Carrying cases with foam inlet for the machine and the
accessories.
420-00S-S32 VM1200S with electric motor 230 V / 50 Hz
420-00S-S33 VM1200S with pneumatic motor
420-00S-S35 VM1200S with electric motor 115 V / 60 Hz
Gate Valve Grinding and Lapping machine VM1200
Machine like VM1200S but with additional lapping equip-
ment:
•
Set of 3 solid lapping disks 2.2”(55 mm), 2.6”(65 mm),
3.2”(80 mm) diameters
•
2 sets of lapping disks 1.2”(30 mm) and 2.0”(50 mm)
diameters.
•
Lapping paste 10 and 30 µm.
420-00S-S22 VM1200 with electric motor 230 V / 50 Hz
420-00S-S23 VM1200 with pneumatic motor
420-00S-S25 VM1200 with electric motor 115 V / 60 Hz

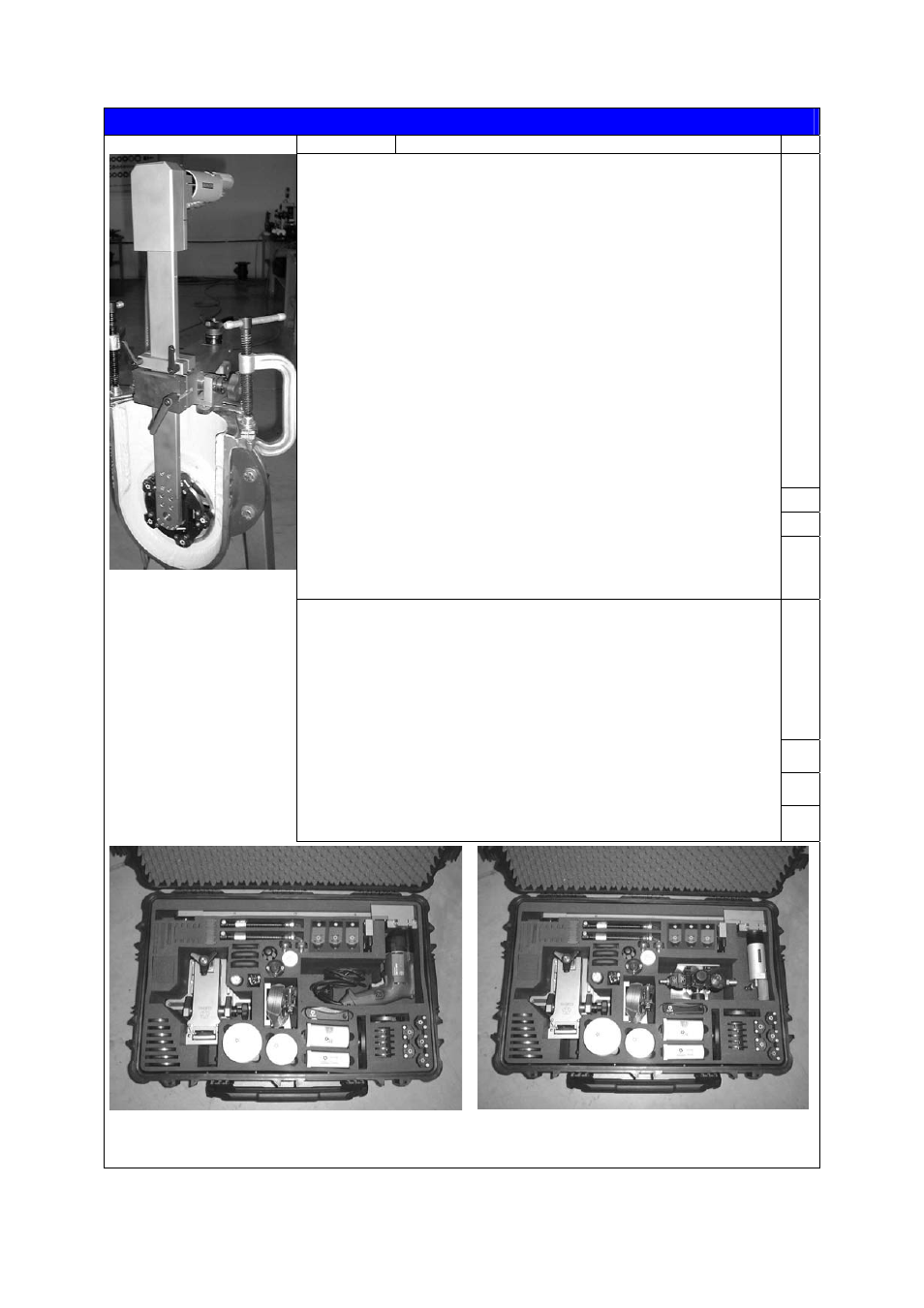

VM1200S with electric motor VM1200S with pneumatic motor
(standard kit does not include pneumatic
maintenance unit)
