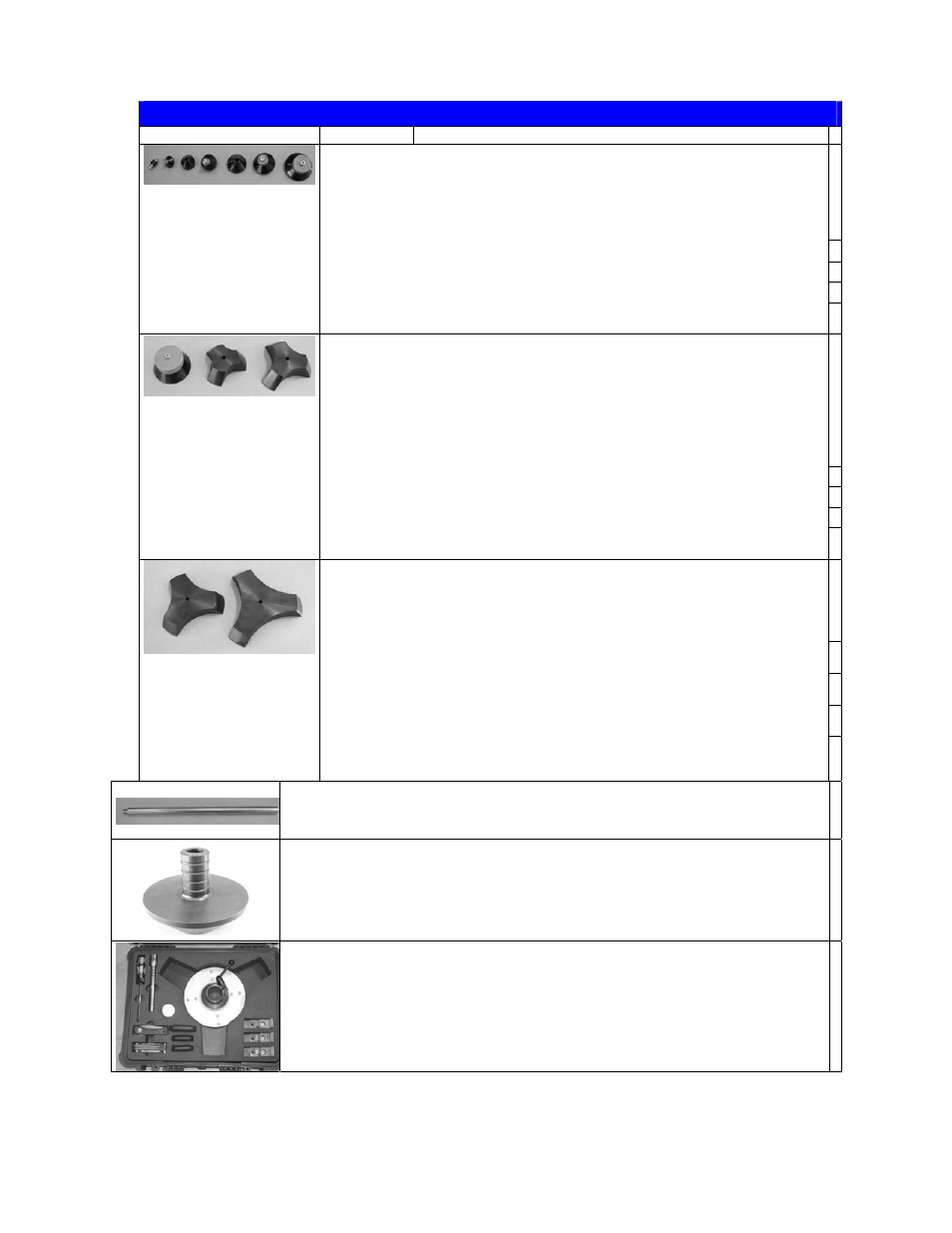

Tooling and accessories
P/N
Description
Grinding cones for 0.4’’ - 2’’ (10 mm-50 mm) diameter seats
• 7
pieces
grinding
cones
•
required number of securing nuts
•
100 pieces abrasives Grain 120 and Grain 500 each for every
dimension (total 1400 pieces)
320-61S-L21
Seat
angle 15°
(total 30°)
320-63S-L21
Seat
angle 30°
(total 60°)
320-64S-L21
Seat
angle 37.5°
(total 75°)
320-65S-L21
Seat
angle 45°
(total 90°)
Grinding cones for 2.5’’- 4’’ (65mm- 100 mm) diameter seats
•
1 grinding cone with securing nut for 2.5” (65.0 mm) diameter
•
2 segment grinding cones for 3.0” (80 mm) and 4.0” (100 mm)
diameters
•
100 pieces abrasives grain 120 and grain 500 each for 2.5” (65
mm) diameter
•
100 pieces rectangular abrasive pads grain 120 and grain 500
each for 3.0” (80 mm) and 4.0” (100 mm) diameters
320-61S-L22
Seat
angle 15°
(total 30°)
320-63S-L22
Seat
angle 30°
(total 60°)
320-64S-L22
Seat
angle 37.5°
(total 75°)
320-65S-L22
Seat
angle 45°
(total 90°)
Grinding cones for 5’’- 6’’(125mm – 150mm) diameter seats
•
2 segment grinding cones for 5” (125 mm) and 6” (150 mm)
diameters
•
100 pieces rectangular abrasive pads grain 125 and grain 500
each for 5” (125 mm) and 6” (150 mm) diameters
320-61S-L23
Seat
angle 15°
(total 30°)
320-63S-L23
Seat
angle 30°
(total 60°)
320-64S-L23
Seat
angle 37.5°
(total 75°)
320-65S-L23
Seat
angle 45°
(total 90°)
320-23S-N01
Grinding Spindle for submerging depth 18’’(450 mm)
To extend the submerging depth of VM2050C or VM2100C to 18’’(450 mm)
320-32S-L02
Centering cone to 8’’ (200 mm)
To extend the centering diameter of VM2050C or VM2100C to 8”( 200 mm)
320-33S-N01 3-jaw centering chuck
•
Centering diameter 3.2’’-16.9’’ (80 mm to 430 mm)
•
includes the complete chuck and a guiding bushing to accept the 1.0”
(25.0 mm) grinding spindle
•
comes in a case with foam inlet
Because CLIMAX is committed to product improvement, the machine you receive may be slightly different to the pictures above.
