6 ADL Operation
2. Gain Loss Layout for ADL
This display layout shows a ‘Lap Gain Loss’ bar graph at the top of the display
and also includes the ADL left, right centre, and bottom displays.
The Gain Loss bar graph is based on the ADL top numeric.
The normal ADL bar graph is not shown
The ADL Race/Practice/Warm-up display modes can be used to show
different channels.

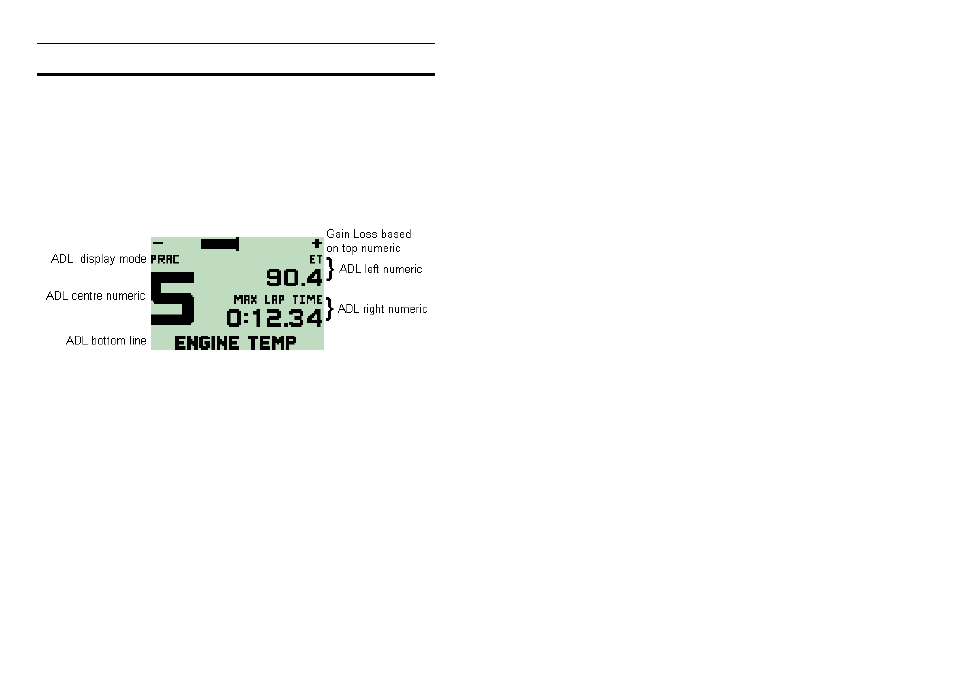

Example
Displayed Channels
The channels displayed should be configured in the ADL Display setup.
Enunciators
The MDD includes some enunciator combinations that are not available on the
ADL. These are listed in Appendix C: Special Enunciator Strings.
ADL Comms Configuration
In the ADL Inputs | Communications setup select the “MDD Transmit (Gain
Loss Display)” CAN template. Note that any vacant CAN Tab may be used.
