MoTeC ADL Operation 11
5. Vertical Bar Graph Layout for ADL
This layout displays 8 channels of data into vertical bar graphs, scaled within a
range set by the user. It is also possible to display two marker lines and
values.
This layout would typically be used to display 8 Exhaust Gas Temperatures,
but can be configured to display other channel values.
The layout is not based on the ADL display setup, and so will not change
when the ADL display mode changes.

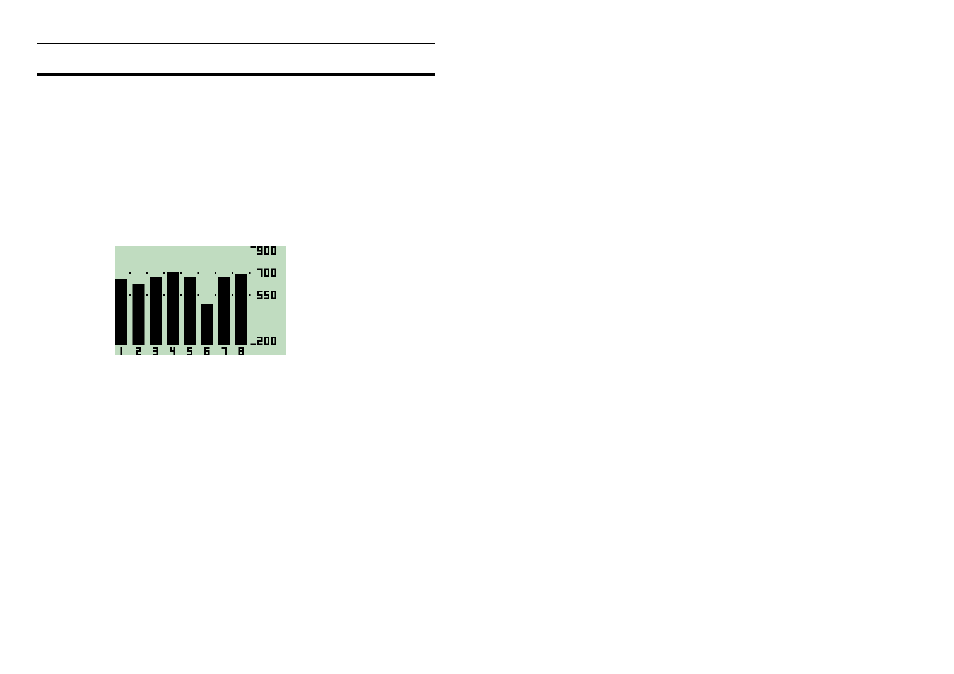

Example
The eight bar graph values and the two marker positions are scaled according
to the Maximum and Minimum values received from the ADL, within a range of
-999 to 9999.
Markers
Marker numerics move with the marker dots, and are shown if they are within
range and do not obscure the Maximum and Minimum numerics. A marker can
be removed from the screen by sending a marker value outside of the
displayed range.
ADL Comms Configuration
Unlike most other display layouts, the bar graph displays require two CAN
templates to be selected.
The first is ‘MDD Transmit (Vertical Bar Graph)’ which sets the display layout.
Marker 1
Marker 2
Minimum
Maximum
