10 ADL Operation
Detailed Setup

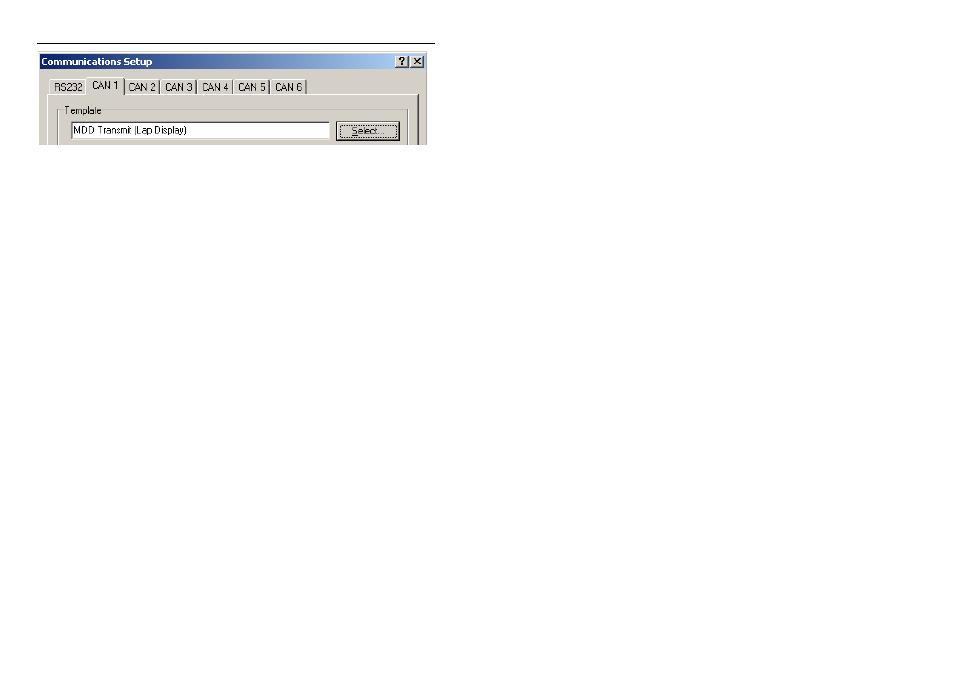

The following describes how the “Lap Display” layout treats the ADL display
setup. Note that slightly different Layout and Labelling will be used depending
on the setup as described below.
MDD Gain / Loss Bar Graph
If the ADL Right Numeric is visible and is in decimal format then the
gain/loss bar graph will be displayed. The range is
± 0.40 sec if
displaying a channel with resolution of 0.01 sec such as the “Lap Time
Gain/ Loss” channel. Note that this bar graph may be turned off by
leaving the Right Numeric setup blank.
MDD Upper Location
If the ADL Top Numeric value is visible then the value will be displayed
in the upper location. If the value format is decimal then the “Lap
Number” label will be displayed, otherwise “Fastest Lap” will be
displayed.
MDD Lower Location
If the ADL Left Numeric is visible then the value will be displayed in the
lower location. If the format is a time format (SS.HH or M:SS.HH) then
the “Lap Time” label will be displayed otherwise a label will not be
displayed.
If the ADL Right Numeric is visible and is NOT in decimal format and the
ADL Left Numeric is NOT visible the value will be displayed in the lower
location and “Predicted Lap” will be displayed. Note that this is normally
used with the ADL Left Numeric configured as an override so that when
the override value is removed the Predicted Lap Time is displayed.
MDD Bottom Location
The MDD bottom location mimics the ADL Bottom line.
