4. Lap Display Layout for ADL
The Lap Display layout shows Lap Time and Number and optionally, Predicted
Lap Time or Lap Time Gain Loss. It also mimics the Bottom line of the
standard ADL display.
Note that this display layout is an older style layout that was designed for a
special racing category. It is normally easier to use one of the other layouts.
The normal ADL Race/Practice/Warm-up display modes can be used to show
different channels.
Example:

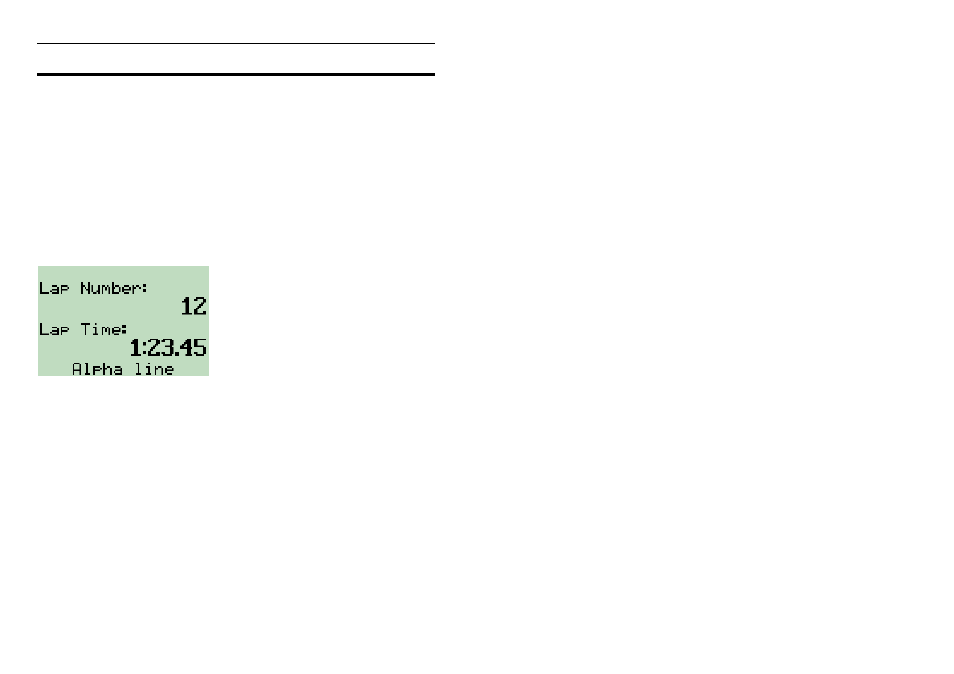

The example below shows Lap Time and Number and the Bottom Line. Other
display configurations are also possible.
Displayed Channels
The channels displayed should be configured in the ADL Display setup.
In the example above the ADL Display setup is configured as follows:
ADL Top Numeric: “Lap Number” with format = Decimal
ADL Left Numeric: “Lap Time” with format = SS.HH
Bottom Line: Will mimic the ADL bottom line
ADL Comms Configuration
In the ADL Inputs | Communications setup select the “MDD Transmit (Lap
Display)” CAN template. Note that any vacant CAN Tab may be used.
}
ADL Left Numeric and
l b l
}
ADL Top Numeric and label
ADL Bottom Line
