4 ADL Operation
voltages between 8V and 15V. When full brightness is selected then the
intensity will reduce when battery voltage is below 12V
1. Full ADL Display
This layout allows the MDD to mimic all standard features present on the ADL
display with the exception of the enunciator for the top numeric display.
The ADL Race/Practice/Warm-up display modes can be used to configure 3
different layouts.
The implementation of time formats on the MDD display is more flexible than
the ADL display – time channels with resolution of 1, 0.1 and 0.01 seconds
can be correctly displayed on the left and right numeric.

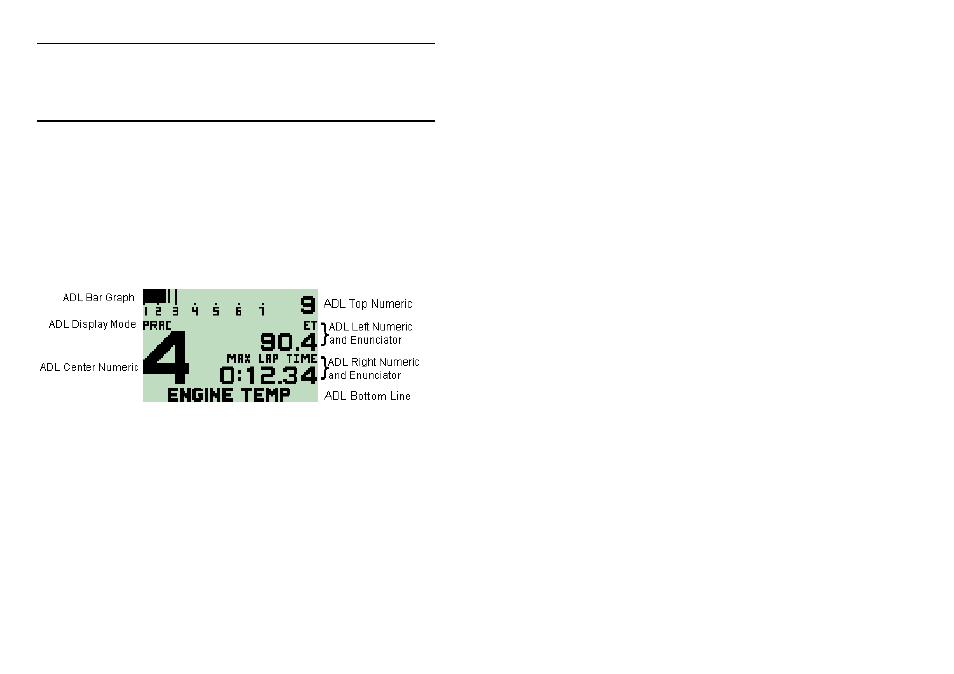

Example
Displayed Channels
The channels displayed should be configured in the ADL Display setup.
Enunciators
The enunciators displayed for the left and right numerics are taken from the
enunciators configured on the ADL. The MDD includes some enunciator
combinations that are not available on the ADL. These are listed in Appendix
C: Special Enunciator Strings.
ADL Comms Configuration
In the ADL Inputs | Communications setup select the “MDD Transmit (ADL
Display)” CAN template. Note that any vacant CAN Tab may be used.
