8 ADL Operation

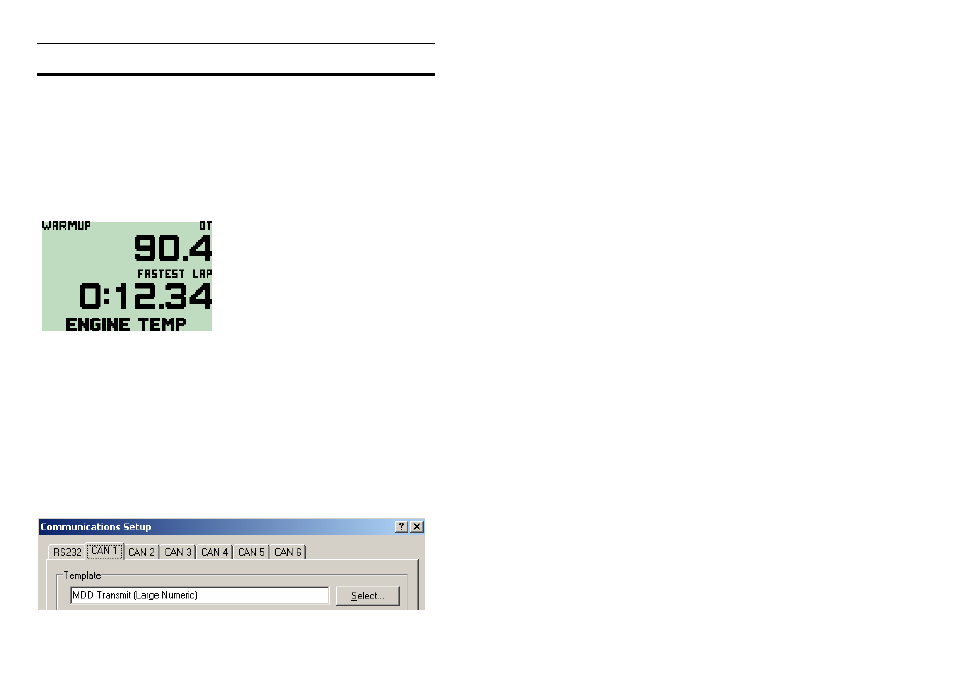

3. Large Numeric Layout for ADL
This layout displays two values in a large font for maximum readability. It also
displays the ADL bottom line.
It does not show the ADL bar graph, centre numeric or top numeric.
The ADL Race/Practice/Warm-up display modes can be used to show
different channels.
Example
Displayed Channels
The channels displayed should be configured in the ADL Display setup.
Enunciators
The MDD includes some enunciator combinations that are not available on the
ADL. These are listed in Appendix C: Special Enunciator Strings.
ADL Comms Configuration
In the ADL Inputs | Communications setup select the “MDD Transmit (Large
Numeric)” CAN template. Note that any vacant CAN Tab may be used.
ADL left numeric and enunciator
ADL Bottom Line
}
ADL right numeric and enunciator
}
ADL Display Mode
