MoTeC BR2 Operation Standalone) 33
BR2 Operation (Standalone)
This BR2 functionality is normally used when the MDD is only connected to a
BR2. To use this functionality when an M800 or ADL is present on the same
CAN bus as the MDD and BR2, the M800 and/or ADL must be configured so
that they do not communicate with the MDD.
Configuration
The BR2 must be configured (using the BR2 Configuration program) for a
CAN Connection, and must have ‘Advanced Configuration’ enabled. The MDD
will display lap times and fastest lap time for the first beacon in the Advanced
Configuration Settings list.
Operation

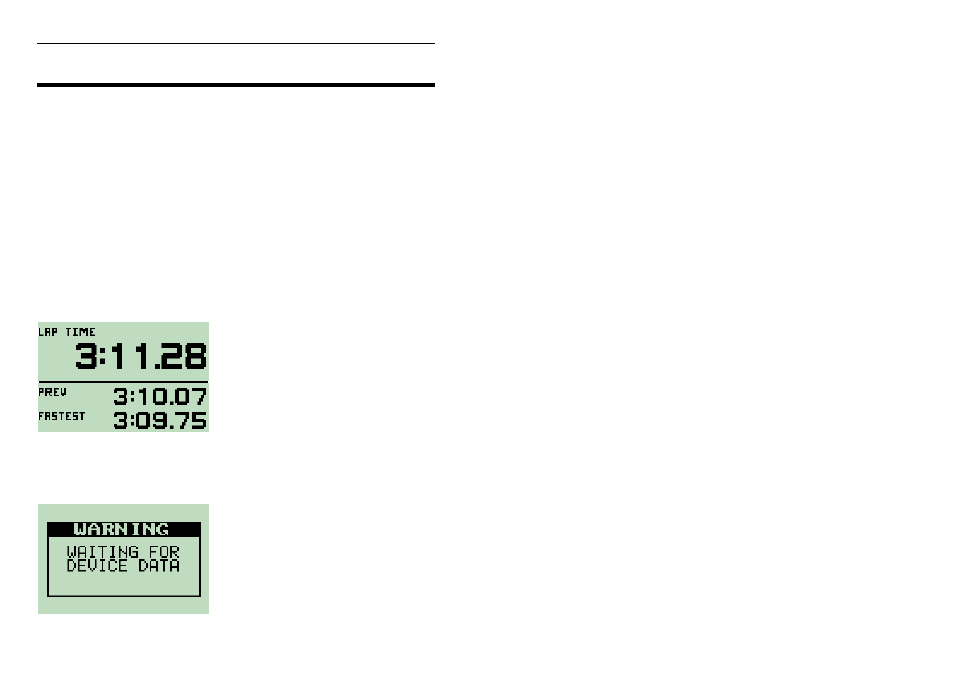

The following screen is displayed, and updated whenever the appropriate
beacon is passed:
All lap times are cleared when the button is pressed, on MDD power up, and if
communication to the BR2 is lost.
If communications to the BR2 is lost (or the BR2 is incorrectly configured), the
following screen is displayed:
