Page 33
33
Delay max
= [(Period * 0.99) - Width –10 ns], but not > 9.80000 s
Delay min
= (Width + 10 ns)
Double Pulse Transition Time Restrictions
Width must be > 1.3 * Leading Edge
(Delay - Width) must be > 1.3 * Trailing Edge
[Period - (Delay + Width)] must be > (1.3 * Trailing Edge)
Internal Trigger Burst Mode
(0.99 * Trig Rate) must be > (Period * Burst Count)

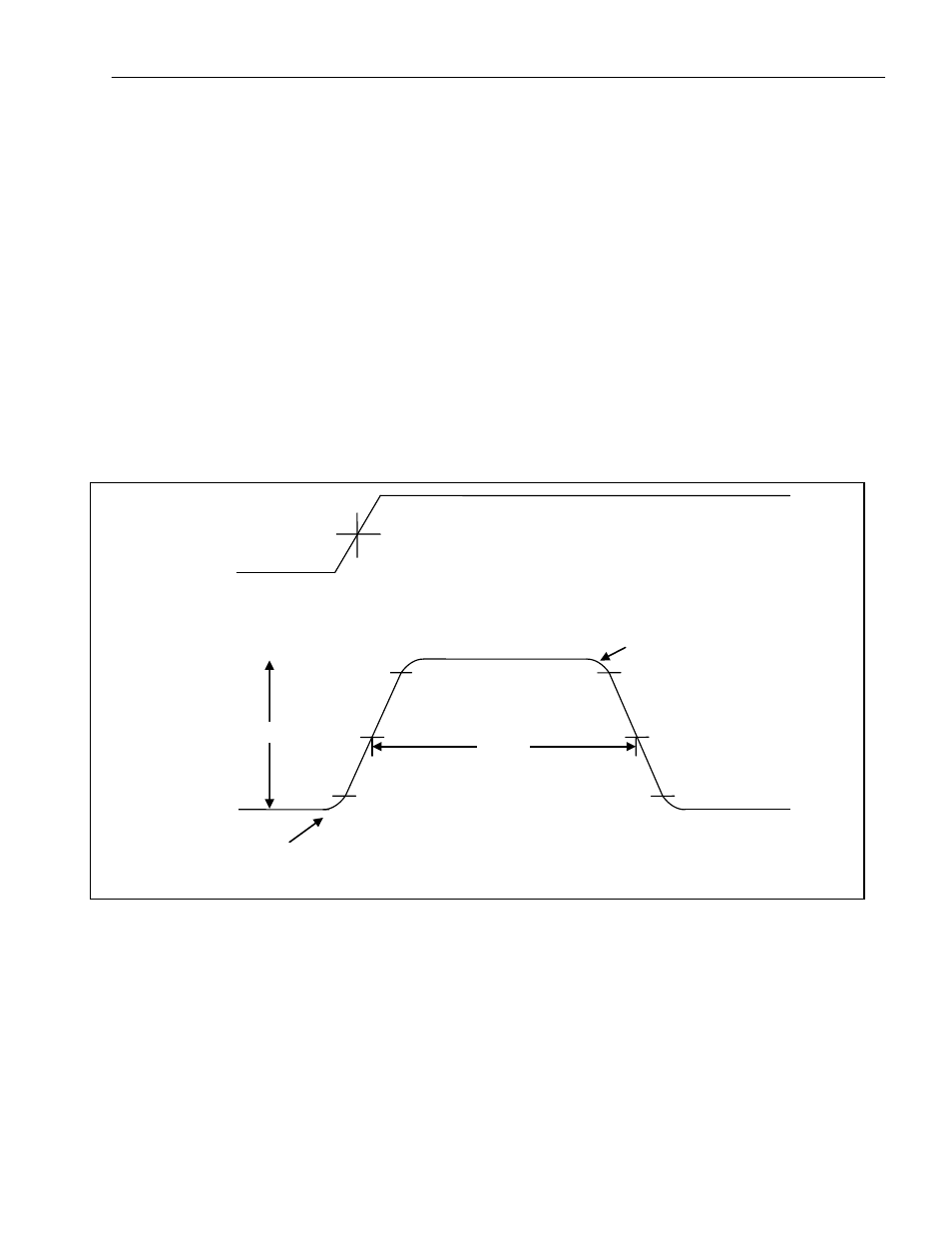

3.15 Pulse Definitions
Pulse Definitions – High and Low Levels
- -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- -
-
-
-
-
- -
-
-
-
-
- - - - - - - - - - - - - - - - -
TRIG OUTPUT
50%
HIGH LEVEL
LOW LEVEL
AMPLITUDE 50%
90%
10%
50%
90%
10%
WIDTH
3
rd
Corner
1
st
Corner
LEADING
EDGE
TRAILING
EDGE
