18

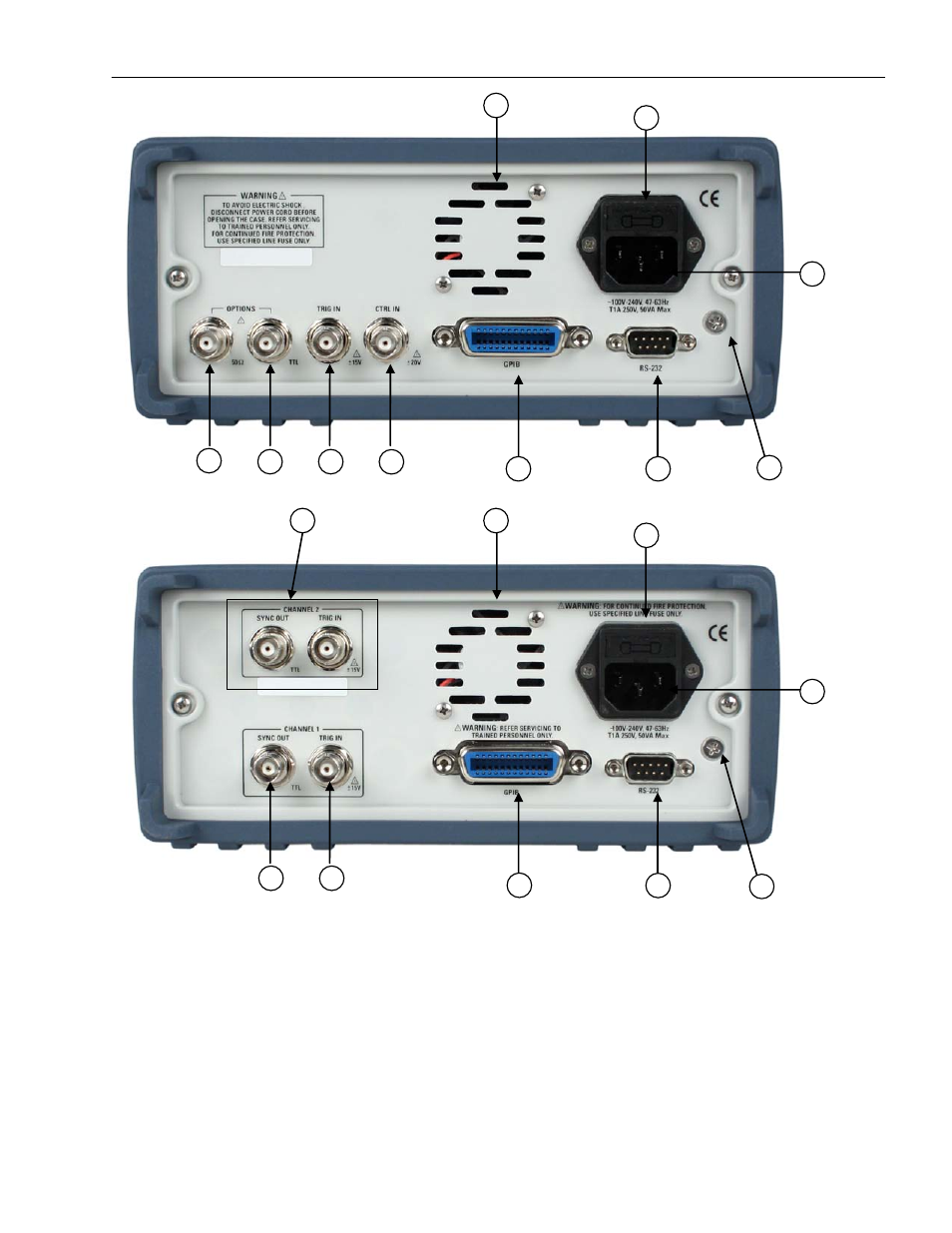

Figure 3.3 - Back Panel View
1. Options 50
Ω - Reserved for future use.
2. Options TTL - Reserved for future use.
3. Trig In - Use this connector to apply an external trigger or gate signal, depending on the waveform
generator setting, to the generator. Maximum input is ± 15 V.
4. CTRL IN - Not used
5. GPIB Interface - Use to interface with a computer via GPIB for remote communication.
Model 4034
12
11 3
8
10
9
5 6 7
Model 4033
1 3 4
5 6
8
10
9
2
7
