10

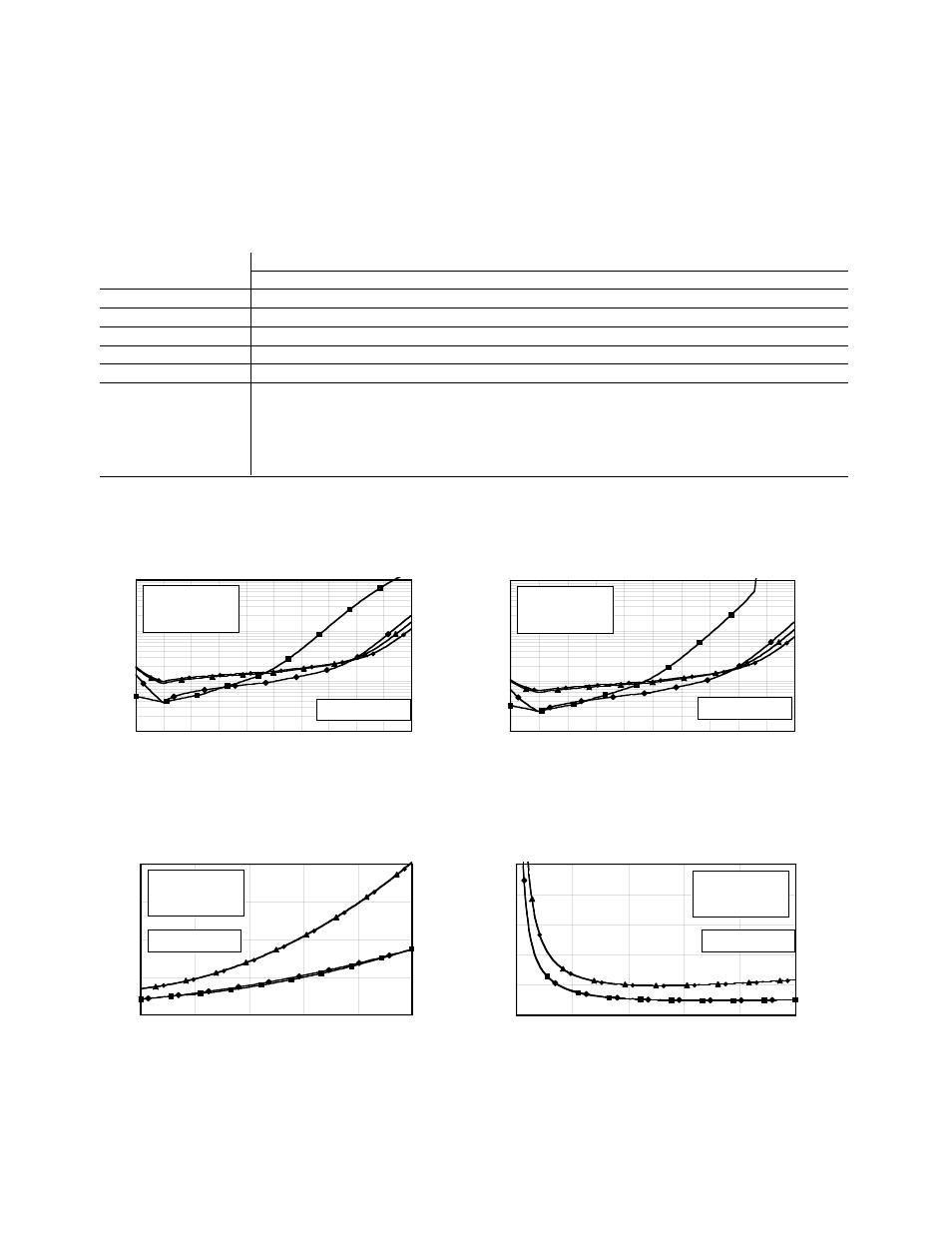

Corrected system performance with 3.5 mm connectors
Standard configuration and standard power range (E8362A)
Applies to E8362A PNA Series analyzer, 85052B (3.5 mm) calibration kit, 85131F flexible test port cable
set, and a full two-port calibration. (Specifications apply over environmental temperature of 23° ±3°C,
with less than 1°C deviation from calibration temperature.)
Description Specification (dB)
45 MHz to 500 MHz 500 MHz to 2 GHz 2 to 10 GHz 10 to 20 GHz
Directivity 48 48 44 44
Source match 40 40 31 31
Load match 48 48 44 44
Reflection tracking ±(0.003 + 0.2/°C) ±(0.003 + 0.2/°C) ±(0.006 + 0.2/°C) ±(0.006 + 0.2/°C)
Transmission tracking ±(0.014 + 0.2/°C) ±(0.014 + 0.2/°C) ±(0.057 + 0.2/°C) ±(0.065 + 0.2/°C)
Crosstalk (reflection port to < -85 < -100 < -110 < -100
transmission port: short
circuits at both ports;
isolation calibration
applied)
Transmission uncertainty (specifications)
Reflection uncertainty (specifications)
Magnitude
0.01
0.1
1
10
-90 -80 -70 -60 -50 -40 -30 -20 -10 0 10
Transmission coefficient (dB)
Uncertainty (dB)
E8362A full 2-port cal using 85052B
S11 = S22 = 0
Source power = -12 dBm
■ 45 MHz to 500 MHz
◆ 500 MHz to 2 GHz
▲ 2 GHz to 10 GHz
● 10 GHz to 20 GHz
Phase
0.1
1
10
100
-90 -80 -70 -60 -50 -40 -30 -20 -10 0 10
Transmission coefficient (dB)
Uncertainty (degrees)
E8362A full 2-port cal using 85052B
S11 = S22 = 0
Source power = -12 dBm
■ 45 MHz to 500 MHz
◆ 500 MHz to 2 GHz
▲ 2 GHz to 10 GHz
● 10 GHz to 20 GHz
Magnitude
0
0.01
0.02
0.03
0.04
0 0.2 0.4 0.6 0.8 1
Reflection coefficient (linear)
Uncertainty (linear)
E8362A with 85052B
S21 = S12 = 0
Source power = -12 dBm
■ 45 MHz to 500 MHz
◆ 500 MHz to 2 GHz
▲ 2 GHz to 10 GHz
● 10 GHz to 20 GHz
Phase
0
2
4
6
8
10
0 0.2 0.4 0.6 0.8 1
Reflection coefficient (linear)
Uncertainty (deg)
E8362A with 85052B
S21 = S12 = 0
Source power = -12 dBm
■ 45 MHz to 500 MHz
◆ 500 MHz to 2 GHz
▲ 2 GHz to 10 GHz
● 10 GHz to 20 GHz
