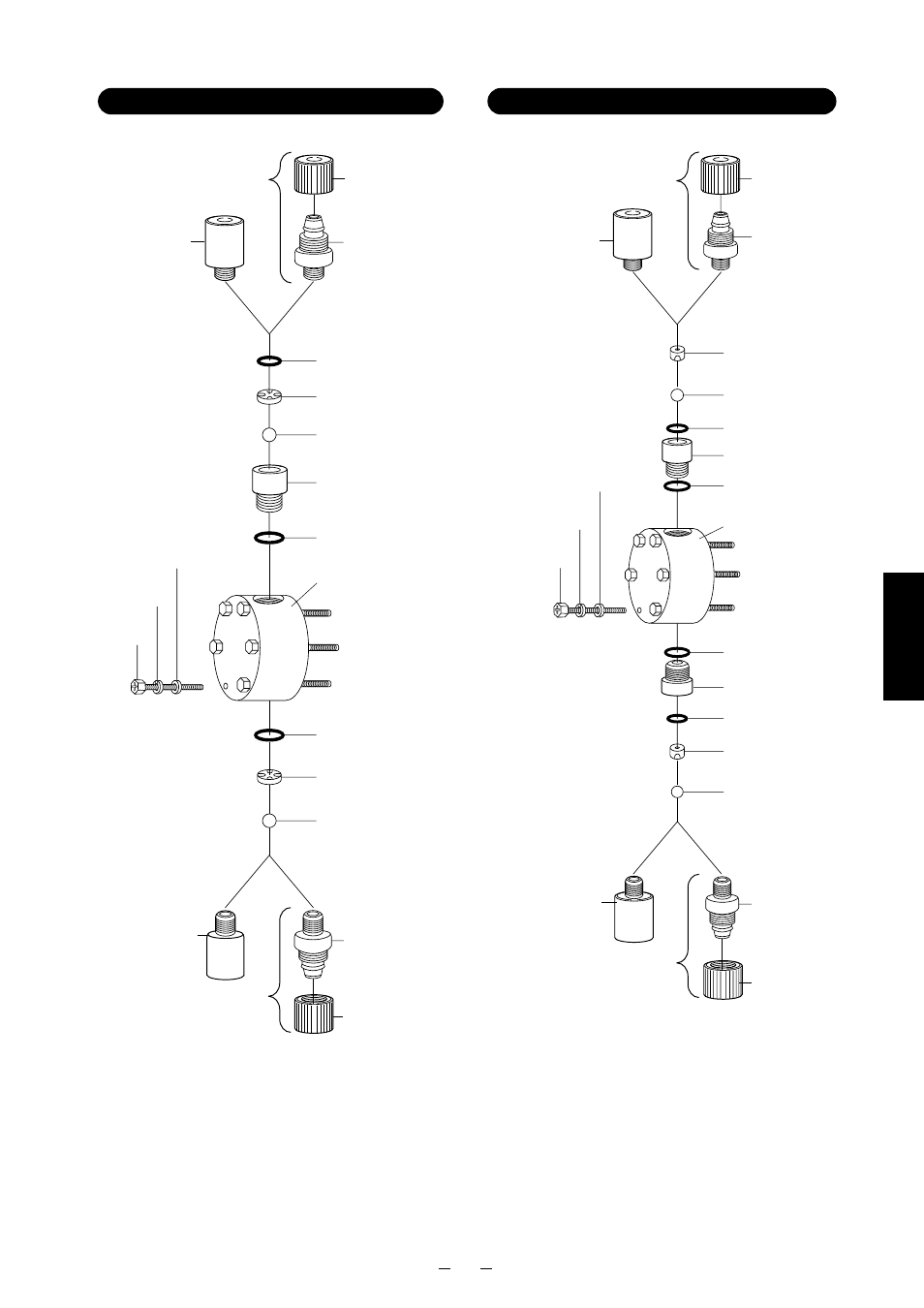

Maintenance
Hose joint
O-ring*
Valve stopper
Check ball*
Discharge side
lower joint
O-ring*
Pump head
O-ring*
Valve stopper
Check ball*
Hose joint
Washer
Spring
washer
Hexagon
head bolt
Hose nut
Hose nut
FNPT1/2
Discharge
side joint
12 x 15PTFE
FNPT1/2
Suction side
joint
12 x 15PTFE
Washer
Spring washer
Hexagon
head bolt
Hose nut
Hose joint
Ball guide
Ball guide
Check ball*
Check ball*
Hose joint
Hose nut
O-ring*
1st joint
1st joint
O-ring*
O-ring*
O-ring*
Pump head
FNPT1/2
Joint
12 x 15PTFE
FNPT1/2
Joint
12 x 15PTFE
PZiG-300/500/700-FTCT
PZiG-1000/1300-FTCT
*Consumable
