Operation
● Basic operation
In the manual mode, the discharge volume can be set
by the following methods:
• By changing the stroke spm (1 to 300 spm)
• By changing the ratio (1 to 100%)
• By changing the discharge volume (0.1 to maxi-
mum discharge volume mL/min)
● Purpose of use
The manual mode is used for the following purposes:
• Regular operation
• Test operation during pump installation, for exam-
ple
• Provisional operation during an abnormality (e.g.
signals are not output) in automatic operation

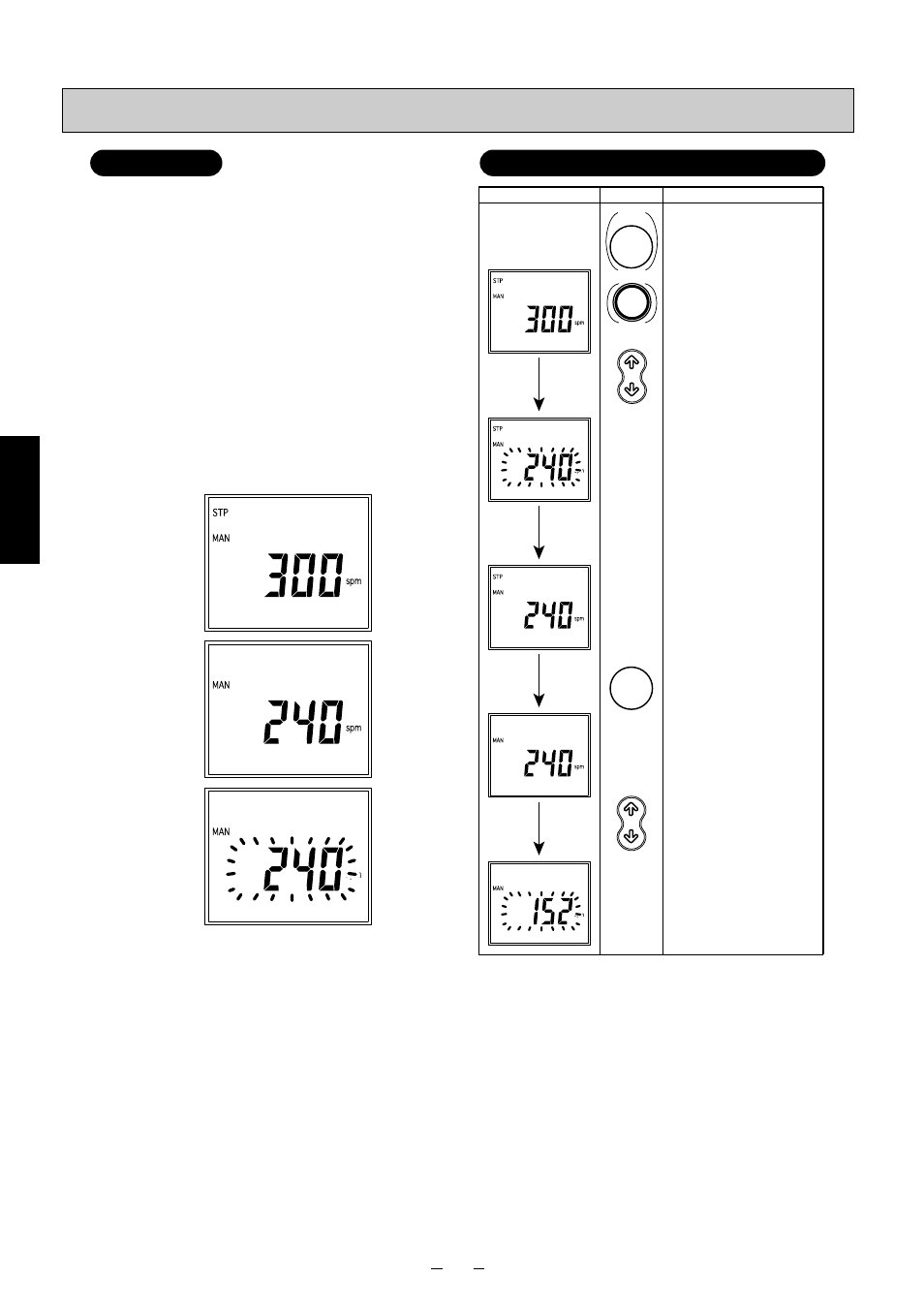

● Operation panel display
Manual Mode
Setting the Discharge Volume
Display Operation Explanation
In the manual mode, the number of
strokes can be changed during pump
operation or when pump operation
has stopped.
In other modes, stop pump operation
by the STOP key, and press the
MODE key several times to set the
manual mode.
Default is 300 spm.
Press the UP/DOWN key to set the
number of strokes within the range 0
to 300 spm. (in single step increments)
The number of strokes (spm) blinks.
If you do not touch any of the keys
for two seconds after setting the
number of strokes, the numerical
value you entered is determined, and
the number of strokes stops blinking
and lights.
This completes changing of the
setting value.
If the pump has stopped, press the
START key to start operation.
The pump enters the run mode, and
STP goes out.
* If the screen on the left is displayed
during pump operation, the number
of strokes can be changed.
Press the UP/DOWN key to change
the number of strokes.
If you do not touch any of the keys
for two seconds after changing the
number of strokes, the change is
reflected.
START
STOP
START
STOP
MODE
Setting Manual Mode (changing the number of strokes)
During pump
stoppage
During pump
operation
During setup
●External stop signal
Basically, there is no need to supply signals from the
outside in the manual mode. However, operation can
be paused by a stop input (continuous signal) from the
outside.
