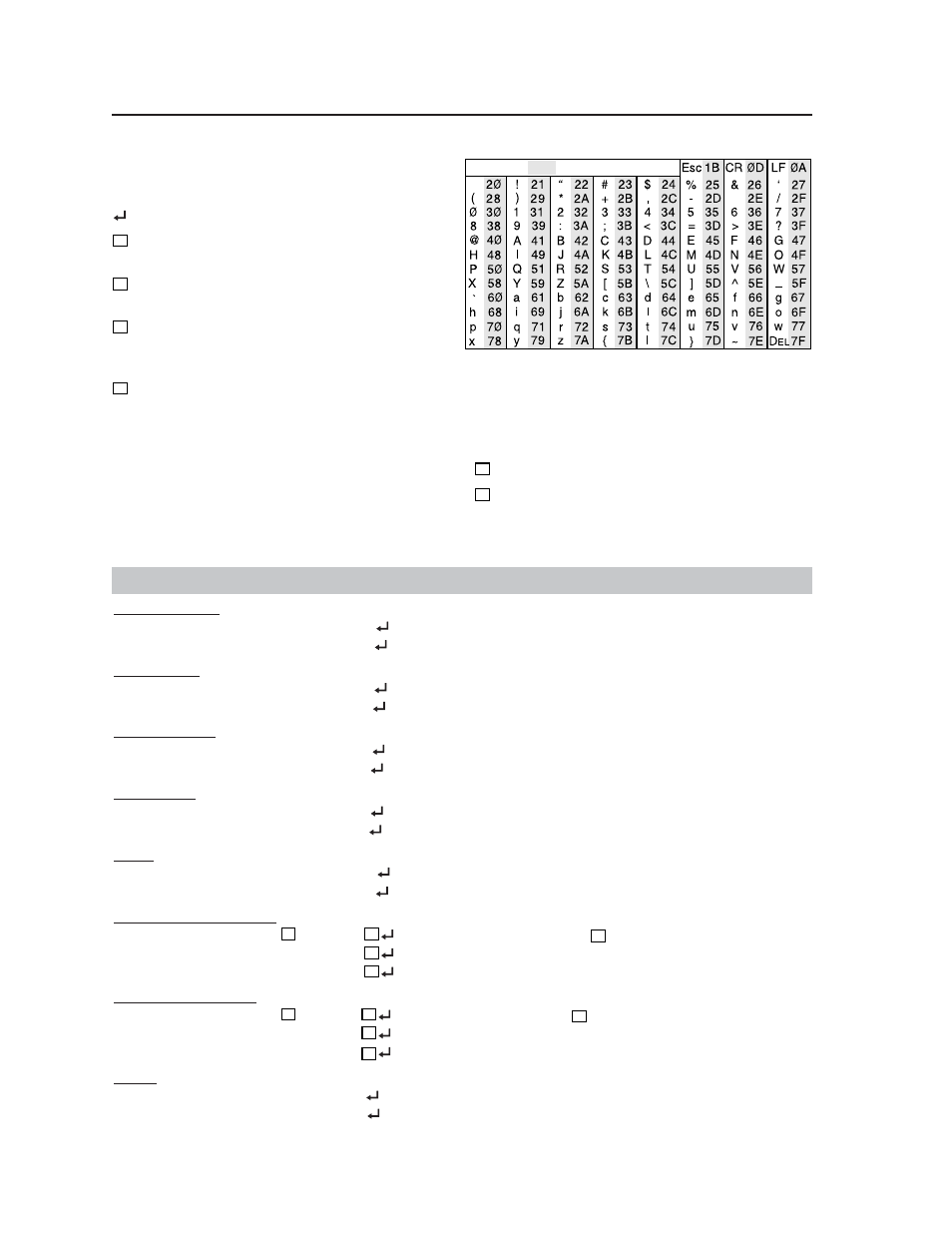

background image

Serial Communication, cont’d

VSC 200/200D/300/300D Serial Communication

4-4

ASCII to HEX Conversion Table

Space

Command/response table

Symbol Definitions:

= CR/LF, • = space

X1

= Horizontal

VSC 200: 1–4

filtering level

VSC 300: 1–8

X2

= Vertical

VSC 200: 0–4

filtering level

VSC 300: 0–9

X3

= Input

1 = S-video
2 = RGB
3 = Component

X4

=Output

1 = NTSC
2 = PAL
3–8

Scaled output resolutions (VSC 300 only)
3 = 640x480
4 = 800x600
5 = 832x624
6 = 852x480
7 = 1024x768
8 = 720p

COMMAND

ASCII RESPONSE

DESCRIPTION

Horizontal Shift
Shift Right

{H

Hph+

Shift image right one step

Shift Left

}H

Hph–

Shift image left one step

Vertical Shift
Shift Down

{/

Vph+

Shift image down one step

Shift Up

}/

Vph–

Shift image up one step

Horizontal Size
Increase Size

{:

Hsz+

Increase horizontal size by one step

Decrease Size

}:

Hsz–

Decrease horizontal size by one step

Vertical Size
Increase Size

{;

Vsz+

Increase vertical size by one step

Decrease Size

};

Vsz–

Decrease vertical size by one step

Zoom
Zoom In

{+

Zom+

Increase image size by one step

Zoom Out

}+

Zom–

Decrease image size by one step

Horizontal Filter (Detail)
Specific Value

X1

D

Dhz

X1

Select horizontal filter

X1

(Dhz)

Increment Up

{D

Dhz

X1

Select next higher horizontal filter (Dhz + 1)

Increment Down

}D

Dhz

X1

Select next lower horizontal filter (Dhz – 1)

Vertical Filter (Detail)
Specific Value

X2

d

Dvt

X2

Select vertical filter

X2

(Dvt)

Increment Up

{d

Dvt

X2

Select next higher vertical filter (Dvt + 1)

Increment Down

}d

Dvt

X2

Select next lower vertical filter (Dvt – 1)

Freeze
Enable

F

Frz1

Set freeze mode to On (freeze current displayed image)

Disable

f

FrzØ

Set freeze mode to Off

X5

= 1 = On, 0 = Off

X6

= xxx.xx

Hrt = Horizontal rate = kHz
Vrt = Vertical rate = Hz

= xxx:xx

Signal out of range
