Rear Panel
Cabling
This section describes the rear panel cabling of the RGB 203 Rxi. The rear panels of both
models are identical.
Rear Panel Connections
AUDIO
REMOTE 100-240 0.2A
50/60 Hz
OUTPUTS
INPUT 3 INPUT 1
INPUT 2
R
H
G
V
B
S
L/MONO R
MONITOR
AUDIO
DD
SP
SOG SER
R
V
SYN
C WIDT
H
M O NIT
O R F
O LL
O
W S
MONO AUDIO LEF
T
AUTO SWITC
H
NO
BA
CK LI
G HT
7 1 2 4 3
3
5
2 2 6

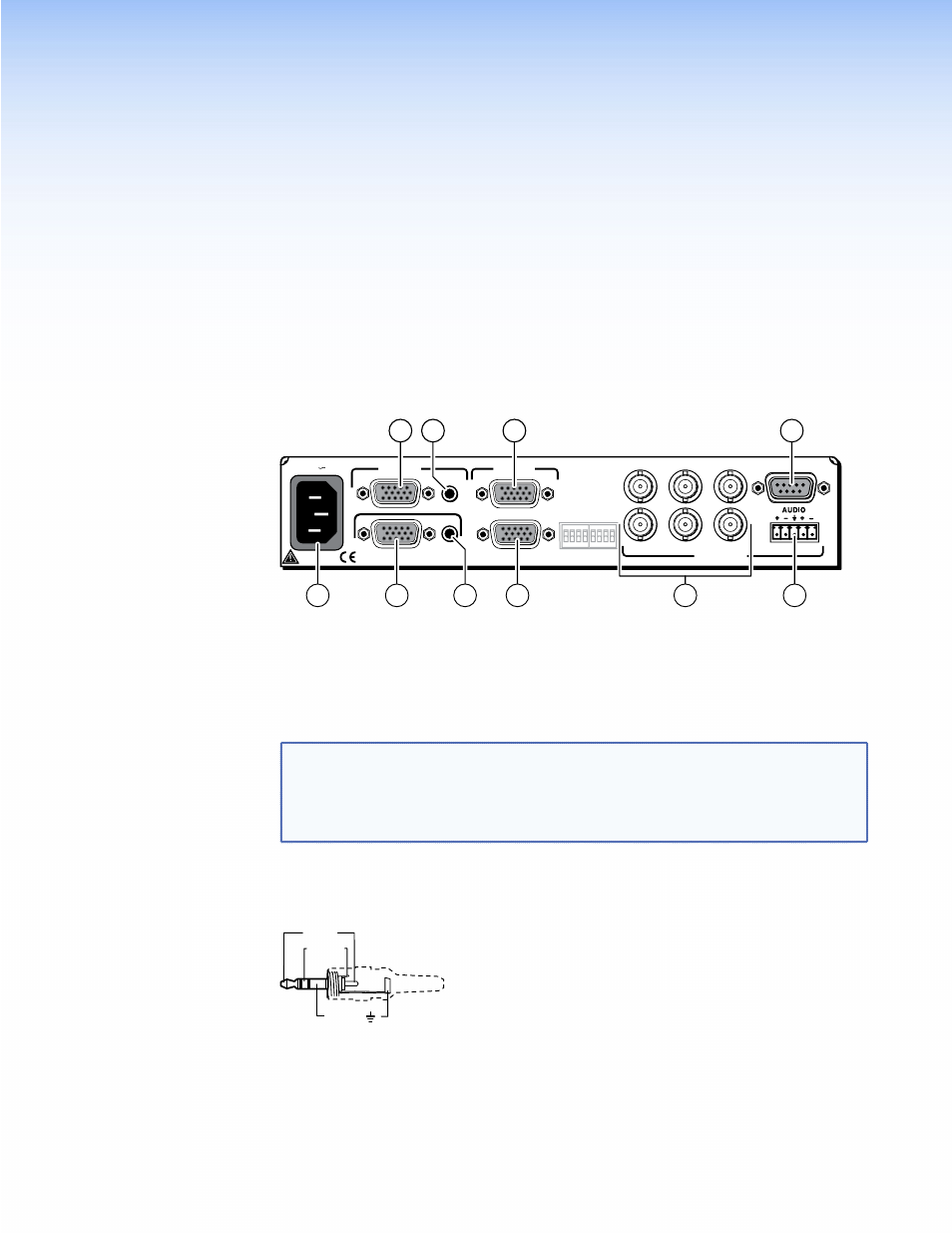

Figure 2. RGB 203 Rxi Rear Panel
a
AC power connector — Connect a standard IEC AC power cord here for power input
(100 VAC to 240 VAC, 50-60 Hz) to the internal power supply.
b
Inputs 1, 2, and 3 — Connect the analog computer-video sources to these 15-pin HD
female connectors.
NOTE: Most laptop or notebook computers have an external video port, but they
require special commands to output the video to that connector. Also, the
screen of the laptop may shut off once that port is activated. See the user
guide for the computer for details, or contact Extron for a list of laptop
keyboard commands.
c
Audio inputs 1 and 2 — Connect the unbalanced stereo audio sources (such as
computers or a CD player) to these 3.5 mm mini stereo jacks for unbalanced audio
input. Figure 3 below shows how to wire the audio jack.
Sleeve ( )
Ring (R)
Tip (L)
Figure 3. 3.5 mm Mini Stereo Jack
d
Monitor connector — If desired, connect a local monitor or other device to this
15-pin HD female connector.
