Operation
This section of the guide provides information about RGB 203 Rxi front panel controls and
indicators and troubleshooting .
Once the video and audio cables have been connected , the power cords have been
connected , the internal jumpers configured (if necessary), and all devices powered
on, the system is ready for operation. Select an input using the front panel toggle switch
(
i in figure 9) or the remote control device. If the image does not appear on screen and
sound is not audible, ensure that all devices are plugged in and receiving power. Adjust
the
cabling and DIP switch settings, if necessary. Select a different input to check for a
picture and sound. If the problems persist, see Troubleshooting later in this chapter. If the
troubleshooting tips do not help, call the Extron S3 Sales and Technical Support Hotline (see
the back page of this guide for phone numbers).
Front Panel Controls and Indicators

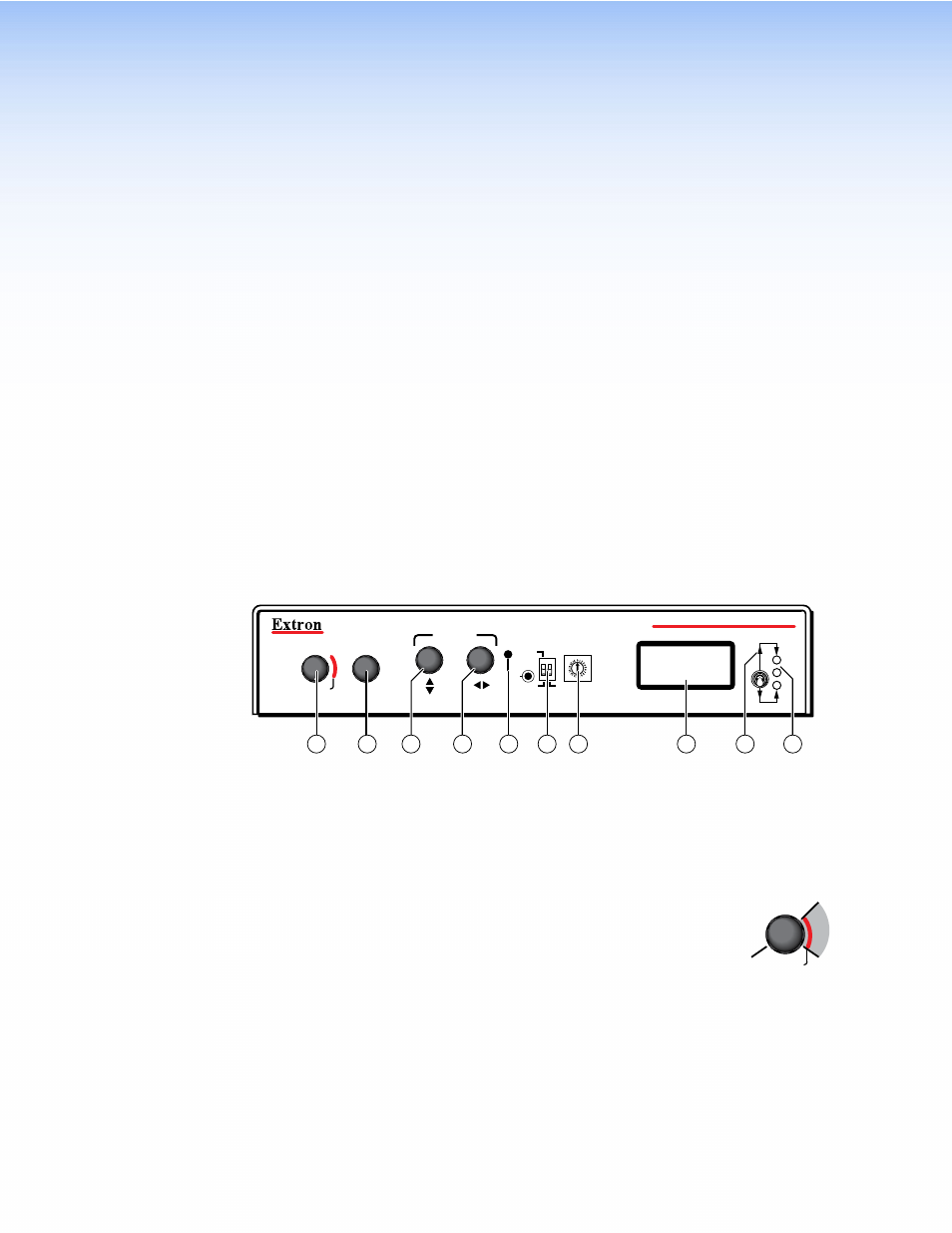

Figure 9 shows the front panel of the RGB 203 Rxi with EDID Minder. The model with ADSP
is identical except that it does not have the Record button and LED (
e ), the 2 position DIP
switch ( f ), or the EDID Select rotary switch ( g ).
RGB 203 Rxi
BOOST
LEVEL
CONTROL
PEAK EDID
SELECT 50 Hz
RECORD
60 Hz SPARE
UNIVERSAL INTERFACE WITH EDID MINDER CENTERING
INPUT
1
2
3
1 2 3 4 8 9 10 5 6 7
Figure 9. RGB 203 Rxi with EDID Minder Front Panel
Level and Peaking Controls
a
Level and Boost control — The Level and Boost control alters the video output voltage
to affect the brightness of the displayed image. Adjust the
knob while viewing the displayed image to set the level/boost
that provides the best picture quality.
For a typical (0.7 Vp-p) analog computer video input, adjust
the output is as follows:
z
At the minimum level setting (the counterclockwise limit of this control), the
interface outputs video at 0.5 Vp-p.
z
Unity level is 0.7 Vp-p, the same as the input signal. Set the control to just before
the boost range (indicated by the red line on the interface, the shaded area on the
illustration at right) to output unity level video.
z
At the maximum level setting (the clockwise limit of this control), the interface
outputs video at 1.45 Vp-p.
LEVEL
BOOST
Boost
Range
Unity:
0.70 Vp-p
Maximum:
1.45 Vp-p
Minimum:
0.50 Vp-p
RGB 203 Rxi • Operation 10
