Page 11
g
Audio output connector — Connect an audio device, such as powered speakers, to
this 3.5 mm, 5-pole captive screw connector for balanced or unbalanced audio output.
The connector, but not the wires, are provided. Insert the wires into the correct openings
and tighten the screws to fasten the wires (see figure 5).
CAUTION:
For unbalanced audio, connect the sleeves to the center contact ground.
DO NOT
connect the sleeves to the negative (-) contacts.

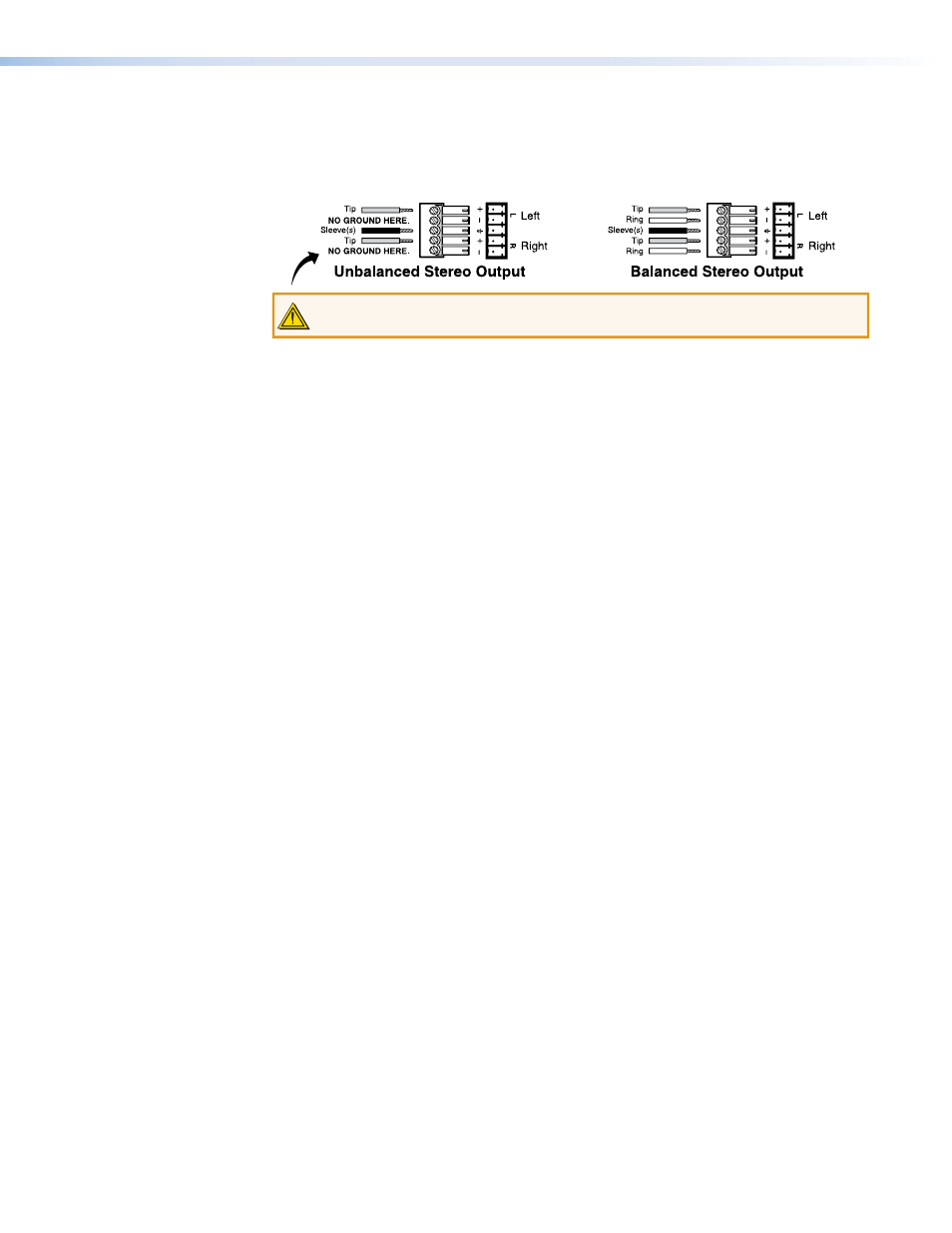

Figure 5.
Wiring the Captive Screw Connector for Audio Output
RGB 203 Rxi • Rear Panel Cabling
5
