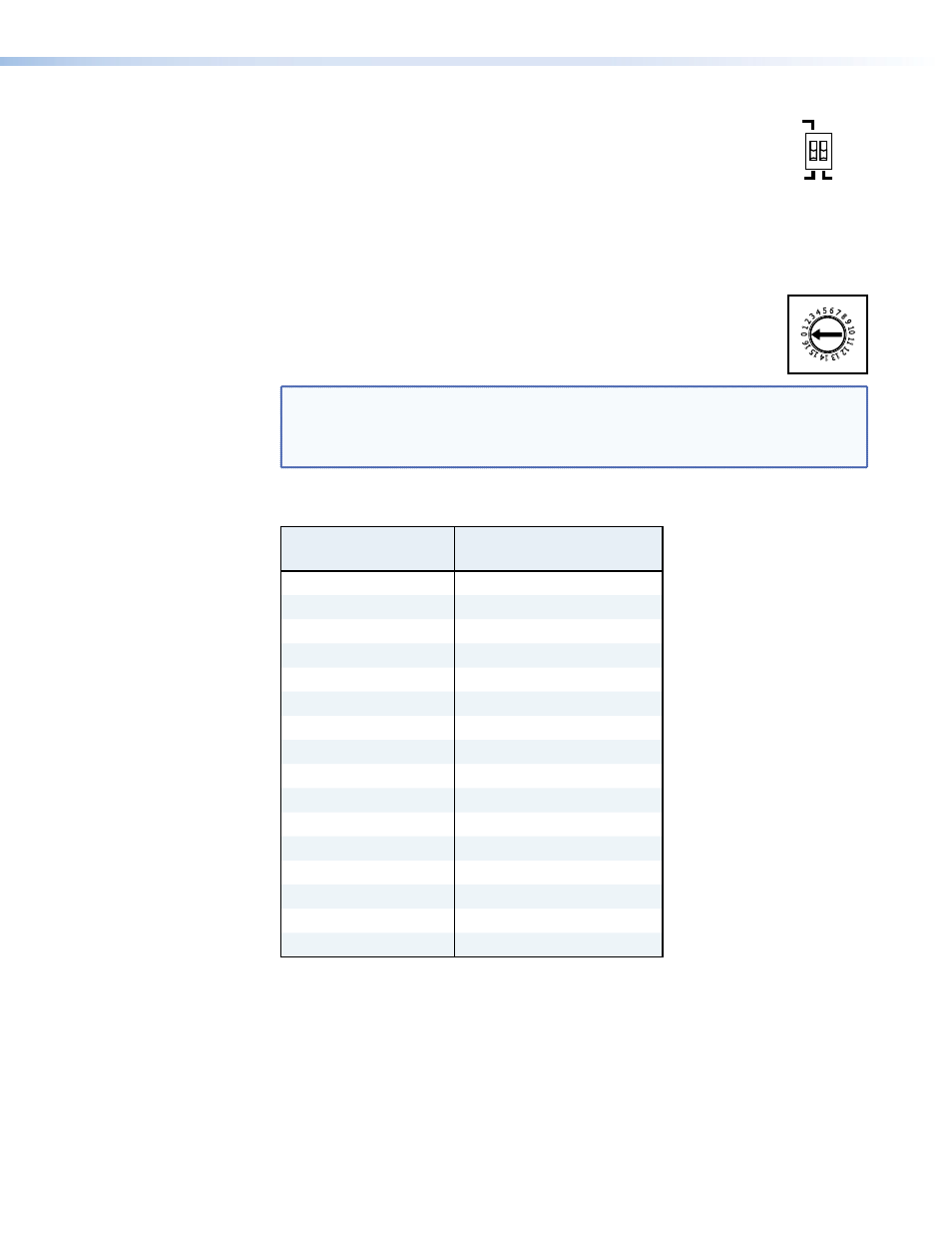

2 position DIP switch — The first DIP switch allows the user to
choose the vertical frequency for the pre-programmed EDID, positions
1 to E on the rotary switch . The up position, which should be used
in Europe, sets the vertical frequency to 50 Hz; the down position,
which is the default setting, sets the vertical frequency to 60 Hz.
The second DIP switch is not used by this device.
g
EDID Select rotary switch — The 16 position rotary switch allows the
user to select the EDID information that is provided to the input source.
z
Postion 0 is for user-recorded EDID information .
z
Positions 1-E are for pre-programmed EDID information .
z
Position F passes through EDID information from the local
monitor output to the local inputs.
NOTE: Configuring the rotary and DIP switches allows a user to select a
pre-programmed EDID setting based on the native rate of a display (for
example, 1024x768) and a desired frequency (50 or 60 Hz), but does not
necessarily force a video source to output that rate.
Rotary switch settings and resolutions
Rotary Switch
Position
Resolution
0 User-recorded EDID
1 800x600
2 1024x768 (default)
3 1280x720
4 1280x768
5 1280x800
6 1280x1024
7 1360x768
8 1366x768
9 1400x1050
A 1440x900
B 1600x1200
C 1680x1050
D 1920x1080
E 1920x1200
F Local monitor pass-through
50 Hz
60 Hz SPARE
EDID
SELECT
RGB 203 Rxi • Operation 13
