Extron Electronics MLM-WB+ User Guide User Manual
Page 19
2-13
MLM-WB • Installation

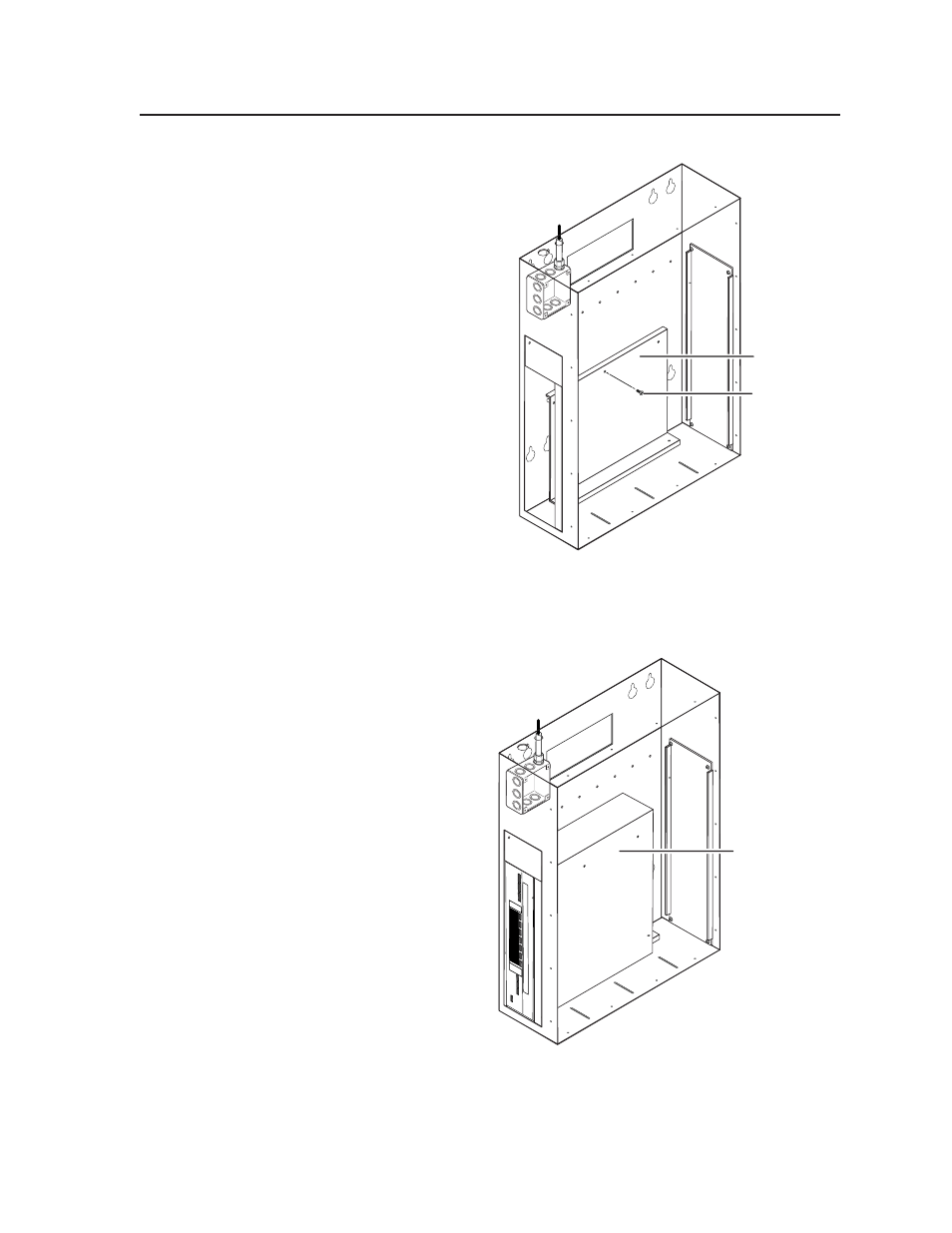

VCR (bottom side
facing forward)
#440, 1/4" Flat
Head Screws
(5 places)
VCR Shelf
4.
Align the holes in the VCR shelf with the
posts on the floor and back wall of the
MLM-WB, insert screws through
the holes into the posts, and
tighten the screws.
5.
Set the VCR on its side on the VCR shelf so the VCR’s top faces the back of the
MLM-WB, and the VCR’s front panel touches the desired side of the
MLM-WB. Adjust the size of the
side opening in the adjustable
plates to securely fit the
VCR, then tighten the
nuts.
