Through-desk Mounting

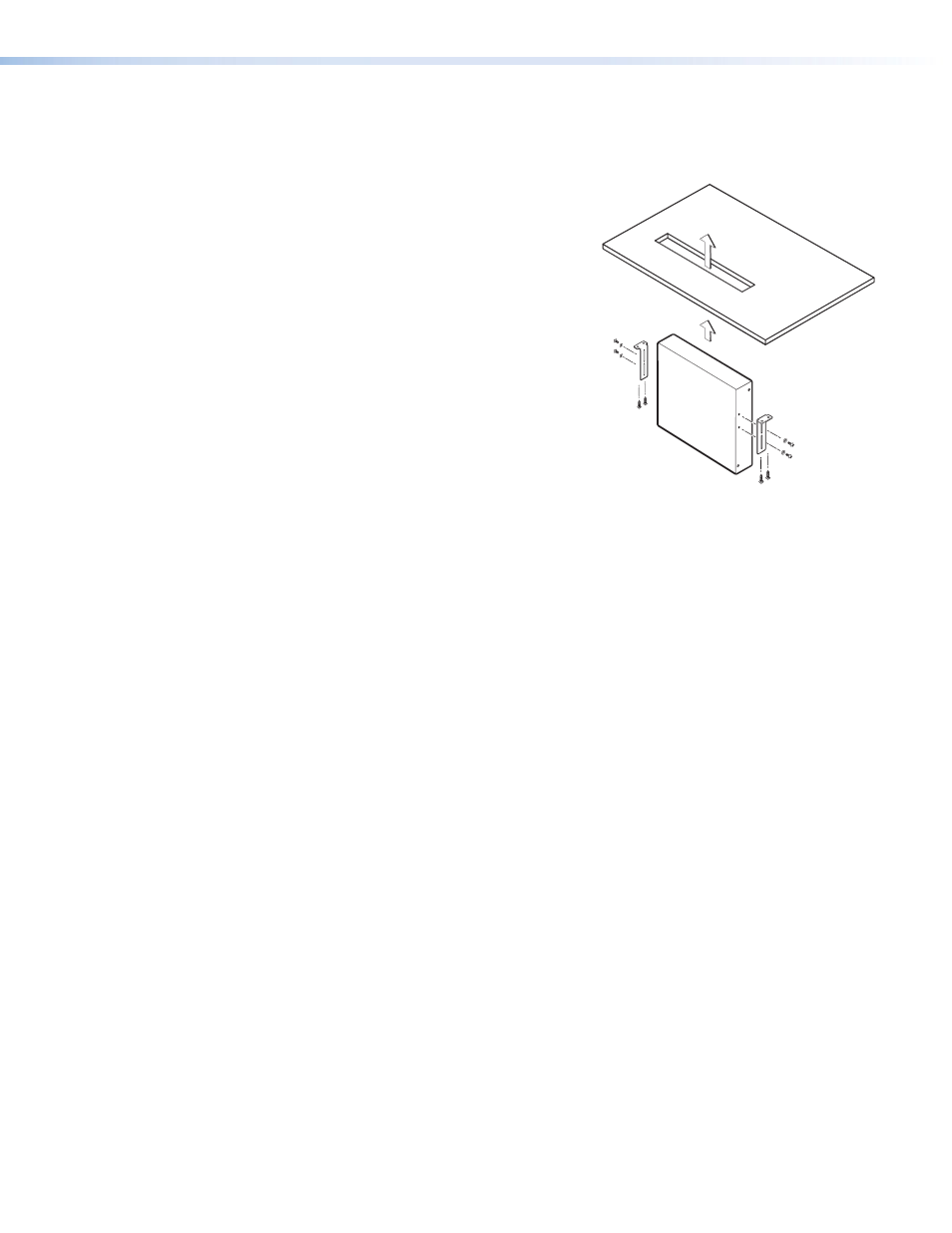

Mount the switcher through a desk or podium as follows:
1. Attach the mounting brackets to the switcher
with the machine screws provided.
2. Cut the proper sized hole in the mounting
surface.
3. Hold the switcher with the attached brackets
against the underside of the table or other
furniture. Mark the location of the screw
holes of the bracket on the mounting surface.
4. Drill 3/32 inch (2 mm) diameter pilot holes,
1/4 inch (6.4 mm) deep in the mounting
surface at the marked screw locations.
5. Insert four #8 wood screws through the
bracket and into the four pilot holes. Tighten
all four screws to secure the switcher in
place.
