MPS 601 • Software Configuration and Control 37
Adding EDID to the EDID Library
1. Click Add EDID to Library . The Browse Add EDID to Library dialog box opens.
2. Navigate to the desired EDID file location and select it.
NOTE: Valid EDID files have a .bin file extension.
3. Click Open . The EDID is added to the Available EDID list.
Image Settings Page
From this page, signal sampling and picture control settings for the two analog inputs
(inputs 1 and 2) are adjusted. Click the
Image Settings icon on the Global Navigation Bar
to open the Image Settings page.

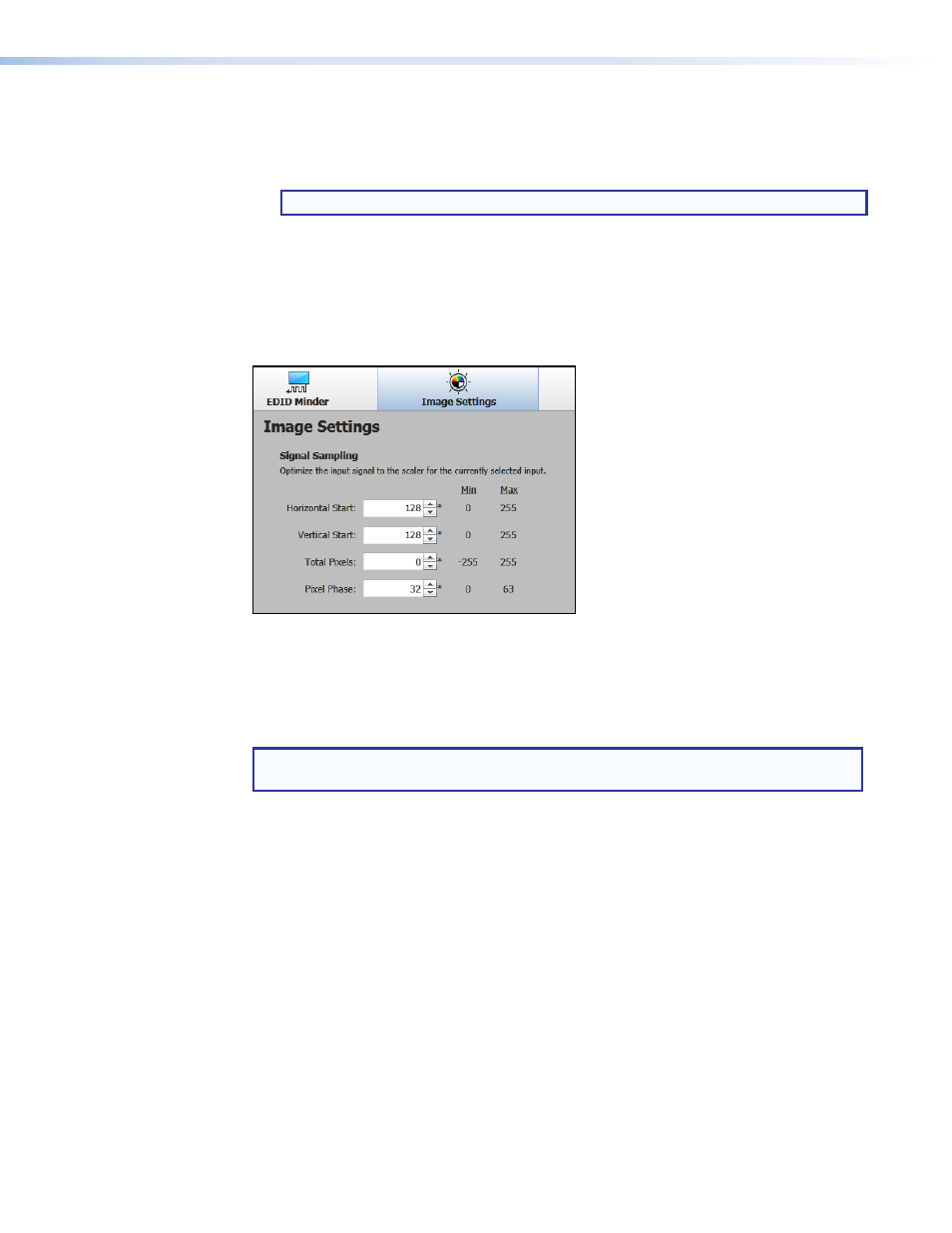

Figure 30. Image Settings Page
Signal Sampling
To optimize signal sampling settings, select the analog input. Enter a value within the Min
and Max values displayed to the right of each adjustable setting or click the
Up or Down
arrows.
NOTE: An asterisk beside a chosen value for a signal sampling setting indicates it is the
default value for the applied video signal.
Horizontal Start – Defines the number of pixels from the start of the horizontal line where
active video begins.
Vertical Start – Defines the number of lines from the start of the vertical line where active
video begins.
Total Pixels – The total number of pixels in a horizontal line, including blanking on both
sides of the active video area (active video, horizontal sync width, back porch, and front
porch). The default value is determined by the source input. Values are adjusted from the
default value by ±255.
Pixel Phase – The timing of digital sampling by the scaler. Sampling at the optimum pixel
phase results in a bright, stable output and maximizes the contrast between pixels. A good
image for phase adjustment has adjacent black and white pixels.
