Operation
This section discusses how to configure and operate the MPS 601. Topics that are covered
include:
•
•
•
•
•
Front Panel Lockout (Executive Mode)
•
•
Front Panel Features
MPS 601
MEDIA PRESENTATION SWITCHER
CONFIG
SIGNAL
INPUTS
INPUTS
OUTPUT
1
2
3
4
5
6
HDCP
1
2
3
4
5
6
AUTO
SWITCH
A
A B
B
C
C
D
D
E
E F
F G
G

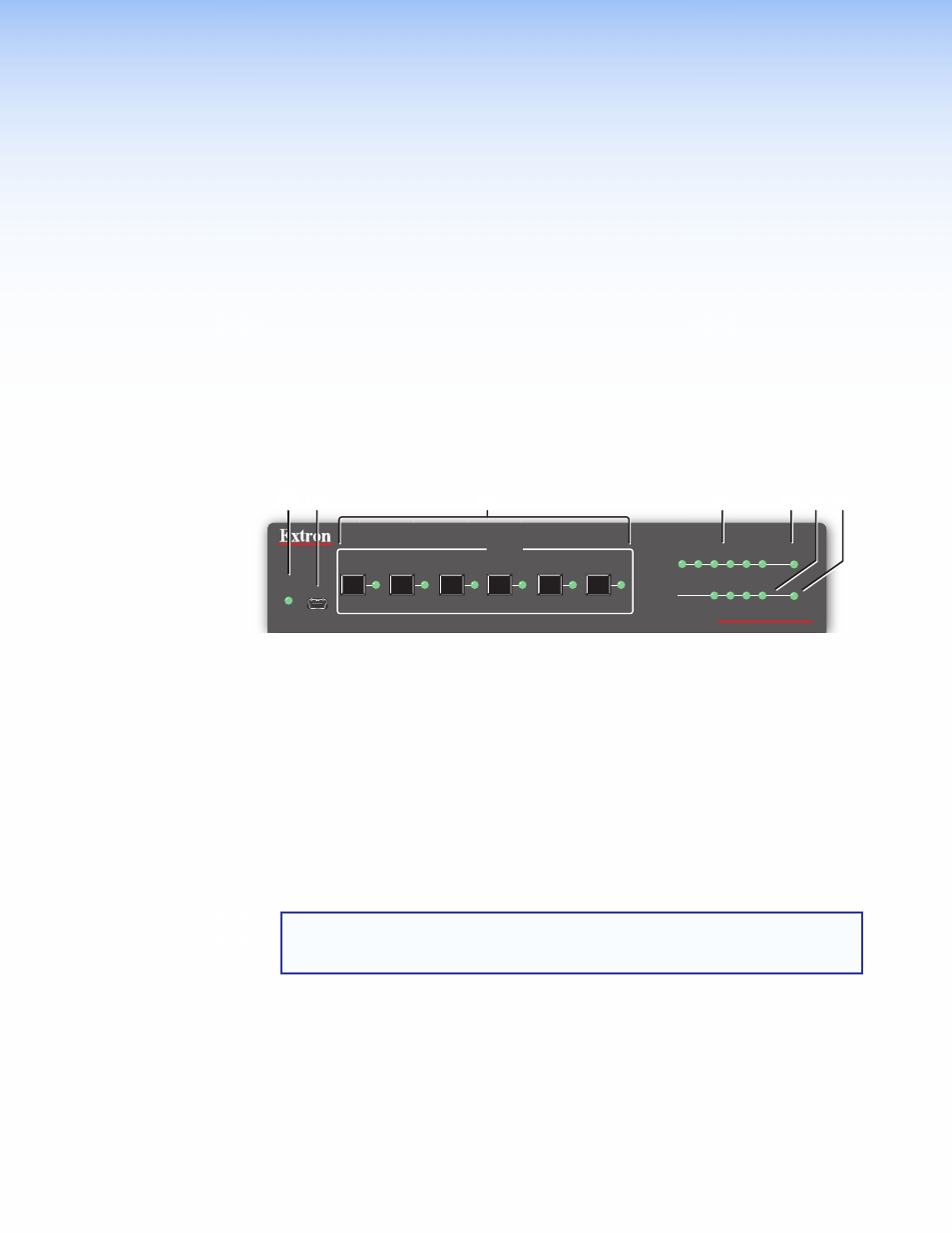

Figure 13.
MPS 601 Front Panel
A
Auto Switch LED — This LED lights when auto-input switching is active.
B
Config connector — One female USB mini B port connects a host computer for
configuring the switcher and upgrading firmware.
C
Input switching buttons — Six buttons with associated green LEDs. Press an input
button to switch an input to the HDMI output. Only one of the six inputs can be selected
at a time.
D
Input signal LEDs — Six green LEDs:
•
The LEDs for RGB inputs 1 and 2 light when horizontal sync is detected on the
input.
•
The LEDs for HDMI inputs 3 to 6 light when TMDS clock activity is detected on the
input.
NOTE: If a connected HDMI source is HDCP encrypted, the HDMI signal LED
does not light until HDCP is authenticated. If HDCP authorization is disabled, the
switcher does not display content with HDCP encryption.
E
Output signal LED — This LED lights when the HDMI output is connected to a display
or sink device.
F
HDCP input signal LEDs (inputs 4 to 6 only) — These LEDs light when the
connected source device is HDCP encrypted.
G
HDCP output LED — This LED lights when the currently selected input source requires
HDCP and the connected output device (sink) is authenticated.
