HDCP
The HDMI group is HDCP compliant. When EDID Minder is enabled (default), HDCP is not
supported if adapters are used to provide DVI inputs.
HDCP communication occurs between the selected input source and the output device
directly (pass-though).
Audio Features
There are three audio modes to customize switching the digital and analog audio inputs
to the output. They are selectable using SIS commands (see
Audio input mode on
page 24) or the PCS configuation software (see Audio Config Page on page 38). The
modes are:
Mode 1 (Default)
When each RGBHV input has an associated audio input, the associated audio input follows
the selected input.
• Audio input A follows input 1 (yellow box in figure 14, below).
Input 1 selected: RGBHV 1 video and audio input A switch to the HDMI output.
• Audio input B follows input 2 (green box in figure 14, below).
Input 2 selected: RGBHV 2 video and audio input B switch to the HDMI output.
• Inputs 3 through 6 selected: the associated embedded audio switches to the output.
0.5A MAX
POWER
12V
1
2
B
A 3
4
5
6
INPUTS MPS 601
CONTACT IN / TALLY OUT
HDMI
RGBHV
HDMI
HDMI RS-232
G C
1 3 5
2 4 6
T T C G T C G
G C T T C G T +V C G
Tx Rx G
OUTPUT
REMOTE
STANDBY/ON PQLS HDMI OPEN/CLOSE FL OFF
USB
HDMI
HDMI
HDMI
HDMI
HDMI
Audio
RGBHV
Audio
RGBHV
Laptop with VGA Output
PC with VGA Output
Blu-ray Player
Flat Panel Display with Speakers
Laptop with
HDMI Output
Laptop with
HDMI Output
Laptop with
HDMI Output
Extron
MPS 601
Media Presentation
Switcher

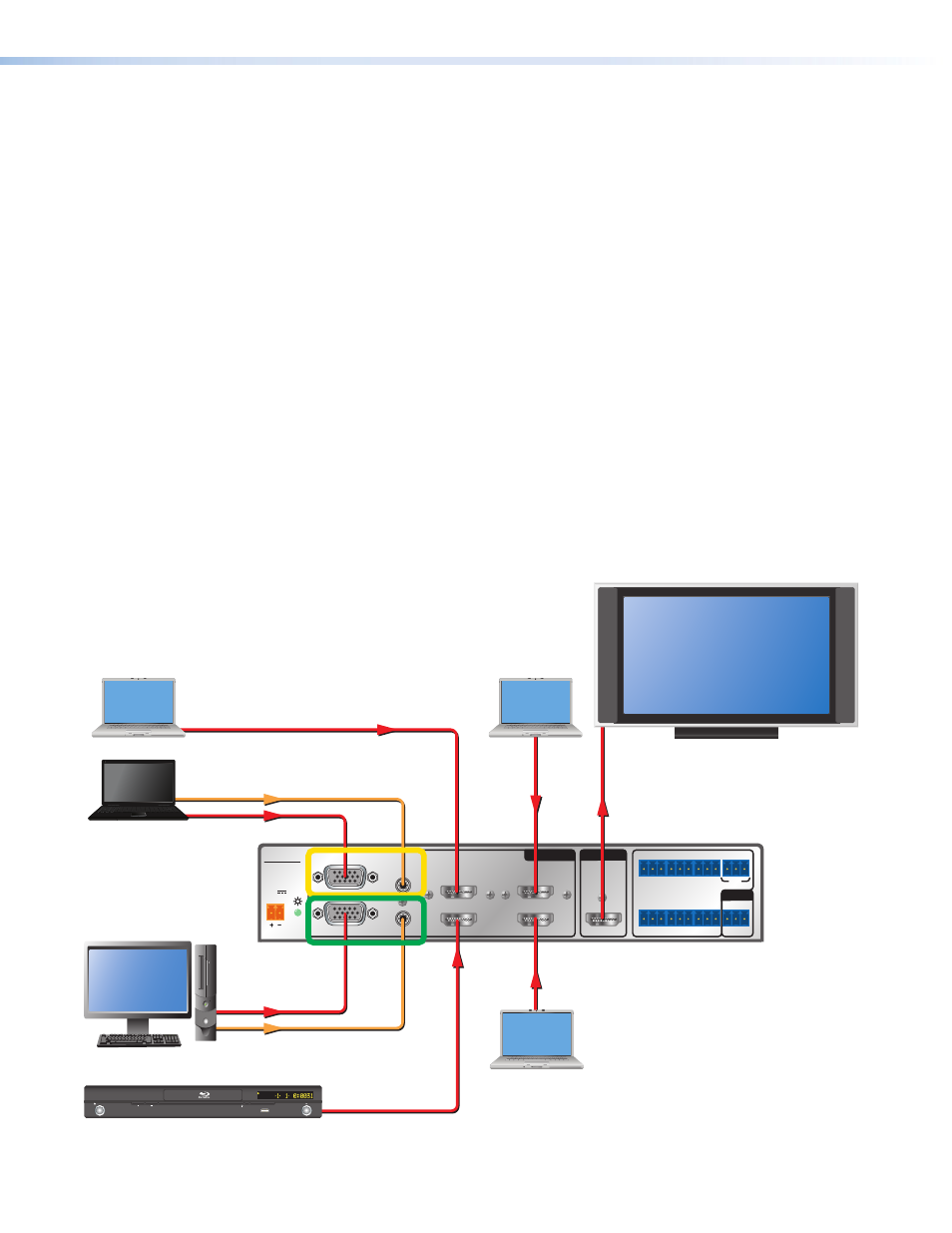

Figure 14. Audio Mode 1 Switching (Default)
MPS 601 • Operation 12
