MGP 462 • Operation

Output Configuration menu

The Output Configuration menu allows you to set the output resolution, refresh

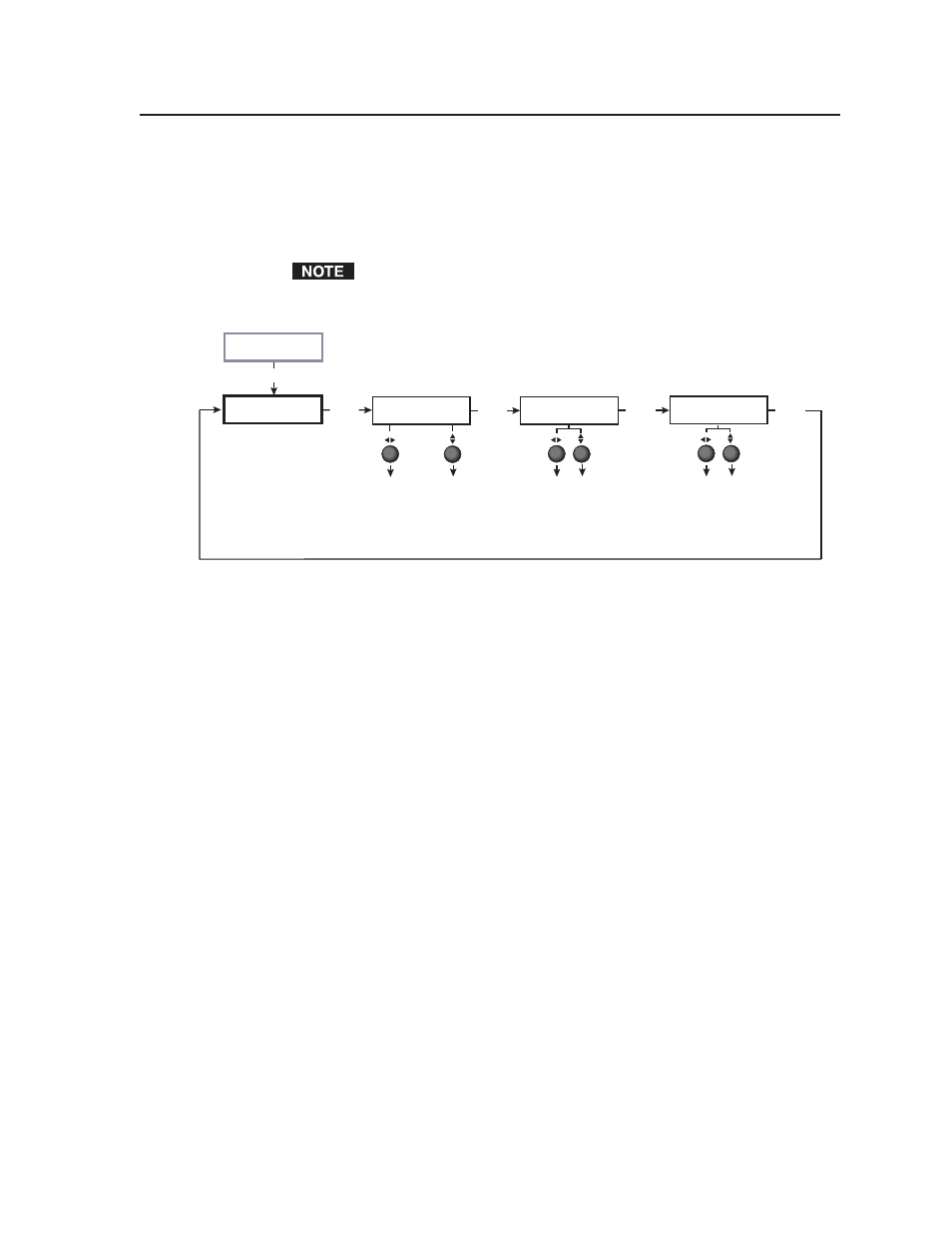

rate, output type, and sync polarity. The following flow diagram shows the
submenus of the Output Configuration menu, and the adjustments that can be
made from them.

The menus time out and return to the default cycle after 20 seconds of
inactivity. However, any selections you made with the Adjust knobs are saved
and remain in effect.

Output

Configuration

NEXT

Resol

1024 x 768

Refresh @60 Hz

Output Type

RGBHV

Sync Polarity*

H Neg V Neg

NEXT

NEXT

NEXT

Input

Configuration

MENU

Resolution Refresh rate

See the following table for available

combinations of resolutions and
refresh rates.

Default: 1024 x 768 @60 Hz

Video signal types
• RGBHV / RGBS (default)
• RGsB
• YUV Bi-Lvl (Current NTSC
standard)
• YUV TriLvl (Current HDTV
standard)

Polarity combinations
• H Neg V Neg (default)
• H Neg V Pos
• H Pos V

Neg

• H Pos V

Pos

*Appears only when sync polarity is
applicable, based on other output settings.

Output configuration menu flow
