FOX 3G DVC • Operation

10

Operation

This section discusses the functions available through the front panel to set up and operate
the FOX 3G DVC. Topics include:

Front Panel

Powering On

Menus on the LCD Screen

Resetting

Front Panel Lockout (Executive Mode)

Updating Firmware

Front Panel

Extron

NEXT

MENU

FOX 3G DVC

DIGITAL VIDEO CONVERTER

ADJUST

CONFIG

1

2

3

5

4

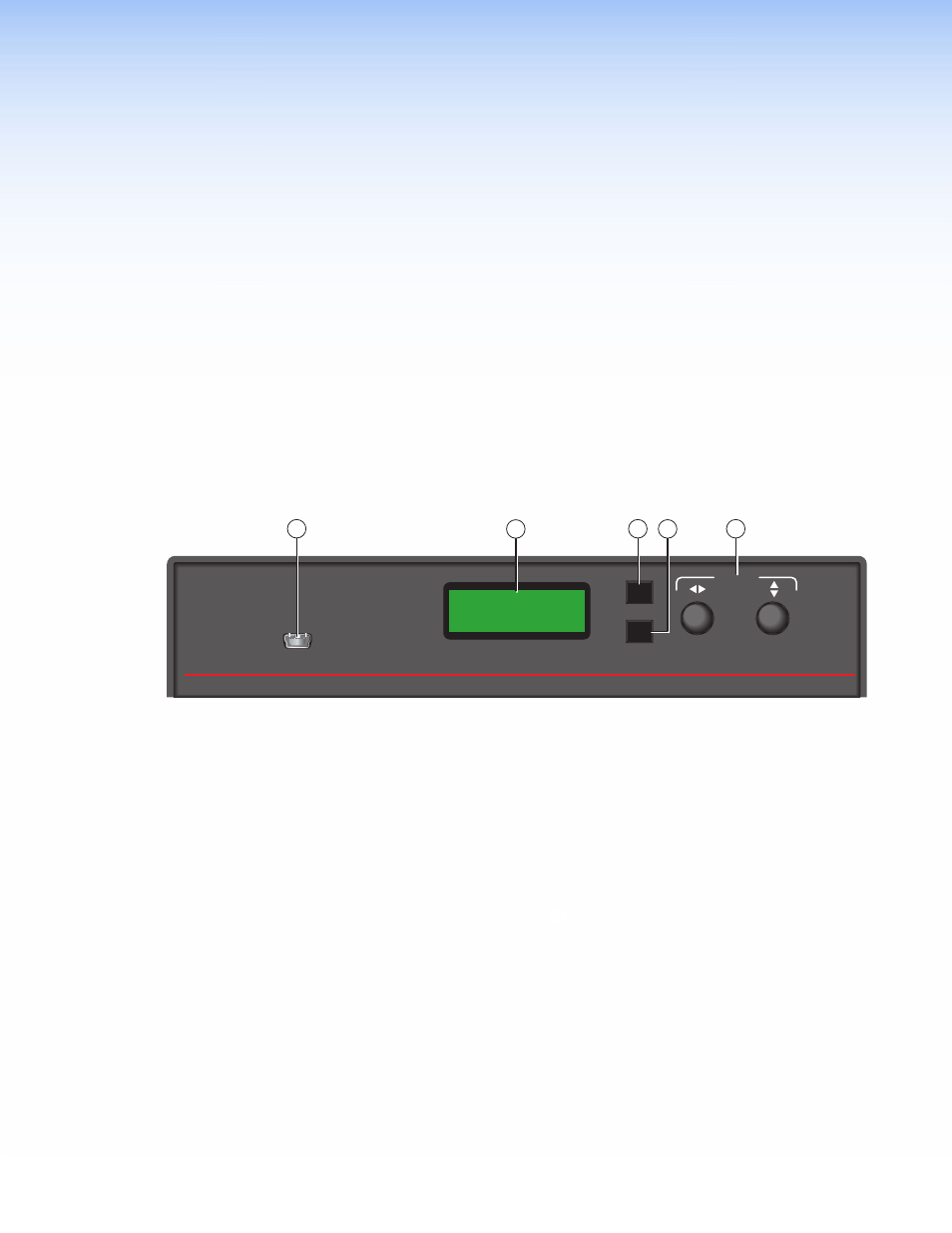

Figure 9.

FOX 3G DVC Front Panel

The front panel features and controls shown in the illustration above are described below.

a

Config port — Connect a USB cable (USB A-to-mini-B) from your computer to this port

to configure and control the DVC via SIS commands and to update the firmware.

b

LCD screen — Displays menus, messages, and your selections from menus and

submenus (see “

Menus on the LCD Screen

,” later in this section, for more

information).

c

Menu button — Press this button to access the DVC menu system and step through

the menus displayed on the LCD screen (

b

) (see “

Menus on the LCD Screen

” for

details).

d

Next button — Press this button to step through the submenus displayed on the LCD

screen.

e

Adjust knobs — Rotate these horizontal ([) and vertical ({) knobs to scroll through

submenu options and make adjustments.
