8 M795GB0503
Data Transmitter 795
SW ver. 830434

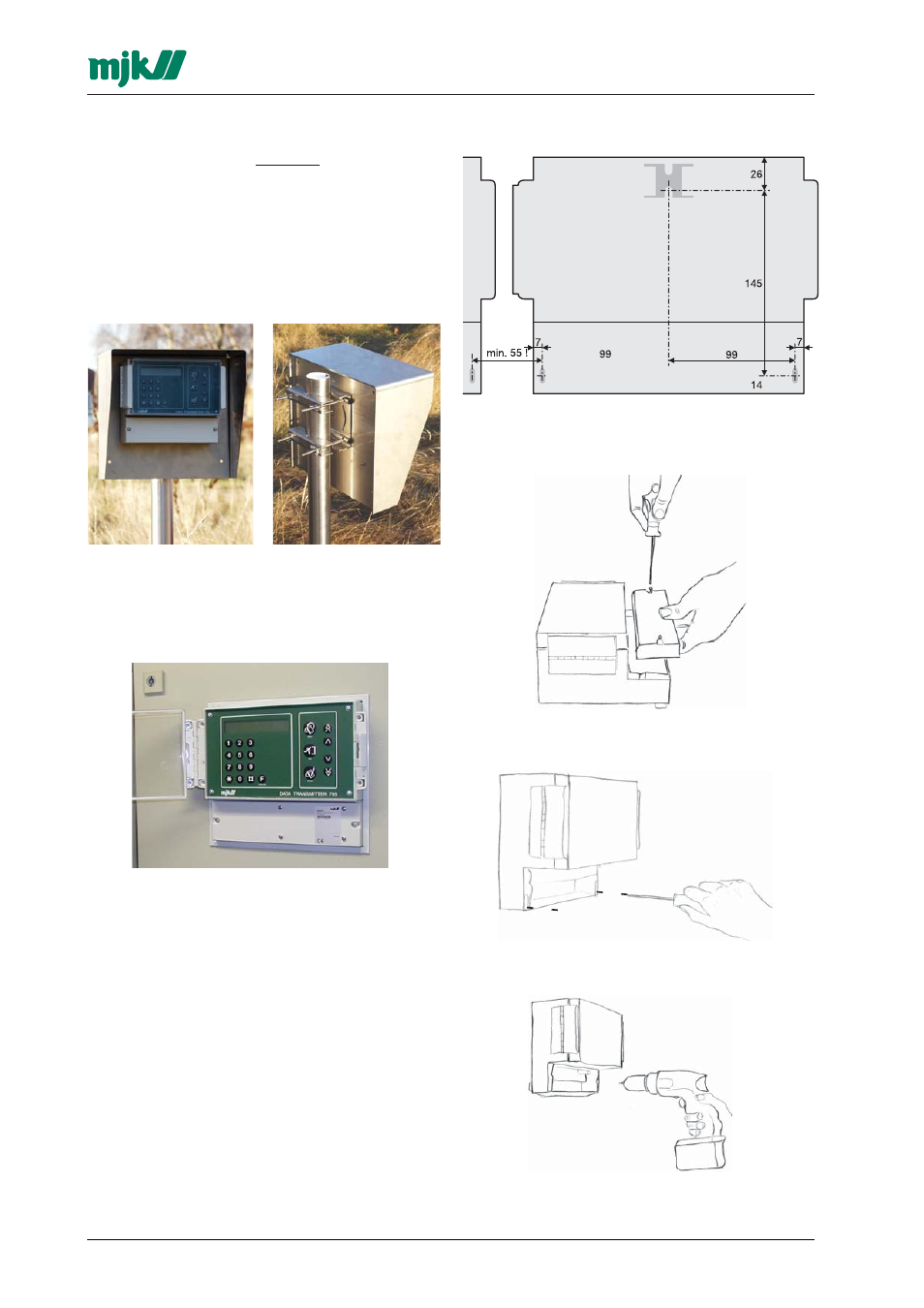

2 Mechanical mounting
Data Transmitter 795 must not be mounted in
explosion hazardous areas!
Data Transmitter 795 is IP65 enclosed, and can
be mounted outdoors directly on a wall or a
railing, eventually by means of MJK rain roof
200115 and MJK universal fitting 200205.
MJK Data Transmitter 795 must be mou
ted vertically in order to comply with the IP68
standard.
MJK rain roof 200115 mounted on pole with MJK
universal bracket 200205.
Data Transmitter 795 can also be mounted in a
panel by means of MJK panel mounting kit
200105.
Data Transmitter 795 mounted in a panel with MJK
panel mounting kit 200105.
2.1 Mounting on a wall
The cabinet is mounted using three screws. The
upper screw is used for the suspension and the
two lower screws is used to fix the cabinet.
The distance between the mounting screws is
shown on the dimensional drawing.
Please observe minimum distance if more than
one cabinet is mounted.
You will find a jig in full size at the back of this
manual.
Dimensional drawing for mounting screws.
See also page 51.
Remove the terminal box lid to gain access to the
two lower mounting holes.
The cabinet is suspended by the upper screw and.
fastened with the two lower screws.
X
Do not use a screw machine!
