Data Transmitter 795
SW ver. 830434
Above figure is an overview of the general function of the functional keys.
See also page 42.

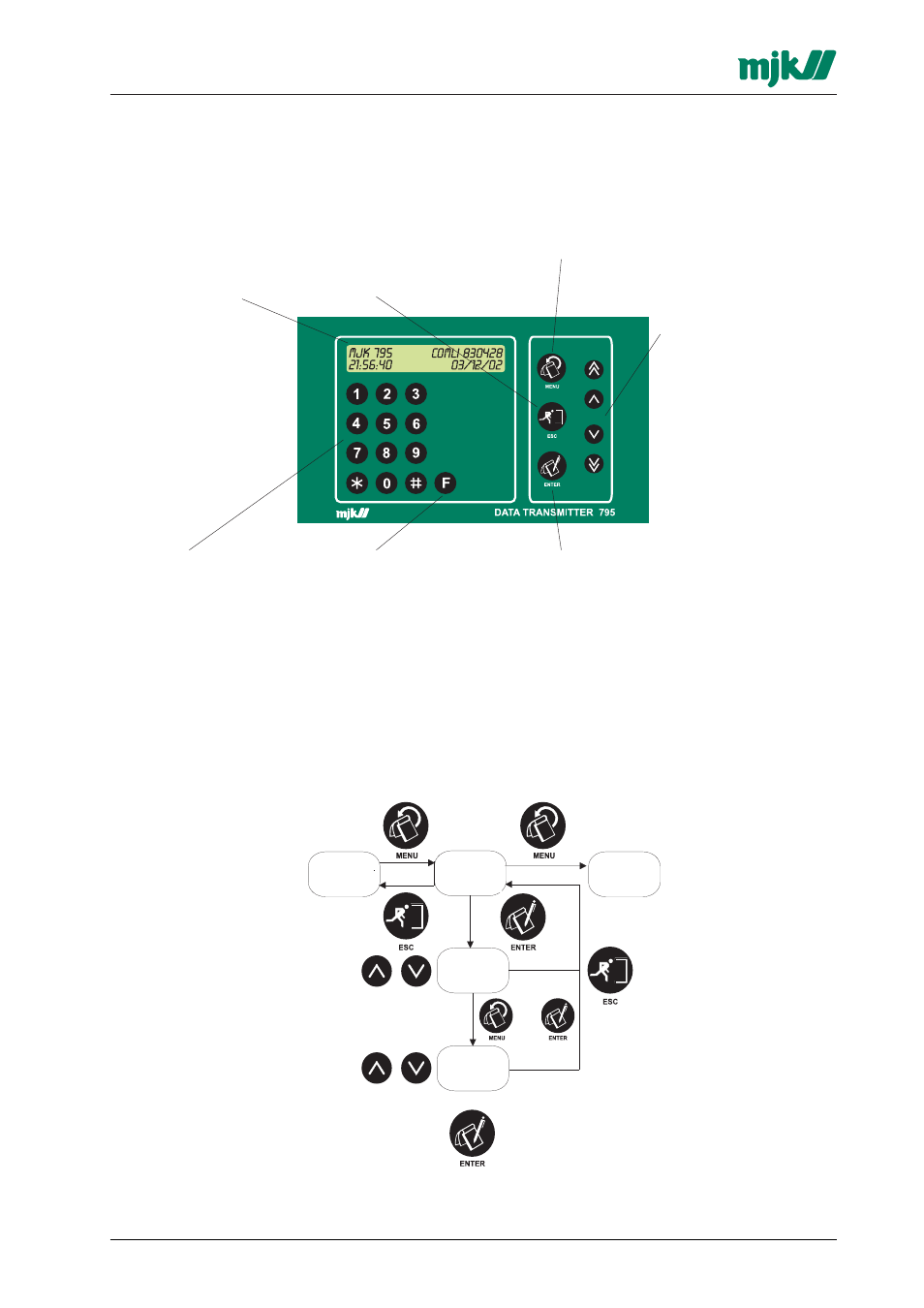

4 The front panel
Display
2 x 24 digit backlit
alphanumerical display
for indication of user
menus and measuring
values.
ESC. key
This key is used to go
back to the previous
menu, or to cancel a
selection. Press this
key 2 or 3 times to
revert to functional
indication.
MENU key
This key is used to
switch between main
menus and submenus.
Arrow keys
The arrow keys are
sed for altering the
current setting. In a
sub-menu the current
selection is always
shown in the upper
line, and the alternative
selection is shown in
brackets in the lower
line. The arrow keys
are used to select an
alternative setting. The
arrow keys are also
used to select input
and output number.
The
↑
key increase
and the
↓
key
decrease a value.
Numerical keys
The keys 0-9, #, * are
used to enter
telephone numbers,
delays, analogue
scaling etc.
Functional key F
The function key are
used for selecting the
different functional
menus to be displayed.
The illustration show
the function menu F0
for program version,
time and date.
ENTER key
The ENTER kry is used
to change between the
main menu and
submenus and to go
through the submenus.
The ENTER kay is
always used to confirm
a selection in a
submenu.
4.2 Menu structure
4.1 Display and keys
SUBMENU W.
SELECTION
MAIN
MENU
SUBMENU W.
SELECTION
INDICATION
MENUS
MAIN
MENU
