29 M795GB0503
Data Transmitter 795
SW ver. 830434
15 Programming of 702 ComTroller
If one or more 702 ComTrollers is connected to
the Data Transmitter as multidrop units on the
RS485 port, they can all be programmed via the
Data Transmitter's keyboard and display. (The
Data Transmitter must be the Master in the
cluster.)
15.1 Select 702

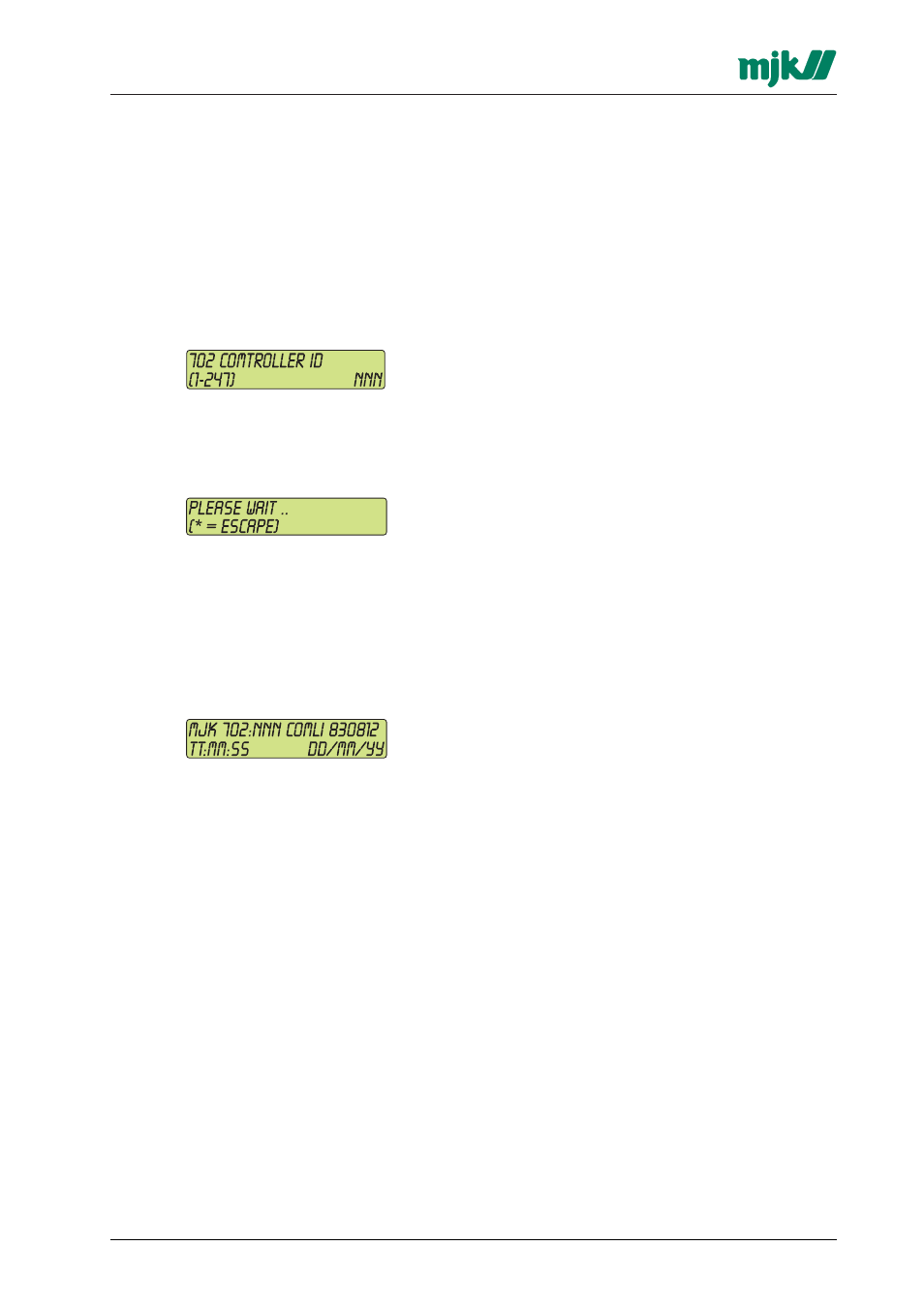

Enter the ID number for the desired 702
ComTroller:
Use the arow keys and confirm with ENTER.
The Data Transmitter will now attempt to
establish a connection with the selected 702
ComTroller:
If the selected 702 ComTroller does not respond,
the connection attempt can be interrupted by
pressing the
* key, whereafter another
ComTroller can be selected.
When the selected 702 ComTroller responds,
svarer, the Data Transmitter's display and key-
board can now be used for remote programming
of the ComTroller:
The function will be interrupted by pressing the *
key.
