12 Programming of Pump Controller(s)

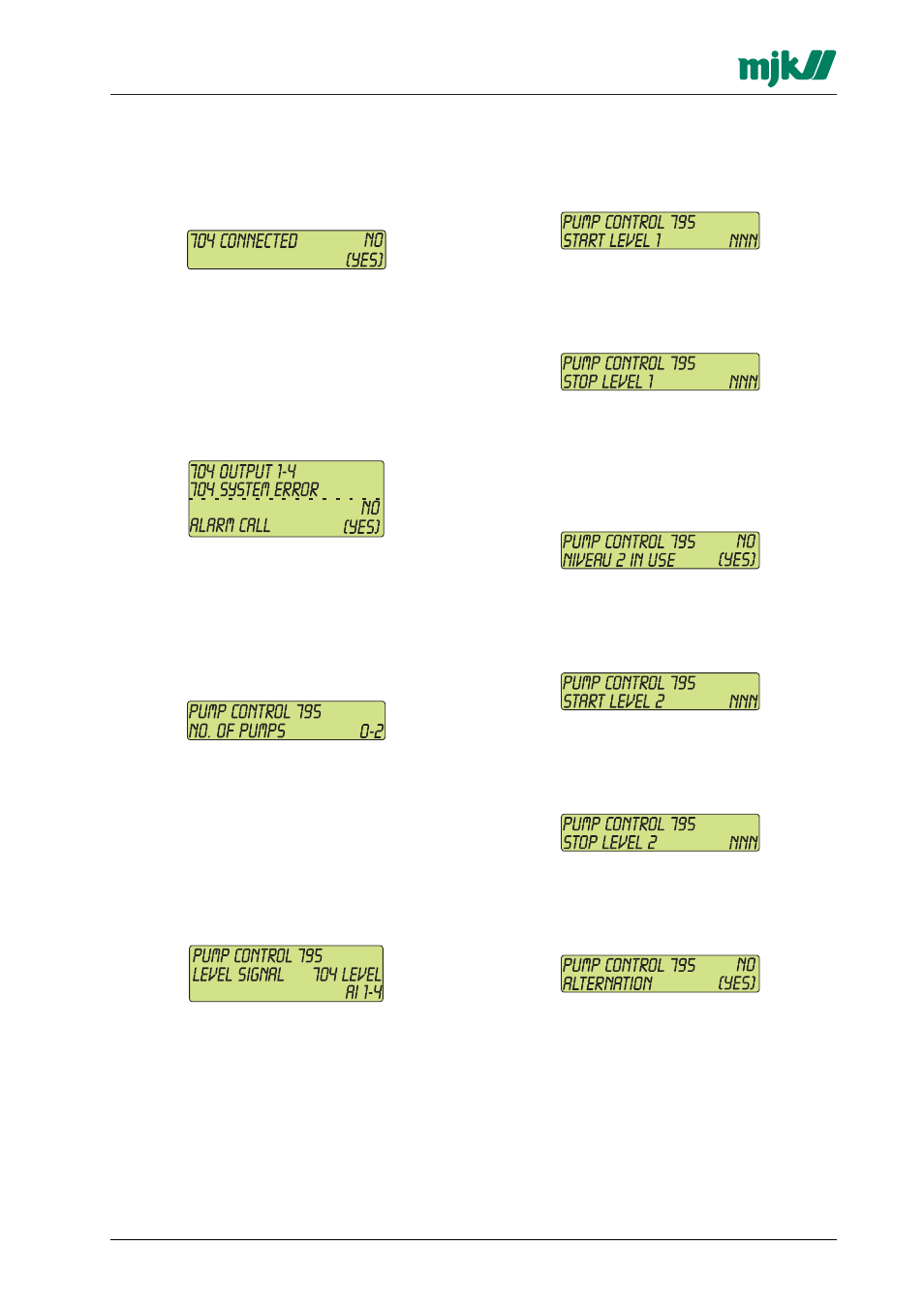

12.1 704 connected
Select if a MJK Pump Controller 704 are
connected to the Data Transmitter:
Use the arrow keys and confirm with ENTER.
12.2 Call on alarm or system error on 704
Select if the Data Transmitter should perform a
call caused by an alarm signal, a control signal or
a system error signal from Pump Controller 704.
Calls will be made to the telphone numbers ente-
red in the telephone number list in Data Transmit-
ter 795.
Use the arrow keys and confirm with ENTER.
12.2 Programming of the internal Pump
Controller
Select the number of pumps connected to Data
Transmitter 795:
Note, that DO1 and DO2 will be assigned to the
internal pump controller. If '1' is selected, DO1
will be assigned as control relay for pump no. 1,
and if '2' is selected, DO2 will also be assssigned
as control relay (for pump no. 2).
Use the arrow keys and confirm with ENTER.
12.2.1 Select level signal
Select the desired level signal:
Select between one of the analogue inputs on
Data Transmitter 795 or the analogu input on
Pump Controller 704.
Use the arrow keys and confirm with ENTER.
12.2.2 Start level for pump no. 1
Select the desired start level for pump no. 1:
Use the arrow keys and confirm with ENTER.
12.2.2 Stop level for pump no. 1
Select the desired stop level for the pump(s).
Use the arrow keys and confirm with ENTER.
12.2.3 Levels in use in 795
If 2 pumps are connected to Data Transmitter
795, two different start and stop levels are
available.
Use the arrow keys and confirm with ENTER.
12.2.4 Start level for pump no. 2
Select the desired start level for pump no. 2:
Use the arrow keys and confirm with ENTER.
12.3.2 Stop level for pump no. 2
Select the desired stop level for pump no. 2:
Use the arrow keys and confirm with ENTER.
12.3.3 Alternation of pumps
Select if the pumps should be alternated.
Use the arrow keys and confirm with ENTER.
