7 M795GB0503
Data Transmitter 795
SW ver. 830434
1.6.1 Standard versions
This manual covers the following standard vers-
ions with Comli protocol:
Item no.: In- and outputs: Communication:
204510 4 AI / 8 DI / 8 DO 2 × RS232 w. modem
204511 4 AI / 12 DI / 4 DO 2 × RS232 w. modem
204512 4 AI / 16 DI / 0 DO 2 × RS232 w. modem
204520 4 AI / 8 DI / 8 DO 1 × RS232 wo. modem
204521 4 AI / 12 DI / 4 DO 1 × RS232 wo. modem
204522 4 AI / 16 DI / 0 DO 1 × RS232 wo. modem

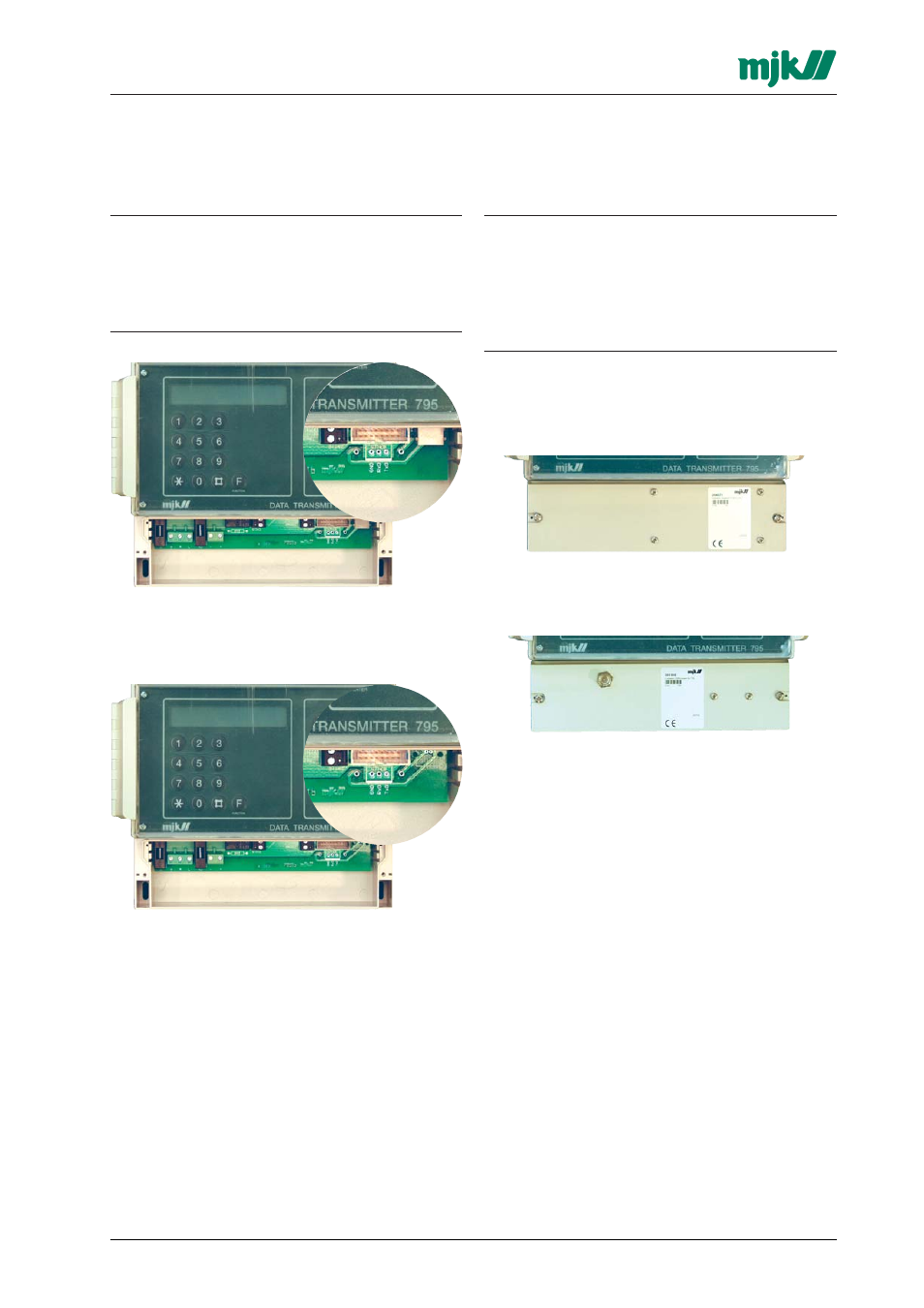

MJK Data Transmitter 795 with 2 X RS232 and
built-in telephone modem.
(Item no. 204510/204511/204512)
MJK Data Transmitter 795 with 1 X RS232 and 1 x
communications option port.
(Item no. 204520/204521/204522)
1.6.2 Versions with built-in options
The following type options can be built into Data
Transmitter 795:
Varenr.: Betegnelse:
204570 Galvanically insulated RS232 port
204571 Galvanically insulated RS485 port
204572 Galvanically insulated port for TP 6000
204573 Galvanically insulated port for Niros UHF
204574 Galvanically insulated port for external modem
205105 GSM modem complete w. aerial
205106 GPRS modem complete w. aerial
The factory mounted options can be determined
read on the terminal box lid:
MJK Data Transmitter 795 delivered from factory
with galvanically insulated communications port.
MJK Data Transmitter 795 delivered from factory
with built-in GSM-modem.
For both types of option applies that the data
transmitter is mounted and connected like a stan-
dard data transmitter.
Please see separate documentation for the built-
in options.
