4.3.2. HEADMOUNT MAINTENANCE
a. Browpad Replacement
Replace the browpad when cracked, torn, or contaminated. Perform the following to remove and re-
place the browpad.
(1) Firmly grasp the headmount and remove the old browpad.
(2) Gently press on the new browpad. Gently smooth out any wrinkles in the new browpad.
b. Neck Pad Reinstallation
During operation of the MUNVM, it is possible for the neck pad to become separated from its position
on the headband. Perform the following to reinstall the neck pad.
(1) Lift the upper headband strap retention tab (see Figure 4-1), allowing space for the neck pad strap
to be inserted underneath.
(2) Slip the neck pad strap all the way under the upper strap retention tab; pull the lower part of the
neck pad strap under the lower strap retention tab.
(3) If necessary, repeat steps 1 and 2 for the other side of the headband and neckband.
c. Lacing the Sliding Bar Buckles
NECK PAD STRAP
LOWER STRAP
RETENSION TAB
UPPER STRAP
RETENTION TAB

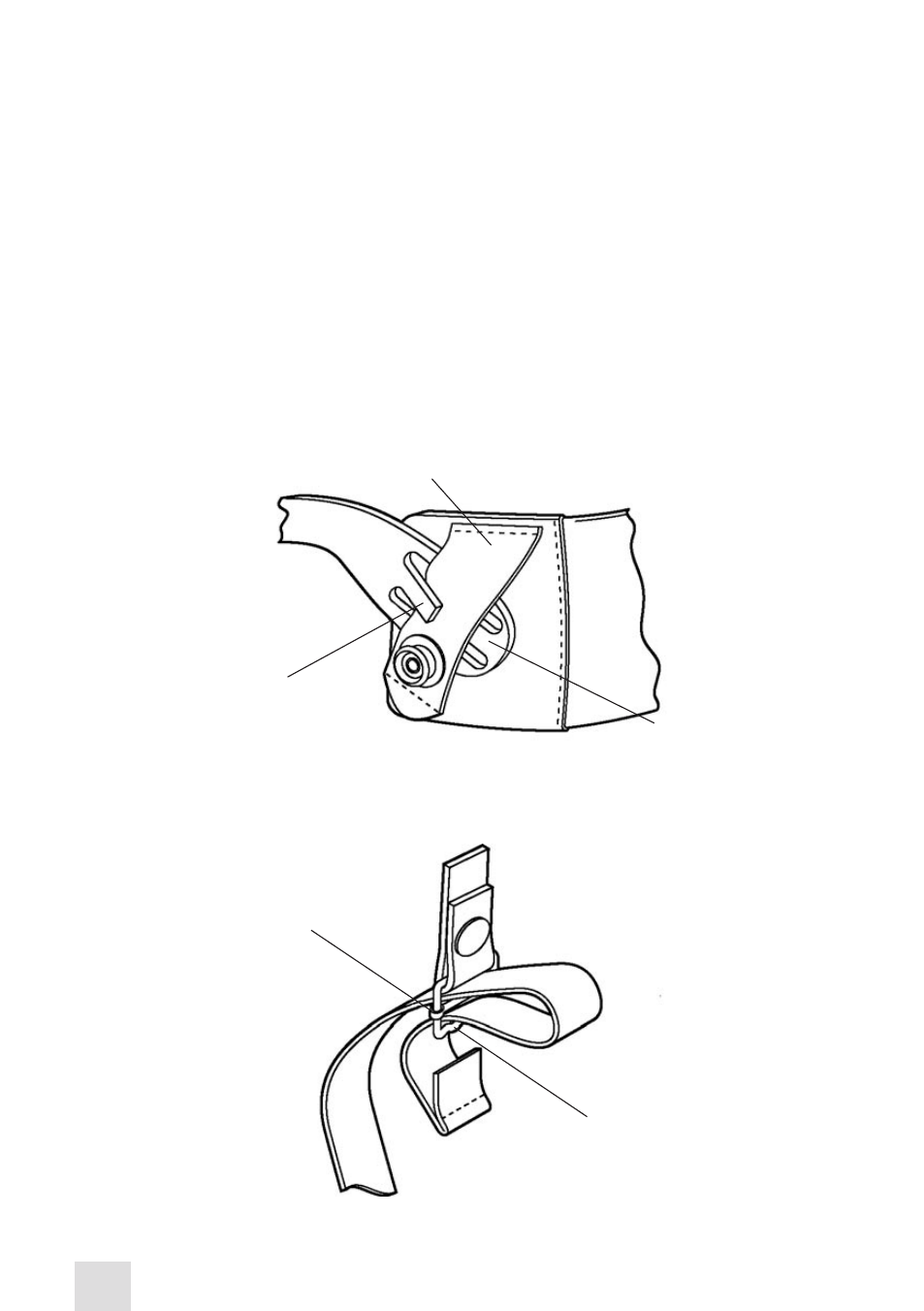

Figure 4-1. Reinstalling the Neck Pad
MOVEABLE
SLIDING BAR
FIXED
SERRATED BAR
Figure 4-2. Threading the Sliding Bar Buckles
