18
3
OPERATING INSTRUCTIONS
3.1 DESCRIPTION AND USE OF OPERATOR’S
CONTROLS AND INDICATORS
NOTE :
The MUNVM is a precision electro-optical instrument, and must be handled carefully. If the
equipment fails to operate, refer to the Troubleshooting Procedures in Chapter 4.
3.1.1. OPERATOR CONTROLS AND INDICATORS
The MUNVM is designed to adjust for different users and corrects for most differences in eyesight. The
controls and indicators for the MUNVM are shown in Figure 3-1, and are described in Table 3-1.
OBJECTIVE
FOCUS
DIOPTER
ADJUSTMENT
POWER
SWITCH
GAIN
CONTROL
EYE RELIEF
ADJUSTMENT
HIGH LIGHT CUT-OFF WINDOW
IR LENS
LATCH

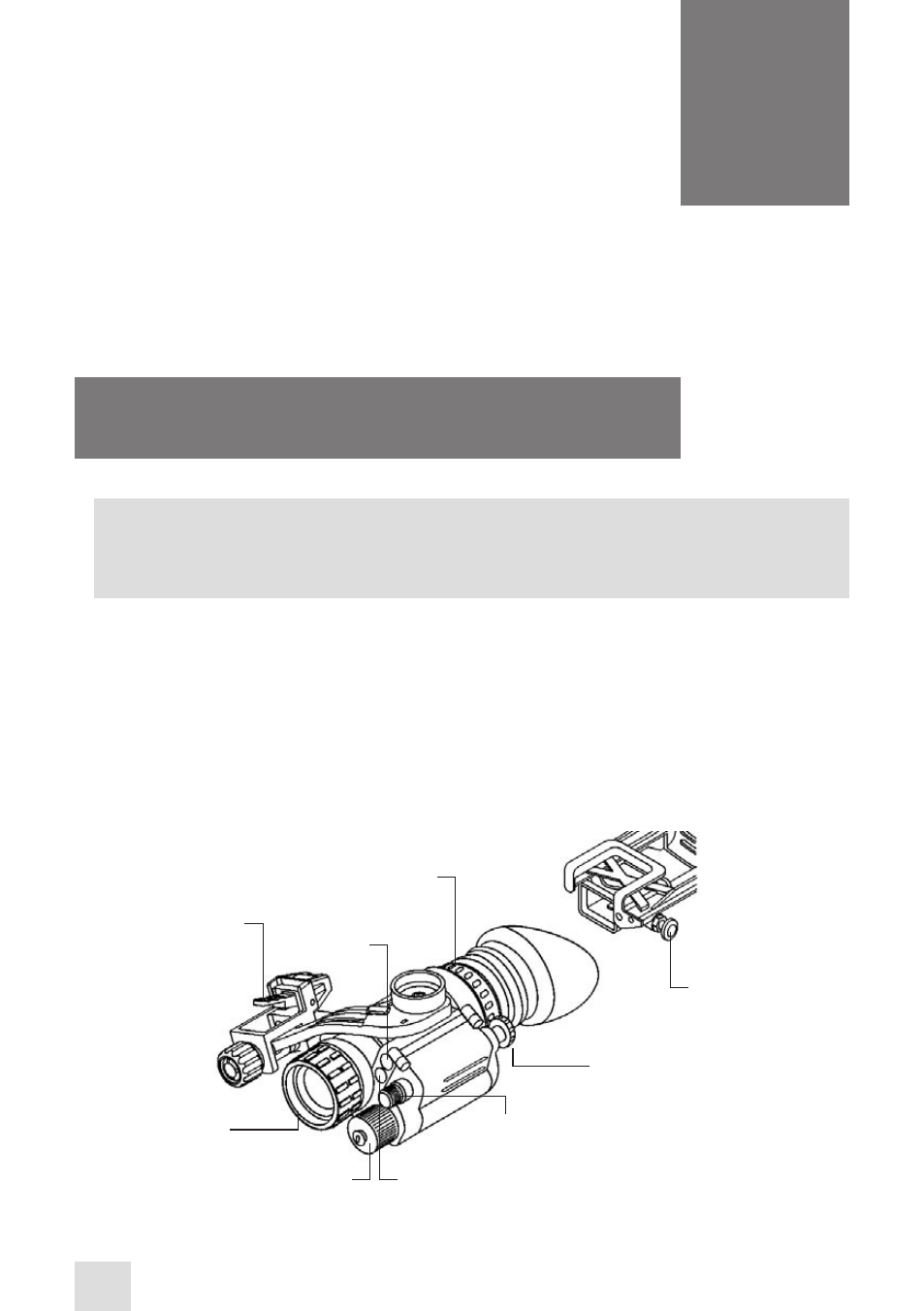

Figure 3-1. Monocular Controls and Indicators
BATTERY POLARITY
INDICATORS (HIDDEN)
