39
Release the latch when the monocular is fully engaged in the socket.
(4) To set your eye relief, press down on the eye relief adjustment (Figure 3-19). Move the monocular
back towards your non-dominant eye until the eyecup is comfortably sealed around the eye.
(5) Turn the monocular ON.
(6) Readjust the vertical adjustment (Figure 3-9) of the headmount until the monocular is properly
aligned with your eye.
NOTE :
The sharpest image will be visible only when the objective lens and eyepiece lens are properly
focused
(7) Rotate the diopter adjustment for the clearest view of the image intensifier screen.
NOTE :
Any readjustment for eye relief requires readjustment of the diopter.
(8) To adjust the eye relief distance, press down on the eye relief adjustment. Slide the monocular either
forward or backward to obtain a full view of the image. Reset the diopter adjustment for the best im-
age.
(9) While observing an object, adjust the objective lens focus (Figure 3-1) until the image becomes
sharp and clear.
3.4.3. HELMET-MOUNTED OPERATION
CAUTION :
Take precaution when using/ handling the helmet mount. Most damage occurs when the hel-
met mount has been left on the helmet when it is not being used. Observe the following pre-
cautions to protect the helmet mount.
HEADMOUNT
SOCKET
LATCH
EYE
RELIEF
ADJUSTMENT

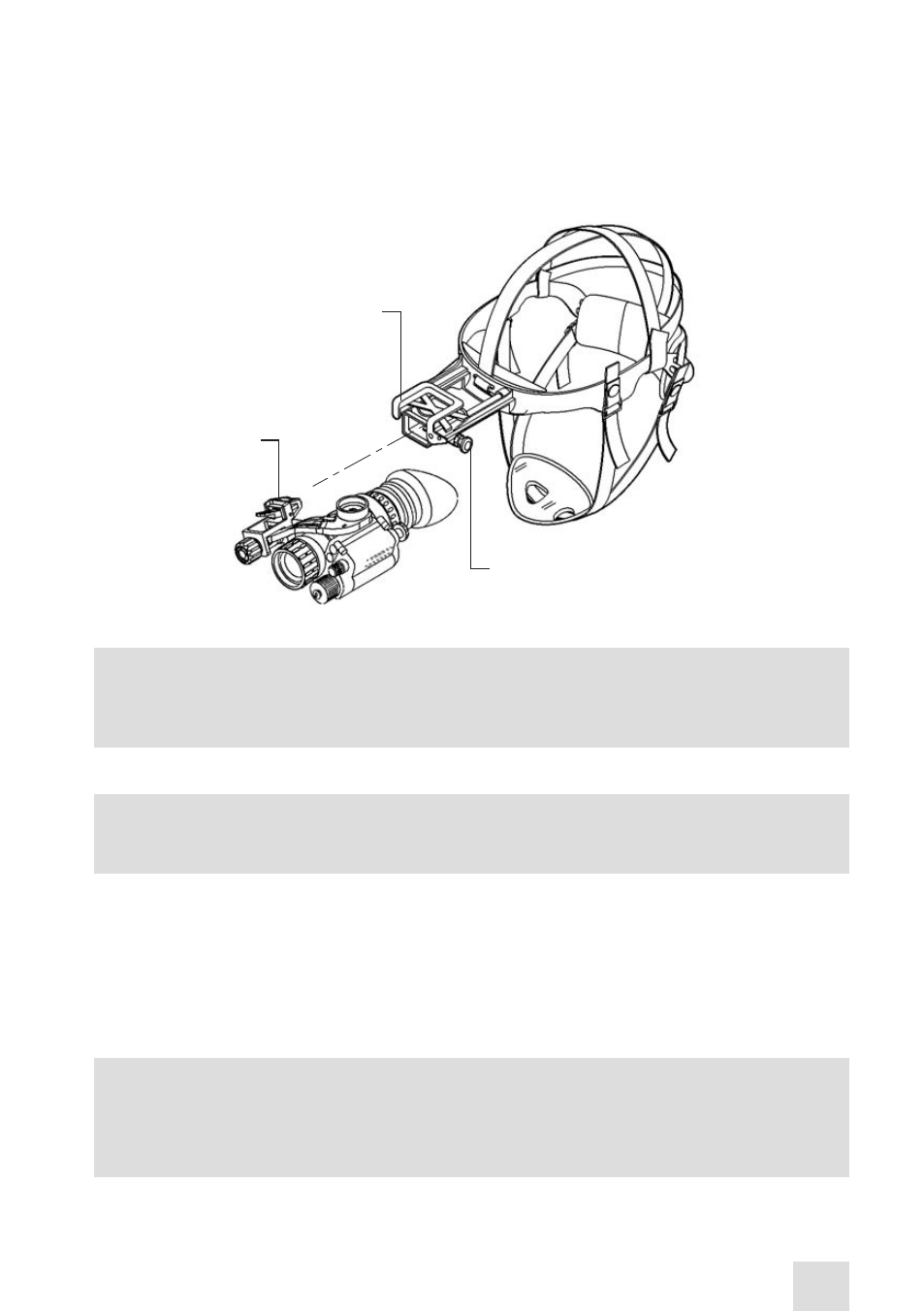

Figure 3-23. Headmount/Helmet Mount Adapter Operation
