(11) Insert the top edge of the mount under the keeper on the helmet mount bracket and rotate it
downward until the latch engages (see Figure 3-13). To release the mount from the helmet bracket,
press the release and pull it forward and down.
3.3.9. INSTALLATION OF TGE HEADMOUNT WITH A PROTECTIVE MASK
Perform the following to put the headmount on with a protective mask.
(1) Place the protective mask on your head per the instructions provided with the protective mask.
KEEPER
HELMET
MOUNT
BRACKET CATCH
BUCKLE
LEVER
STRAP
REAR
SNAP
REAR
MOUNTING
HOLE
REAR
BRACKET
NAPE
STRAP

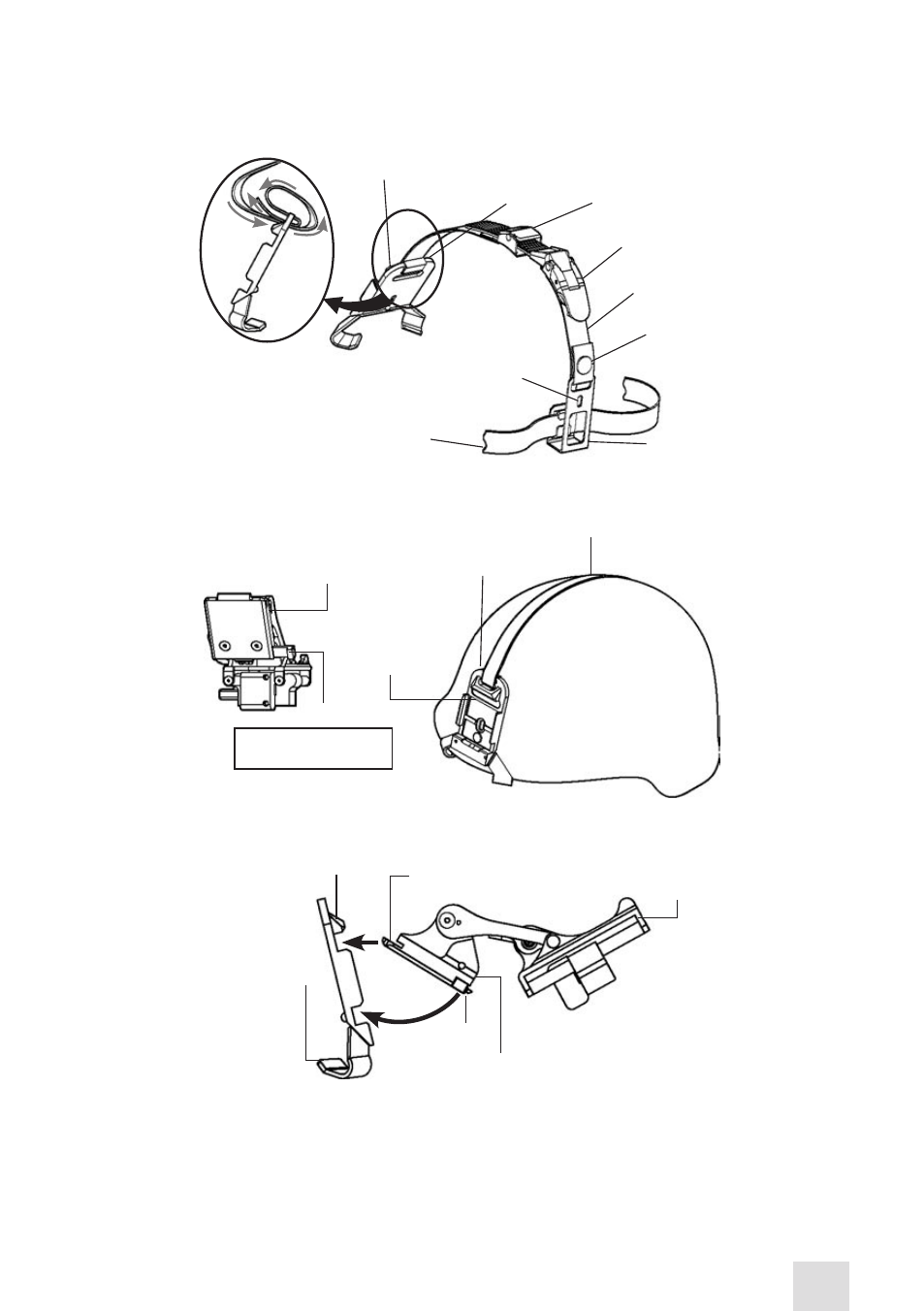

Figure 3-11. Installation of Helmet Mount
TOP EDGE
OF MOUNT
MOUNT
RELEASE
KEEPER
HELMET
MOUNT
BRACKET
STRAP
MOUNT IS ROTATED
90° FOR CLARITY
Figure 3-12. Helmet Mount
TOP EDGE
OF MOUNT
MOUNT
RELEASE
KEEPER
HELMET
MOUNT
BRACKET
LATCH
Figure 3-13. Reassembly of Helmet Mount
