32
NOTE :
After installing the monocular, minor strap adjustments may be necessary to achieve maximum
comfort.
(8) Install the headmount/ helmet mount adapter (refer to paragraph 3.3.7).
(9) Refer to paragraph 3.4.2 for operating procedures.
3.3.7. INSTALLATION OF THE HEADMOUNT/ HELMET MOUNT ADAPTER
To install the headmount/ helmet mount adapter (Figure 2-1) into the monocular, align the thumb-
screw to the hole and tighten it as shown in Figure 3-10. An alignment boss on the headmount/ helmet
mount adapter fits into a groove on the monocular. Ensure that the boss on the adapter fits into the
groove on the monocular.
3.3.8. INSTALLATION OF THE HELMET MOUNT TO A HELMET
((1) Remove the helmet mount from the carrying case. Refer to Figure 3-11 for helmet mount features.
(2) Press the release (Figure 3-12) to remove the mount from the helmet mount bracket.
(3) Verify that the strap is laced onto the helmet mount bracket, as shown in Figure 3-12.
(4) With the catch pushed forward (see Figure 3-12), place the strap over the top of the helmet center
(see Figure 3-13).
(5) Hook the rear bracket (see Figure 3-12) on the center of the back of the helmet. Lay the strap, now
hooked to the helmet mount bracket, over the top of the helmet.
(6) Hook the helmet mount bracket to the center of the front lip of the helmet and hold it in place (see
Figure 3-13).
(7) With the buckle lever open, use the catch to remove the slack in the strap. Close the buckle lever.
(8) Disengage the neck strap latch on the left side of neck strap.
(9) Put the helmet on. Do not fasten the helmet chinstrap.
(10) Hold the neck strap where the strap meets the latch. Tighten the strap until it fits securely, then
install and tighten the helmet chinstrap. The brow of the helmet should be parallel to the ground, and
the helmet should be stable on the head.
LATCH
ALIGNMENT BOSS
(HIDDEN)
ALIGNMENT BOSS
GROOVE
THUMBSCREW

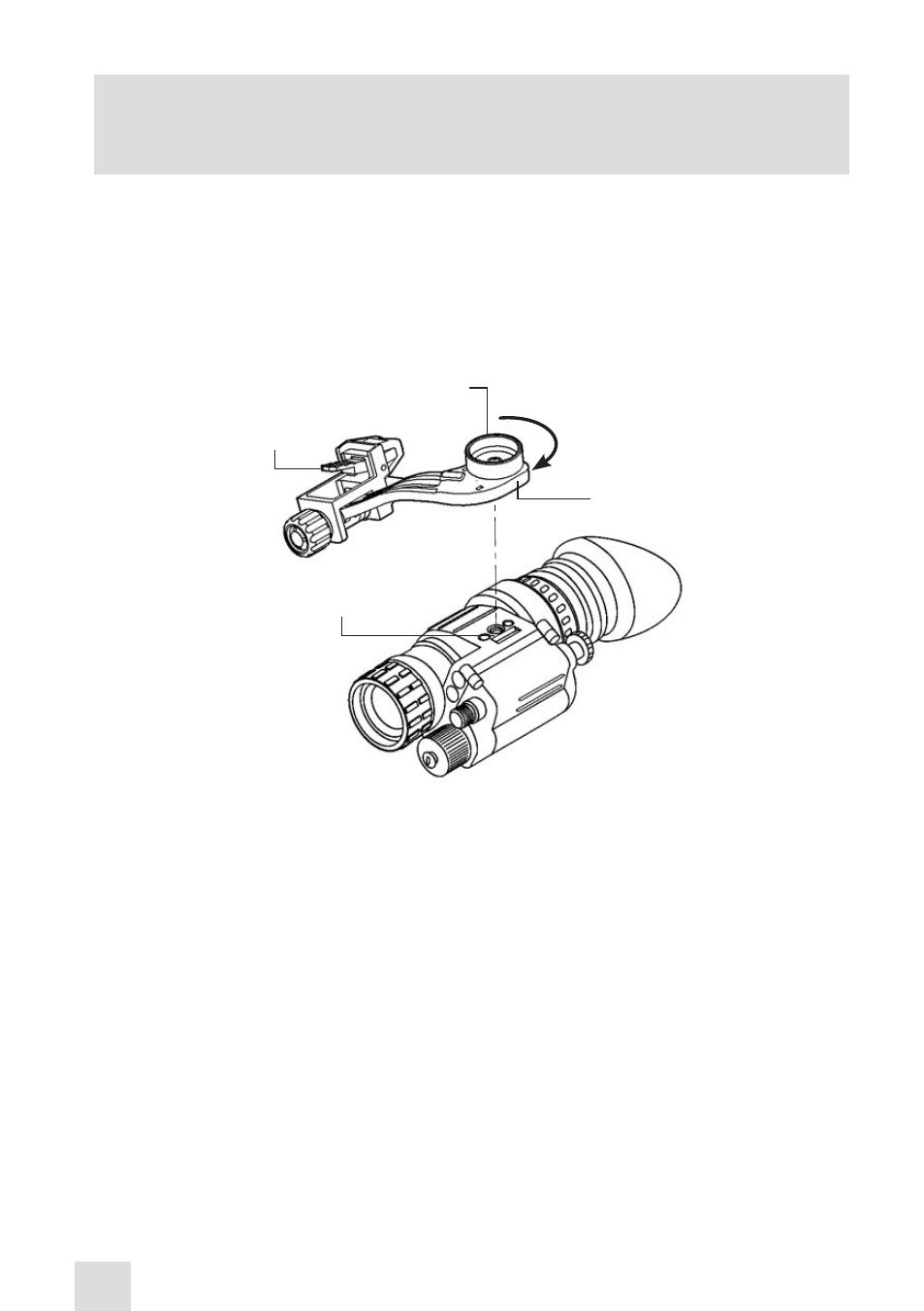

Figure 3-10. Headmount/Helmet Mount Adapter Installation
