24
3.2 CONTROLS AND DISPLAY INDICATIONS
3.2.1 DRONE PRO CONTROLS
CAUTION:
DO NOT force the equipment controls past their stopping points.
The Drone PRO controls are shown in Figures 3-12 and 3-13, and are defined in Tables 3-1 and 3-2. The
ITEM NO. columns of the tables indicate the number used to identify items in the figures.
1
2
3
4

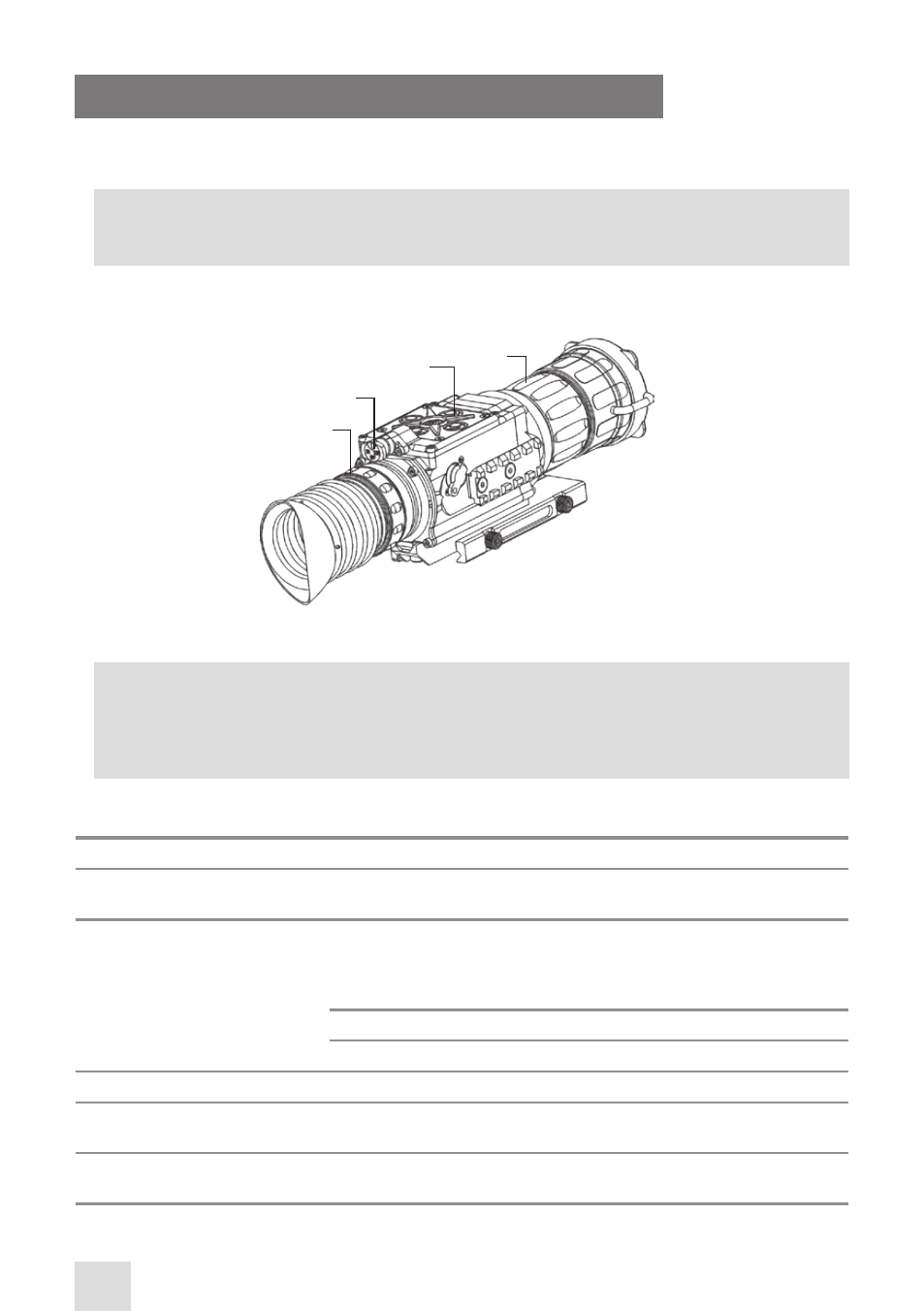

FIGURE 3-12. DRONE PRO CONTROLS
NOTE:
Various display symbols indicating the current operating state of the Drone PRO can be dis-
played permanently, may appear momentarily, or can be set to appear only when a certain
function is activated.
TABLE 3-1. CONTROLS AND INDICATORS
ITEM NO. CONTROL/INDICATOR FUNCTION
1 Eyepiece Focus Ring Adjusts the eyepiece diopter. The total diopter adjustment range is
covered with 2 turns of the ring.
2 Turn-pull Switch Activates the Drone PRO when turned to ON.
NOTE:
You must pull the knob before turning in order to activate either
ON or STB.
Activates standby mode when turned to STB (see note above).
Deactivates the Drone PRO when turned to OFF.
3 Control Panel Buttons Configures operational settings. See Table 3-2 for button functions.
4 Objective Focus Ring Focuses the objective lens. Adjusts for sharpest view of the scene.
The total focus range is covered with three quarter turns of the lens.
— Remote Control Button Activates/deactivates the Drone PRO in standby when held down/
released.
