DESCRIPTION AND DATA
2.1 SYSTEM DESCRIPTION
The Drone PRO consists of two primary parts: a CCD imaging aiming device and a mount. The equip-
ment comes as shown in Figure 2-1, with the mount secured to the body of the device. The figure rep-
resents the both 5x and 10x versions of the Drone PRO.
The Drone PRO is a highly light-sensitive device equipped with an aiming reticle. The Drone PRO sensor
(CCD array) reacts to near-infrared and visible light and converts the received light into electric charges.
The controlling circuit converts the entire contents of the two-dimensional array to a sequence of volt-
ages that are processed into a continuous analog signal. The Drone PRO displays, as a result, a real-time
contrast grayscale images corresponding to the scene projected onto the focal plane of the sensor. The
reticle is digitally inputted in the display, which is in the image plane.
The main optical-electronic components of the Drone PRO include: an objective lens, an eyepiece, a
grayscale CCD camera, a display, a control card, and a button control panel.
The Drone PRO is equipped with a manually adjustable eyepiece and focusable objective lens, and
digital boresight adjustment.
To accommodate individual user needs, the Drone PRO has a variety of digitally controlled options,
including customizable display brightness, reticle pattern, and reticle color.
Information on the current operating state (battery status, reticle running coordinate, etc.) is continu-
ously displayed, making field operation of the Drone PRO simple and convenient.

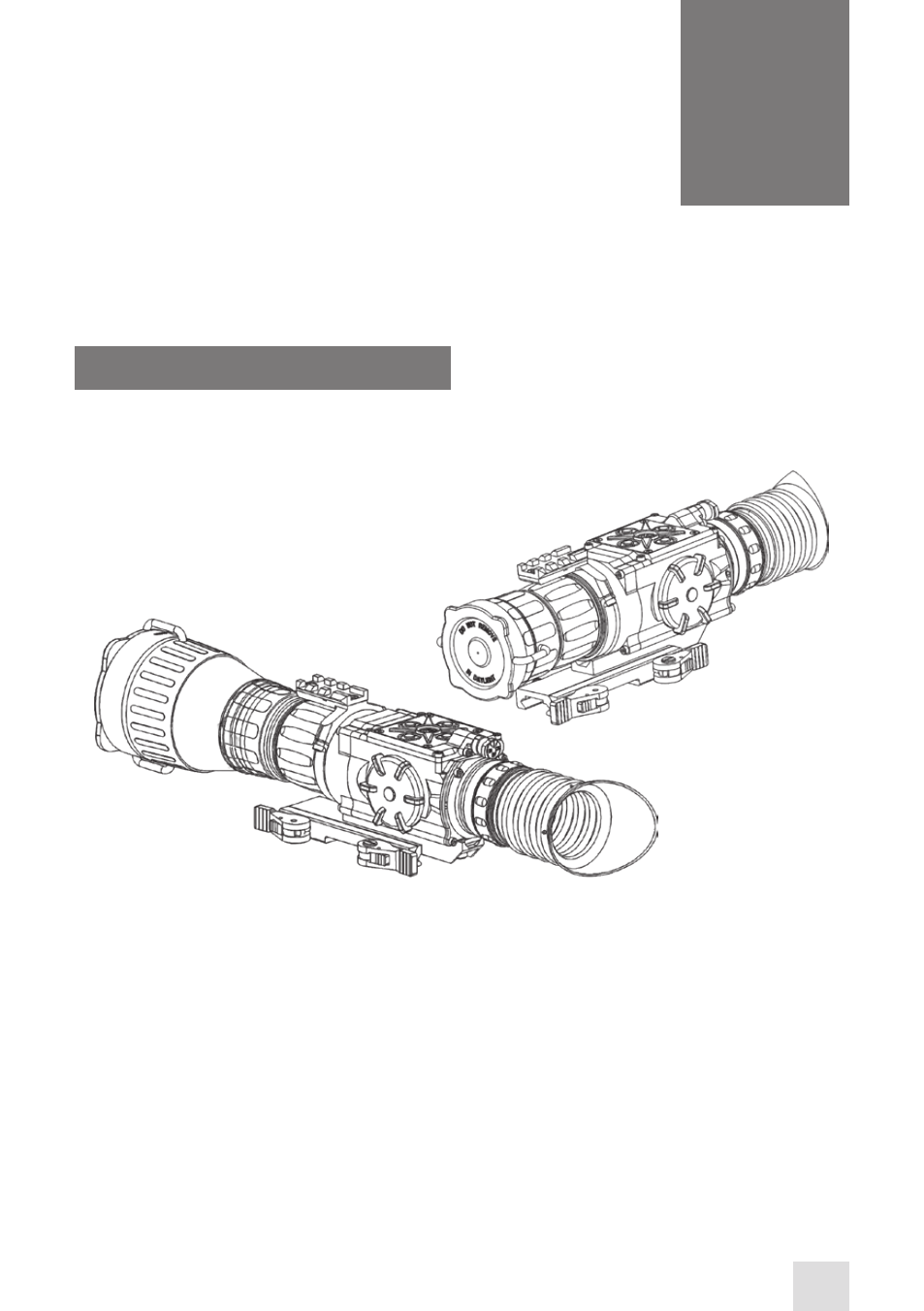

FIGURE 2-1. DRONE PRO DIGITAL NIGHT VISION RIFLESCOPES APPEARANCE
Drone pro 5x
Drone pro 5x-10x
