Operating instructions – Armasight DARDROPBB05PAL1 Drone Pro 5x Digital Night Vision Riflescopes User Manual
Page 18
18
3
OPERATING INSTRUCTIONS
3.1 INSTALLATION AND MOUNTING
3.1.1 BATTERY INSTALLATION
CAUTION:
Before installing a battery, verify that the equipment is off.
Install two CR123A batteries as follows (refer to Figure 3-1):
1. Unscrew the battery cap (not shown) by hand.
2. Open the hinged contact clamping plate (C).
3. Insert the batteries (D) into the battery compartment. Align the polarity symbols on the batteries
with the polarity symbols (A and B) on the body of the Drone PRO.
4. Replace the contact clamping plate (C).
5. Replace the battery cap.
3.1.2 INSTALLING THE DRONE PRO ON A PICATINNY/WEAVER RAIL
WARNING:
When installing the equipment on a weapon, verify that the weapon is clear and that the safety
is on before proceeding.
NOTE:
Zero the weapon prior to installing and bore sighting the Drone PRO.
A
B
C
D

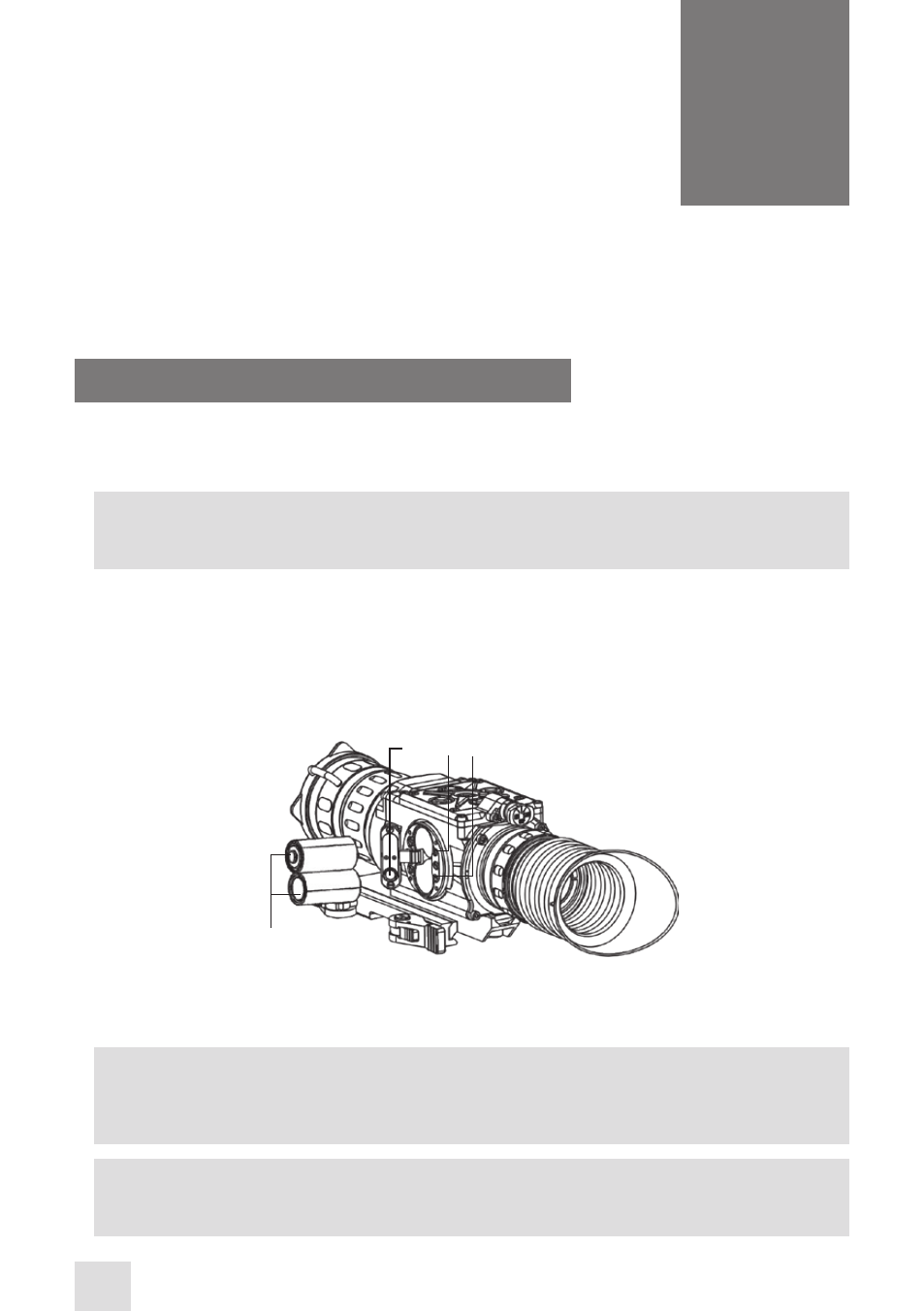

FIGURE 3-1. BATTERY INSTALLATION
