2.3 STANDARD COMPONENTS
The Drone PRO standard components are shown in Figure 2-3 and listed in Table 2-8.
The ITEM NO. column indicates the number used to identify items in Figure 2-3.
1
2
3
4
5
6 7 8

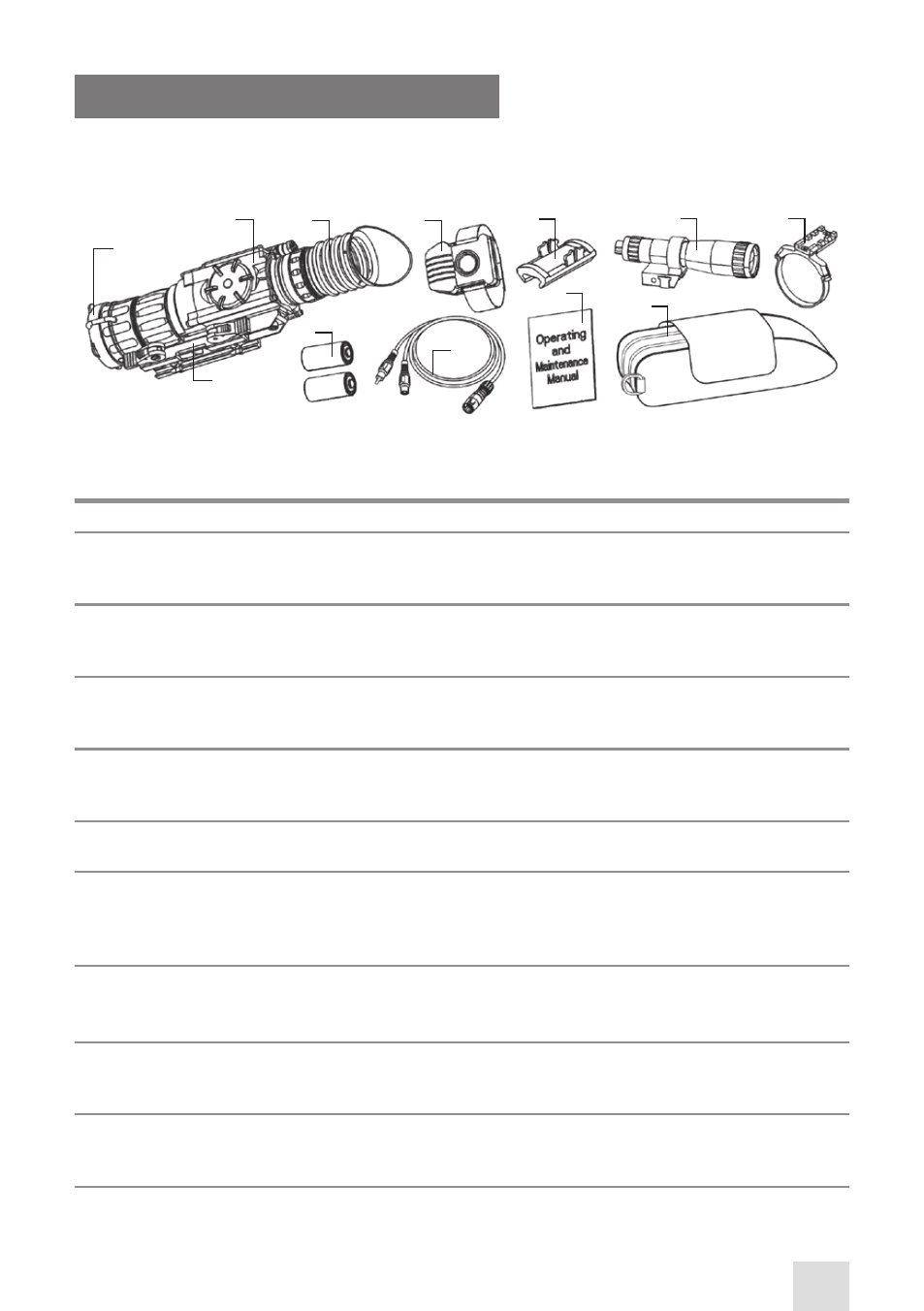

FIGURE 2-3. DRONE PRO STANDARD COMPONENT
10
9
11
12
A
B
TABLE 2-8. DRONE PRO STANDARD COMPONENTS
ITEM NO. DESCRIPTION qUANTITY
1 Armasight Drone PRO Digital Night Vision Riflescope
A Digital Night Vision aiming device. Comes fully assembled with a quick-release Picat-
inny/Weaver mount. 1
2 Objective Lens Cap
Protects the objective lens from dirt and mechanical damage, and provides protection
from light overload. Comes attached to the objective lens. 1
3 Eye-cup
A rubber cup used to protect the eyepiece as well as provide comfort for the operator.
Comes attached to the eyepiece. 1
4 Mount
A double lever-lock quick release mount used to install the Drone PRO on a Picatinny/
Weaver rail. Comes attached to the Drone PRO. 1
5 CR123A Lithium Battery
Batteries are used to power the Drone PRO. 2
6 Advanced Wireless Remote Control (AWREC)
Allows the user to operate the Drone PRO in short-time activation mode. Ensures quick
and silent activation/deactivation of the equipment. Comes with two CR2016 (3V) bat-
teries installed. 1
7 Picatinny Adapter for Advanced Wireless Remote Control
Allows the advanced wireless remote control to be installed on a weapon’s Picatinny/
Weaver rail. 1
8 IR810 Detachable Long Range Infrared Illuminator
Long-range infrared illuminator equipped with a Weaver mount. Should be used when
there is little to no ambient light. Comes with one CR123A (3V) battery included. 1
9 Platform Ring
A dedicated mount with a Picatinny/Weaver rail, used to install on the top of the Drone
PRO and additional equipment, such as the Armasight MCS Miniature Collimating Sight. 1
