4.4.3 BATTERY REMOVAL AND REPLACEMENT
Refer to Parts 3.1.1 and 3.1.2 for the CO-MINI and IR850 battery installation procedure, respectively.
Replace the remote control batteries as follows:
1. Using a screwdriver, unscrew the four screws (A, Figure 4-6) that affix the cover to the bottom of the
unit. Remove the cover.
2. Replace the batteries with two new ones (CR2016, 3V). Stack the batteries in its place under the leaf
contact spring with the minus contacts directed towards the electric board, as the minus sign etched
on the board indicates.
3. Replace the cover and retighten the screws (A).

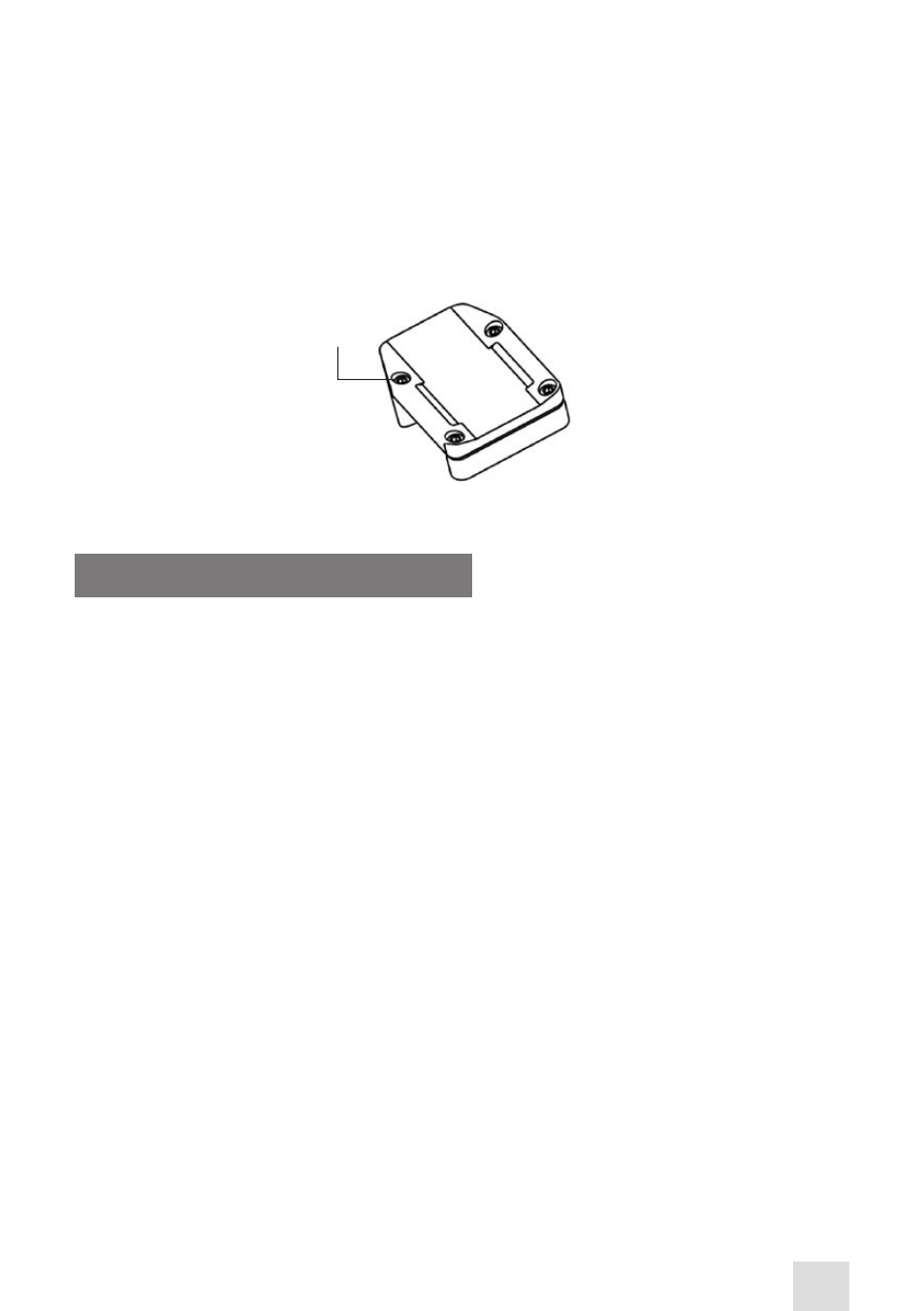

FIGURE 4-6. REMOTE CONTROL UNIT. BATTERY INSTALLATION
A
4.5 RETURN INSTRUCTIONS
For service, repair or replacement, please email: [email protected].
To assist the Service Representative (SR) with determining whether or not an item is repairable, please
provide the following information:
1. Serial Number of the defective item. This is engraved on the CO-MINI cover (3, Figure 2-2).
2. Thorough description of the malfunction, defect or damage.
3. An explanation of how the malfunction, defect or damage occurred, if known.
If the SR determines that the item is under warranty or should be returned for repair, a Return
Material Authorization number (RMA#) will be provided. RMA can be obtained via e-mail to
[email protected] or via phone by calling Armasight Customer Service at (888)959-2259 Ext. 2 or
via fax (888)959-2260.
When returning the CO-MINI for service or repair, the following procedures should be done to prevent
any additional damage:
1. Verify that the CO-MINI is free of all contaminants, such as dirt or any other foreign material.
2. Remove the battery.
3. Place the cap over the objective lens.
4. Screw the cap into the output lens thread.
5. Place the CO-MINI and its accessories into the shipping case.
6. Place the CO-MINI and a copy of the test report or detailed description of the failure in a suitable
packing/ shipping container. Mark the package with the RMA#. Ship using a fast, traceable service.
Shipping must be prepaid by the Customer.
