The automatic shut-off function preserves battery life in case the CO-MINI is inadvertently activated.
The CO-MINI is powered by a single AA or CR123A battery.
The CO-MINI uses a bi-color LED indicator to show the operator when the bright light protection sys-
tem is activated, or to indicate a low battery.
The Picatinny/ Weaver mount has an adjustable lever-cam clamping device for easy, quick and reliable
mounting and removal of the CO-MINI.
The CO-MINI is shown in Figure 2-2. The ITEM NO. column in Table 2-1 indicates the number used to
identify items in Figure 2-2.

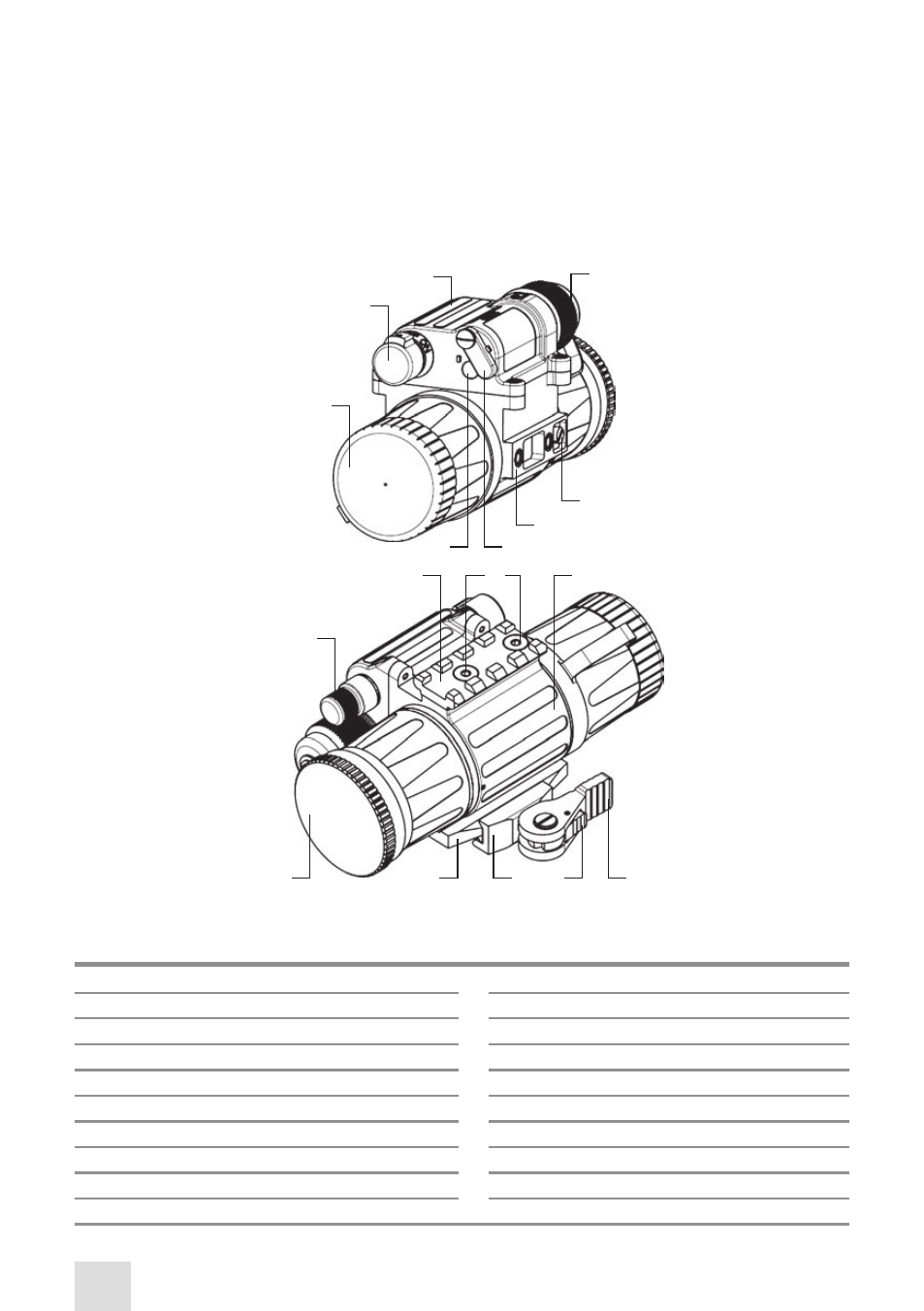

FIGURE 2-2. CO-MINI NIGHT VISION CLIP-ON DEVICE
1
2
3 4
5
6
7 8
9
10 11
13 14 15 16 17
12
TABLE 2-1. SYSTEM DESCRIPTION
ITEM DESCRIPTION ITEM DESCRIPTION
1 Objective Lens Cap 10 Top Weaver Rail
2 Turn-Push Switch 11 M4×8 Screw
3 Wired Cover 12 Main Body
4 Battery Cap with Adapter 13 Cam Lever
5 Purge Screw 14 Lever Holder
6 Seating Rail 15 Clamp
7 Pivoted Shutter 16 Mount
8 Photoreceiver 17 Output Lens Cap
9 Gain Control Knob
