26
3.2.2 IR-850 CONTROLS
The IR850 controls are shown in Figure 3-15 and defined in Table 3-2. The ITEM NO. column indicates the
number used to identify items in Figure 3-15.
TABLE 3-2. IR850 CONTROLS
ITEM NO. CONTROL/INDICATOR FUNCTION
1 Power Switch Switches the IR850 on/ off and adjusts for radiated power. Four
‘on’ positions are located between two ‘off’ positions, and are each
marked with a different-sized spot. The larger the spot, the greater the
radiated power.
2 Lens Adjusts the IR beam divergence. Adjustment range is covered with
approximately one turn of the lens.
3.3 OPERATING PROCEDURES
3.3.1 OPERATING THE CO-MINI
Operating procedures should be performed in dark or nighttime conditions only.
CAUTION:
Use of the CO-MINI in brightly lit conditions may damage the image intensifier tube.
1. Verify that the battery is installed as required.
2. Perform a visual estimation of the illumination level in the viewing area, using the reference data
presented in Appendix A. You can begin operating the CO-MINI if the illumination level is less than
1 lx.
3. Remove the objective lens cap and place it over the lens’ housing.
CAUTION:
Before removing the objective lens cap, verify that the photoreceiver is open.
4. Verify that there are no bright light sources in the CO-MINI’s field of view. Turn the device on. After a
slight delay, a green glow will appear in the day scope’s output lens.

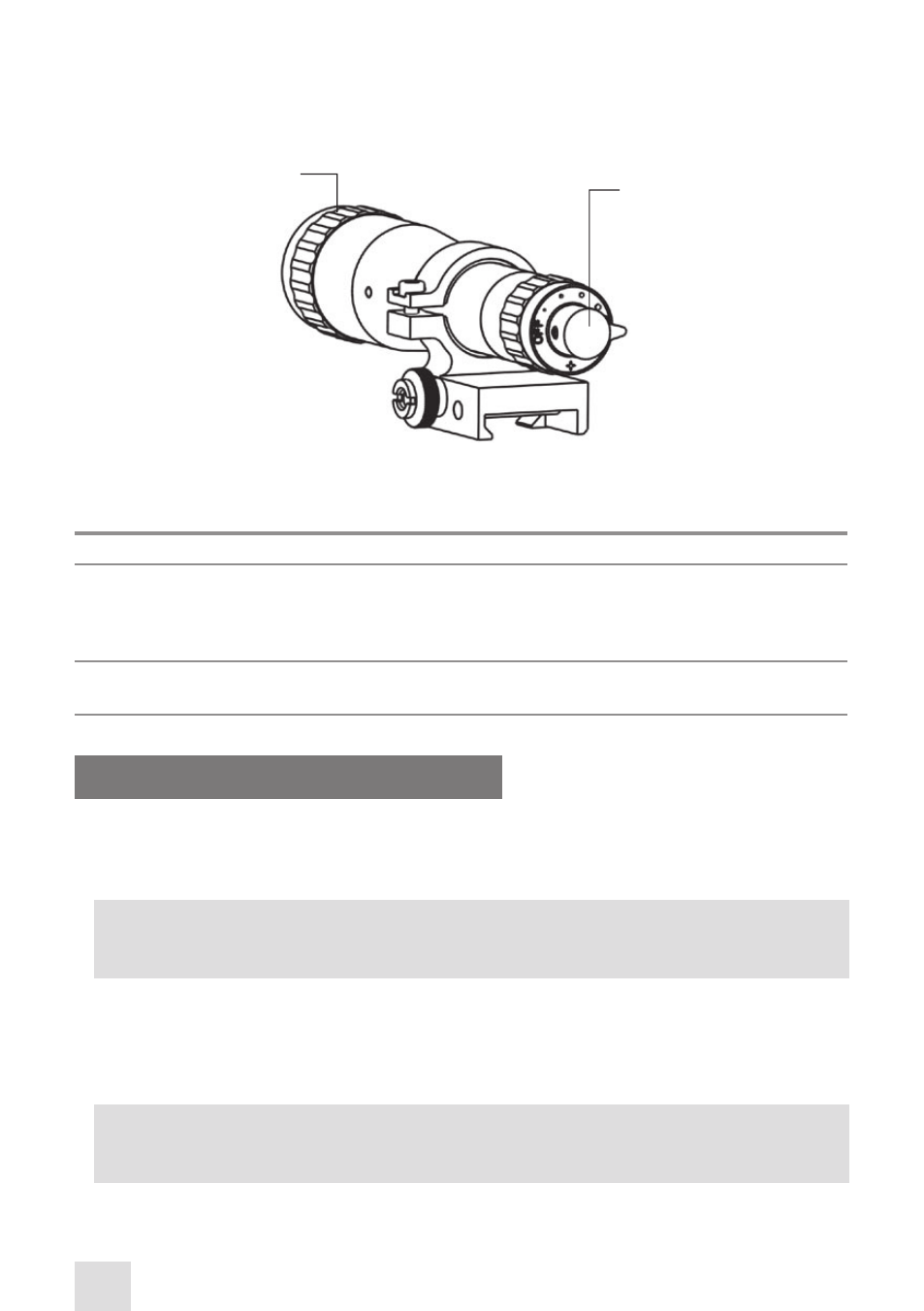

FIGURE 3-15. IR850 CONTROLS
B
A
