2.3 STANDARD COMPONENTS

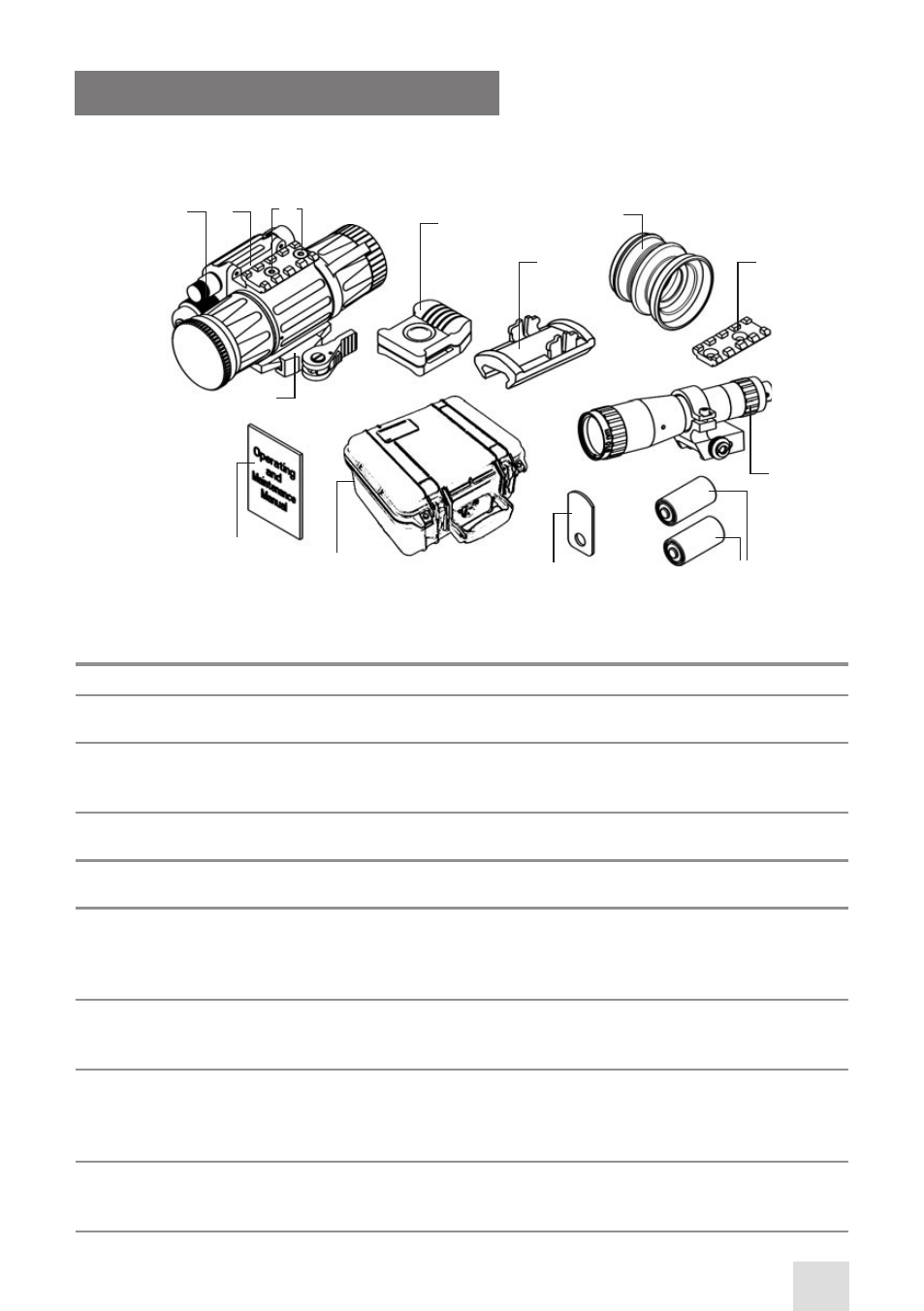

The CO-MINI standard components are shown in Figure 2-3 and listed in Table 2-9.
The ITEM NO. column indicates the number used to identify items in Figure 2-3.
FIGURE 2-3. STANDARD COMPONENTS
1 2
2
3
4
5
7
9 10
11
12
8
6
TABLE 2-9. STANDARD COMPONENTS
ITEM NO. DESCRIPTION qUANTITY
1 CO-MINI Night Vision Clip-On Device
A night vision device intended for use in conjunction with a day scope. 1
2 Mount for IR illuminator #60
A Weaver-type rail mounted to the CO-MINI. Allows the IR850 or other additional
equipment to be installed on the CO-MINI. 2
3 М4×8 Flat Head Socket Cap Screw
Used for attaching the mount and Weaver rail to the CO-MINI. 4
4 Mount
A quick-release mount used to install the CO-MINI on a Picatinny/ Weaver rail. 1
5 Advanced Wireless Remote Control
Wireless control used to operate the CO-MINI in short-time activation mode. Ensures
quick and silent CO-MINI activation/deactivation. Delivered with two CR2016 (3V)
batteries installed. 1
6 Picatinny Adaptor for Advanced Wireless Remote Control
A adaptor mounted to the Picatinny rail of an weapon. Allows the Advanced Wire-
less Remote Control to be installed on the weapon. 1
7 Light Suppressor 1
A rubber cup mounted to the CO-MINI output lens to reduce light scattering. Used
when installing the CO-MINI in front of day scopes with lens housing outer diameter
over the range 25.4 to 42.0 mm. 1
8 IR850 Detachable Long Range Infrared illuminator
Long-range infrared illuminator. Should be used when there is little to no ambient
light. 1
