Figure 25. cos queue mapping – Asus GigaX2008EX User Manual
Page 34
24
GigaX2008EX L2 Managed Switch User Manual
packet is sent from the Queue1 for every two that are sent from the Queue2.
By using this scheduling, low-priority queues have the opportunity to send
packets even through the high-priority queues are not empty. The fixed
weights are 1,2,4,8.
Click
OK to save the configuration. Click on Reload to refresh the settings to
current value. To make the configuration effective, go to
Save Configuration
page, then click
Save.

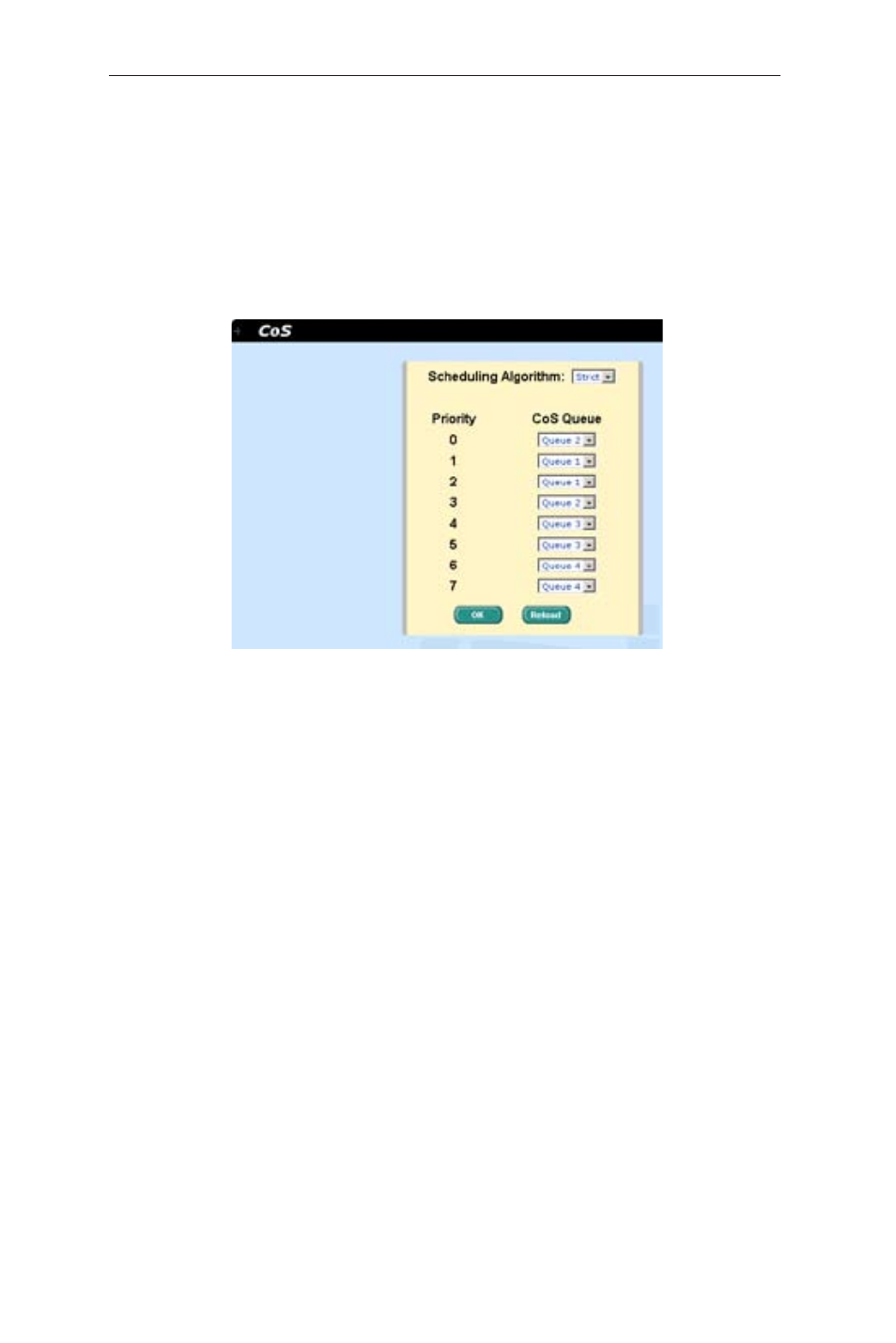

Figure 25. Cos queue mapping
