Page 23
13
GigaX2008EX L2 Managed Switch User Manual

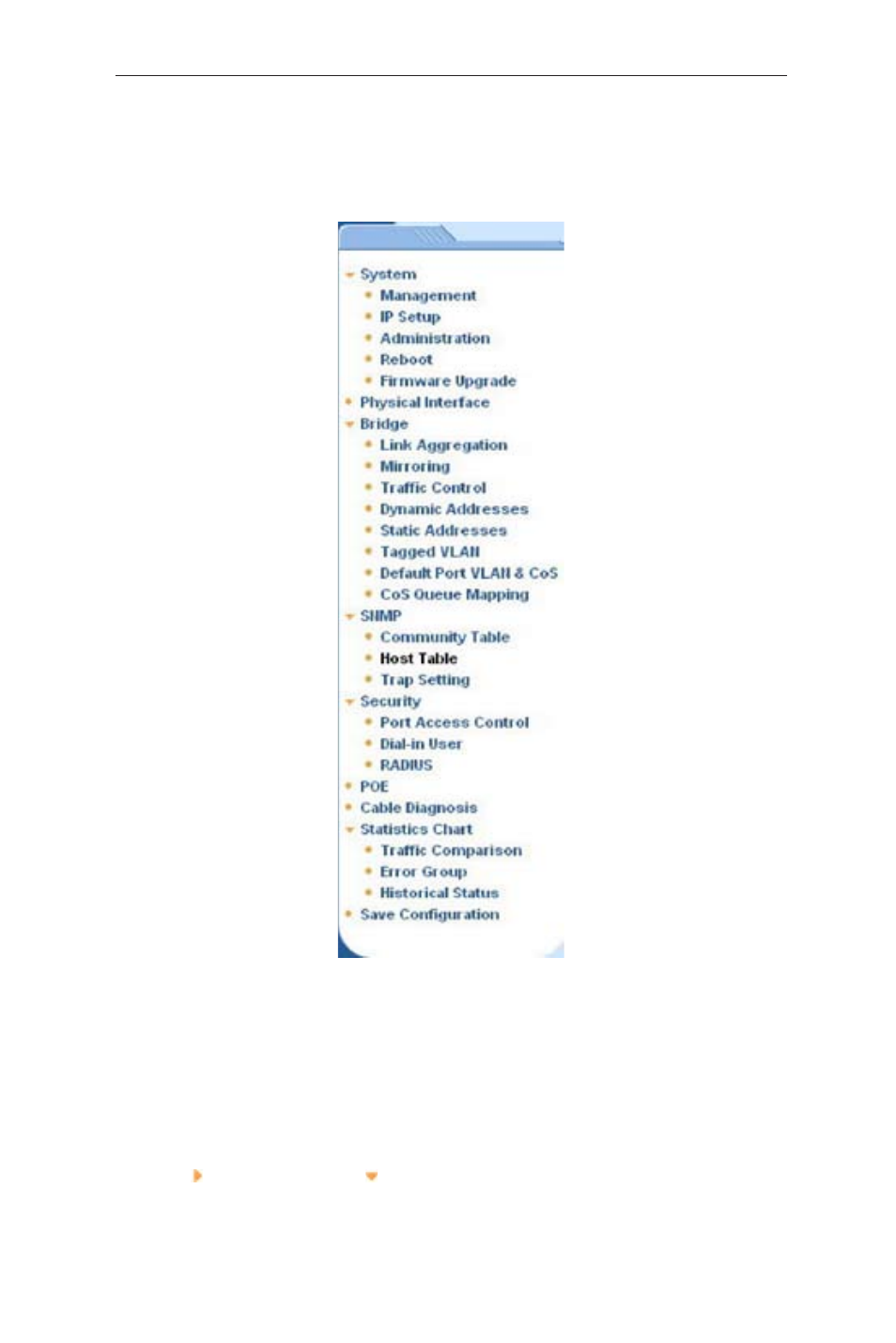

Figure 11. Expanded menu list
The right frame displays configuration pages or graphics for the statistics. See
section 4.3 for details.
4.2.1 Menu navigation tips
• To expand a group of related menus, click on the corresponding group name.
The sign will change to after expansion.
The left frame, a menu frame as shown in Figure 11, contains all the features
available for switch configuration. These features are grouped into categories,
e.g. System, Bridge, etc. You can click on any of these to display a specific
configuration page.
