GigaX2008EX L2 Managed Switch User Manual
2.2
Front Panel
The front panel includes eight 10/100Base-TX RJ-45 port, one 10/100/1000Base-T
port, one SPF GBIC slot and LED indicators that show the system,fan, and port
status.

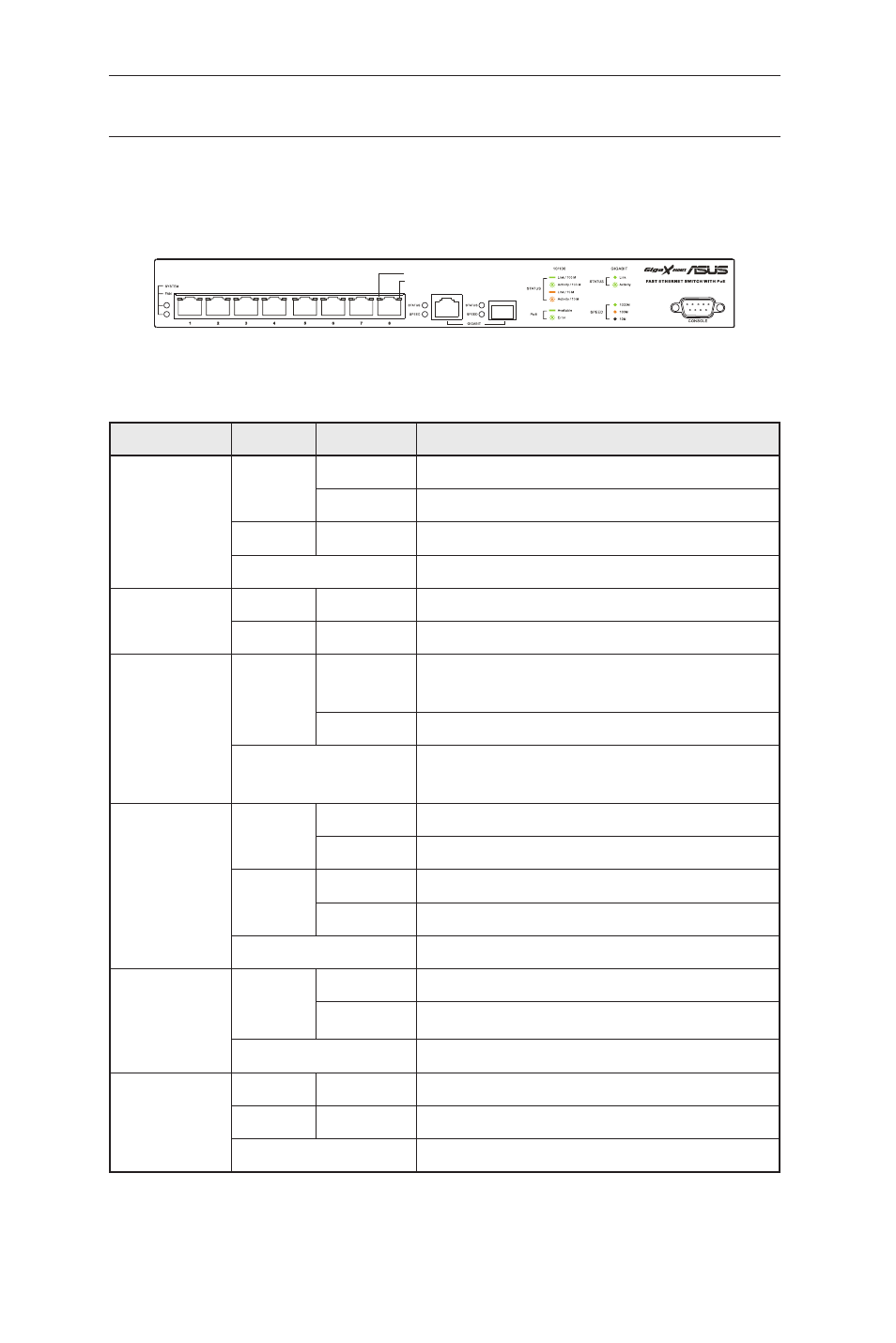

Figure 2. Front panel
Table 1. Front panel labels and LEDs
Label
Color
Status Description
SYSTEM
Green
ON
Unit is powered on
Flashing Self-test, initiating, or downloading
Amber
ON
Abnormal temperature or voltage
OFF
No power
FAN
Green
ON
The fan is working properly
Amber
ON
The fan stops
PoE
Green
ON
PD (Powered Devices) is connected and
ready to provide power
Flashing PoE is off due to a fault on the port
OFF
PD is not connected or not a valid power
device
10/100 port
status
Green
ON
Link is present at 100Mbps
Flashing Transmitting data
Amber
ON
Link is present at 10Mbps
Flashing Transmitting data
OFF
No Ethernet link
GIGABIT
port status
Green
ON
Link is present
Flashing Transmitting data
OFF
No Ethernet link
GIGABIT
port speed
Green
ON
1000Mbps (RJ-45 or SFP)
Amber
ON
100Mbps (RJ-45)
OFF
10Mbps (RJ-45)
Status
PoE
